Varenummer: FSW-0513
Mere information
-

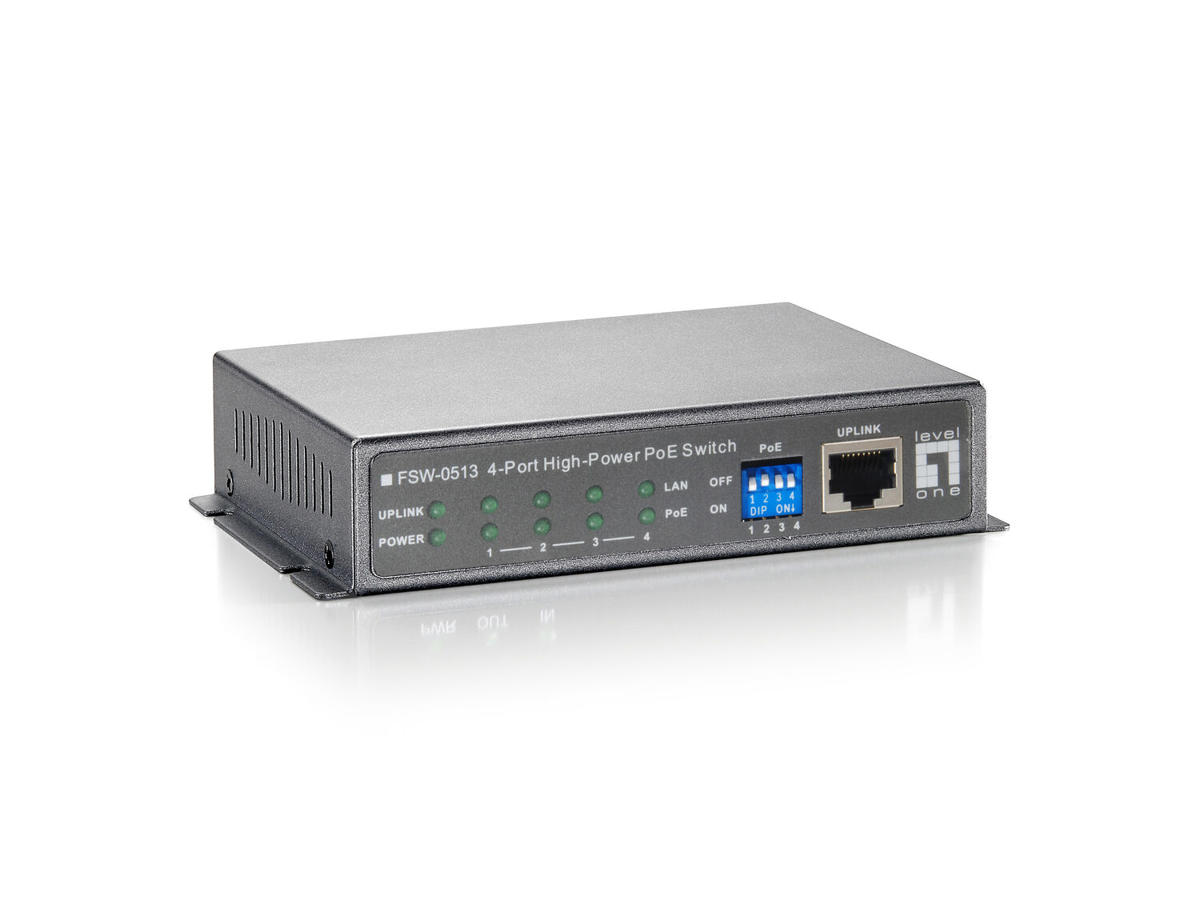

FSW-0513(Z) is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513(Z) is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.
With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 52 Watts to a single port. FSW-0513(Z) is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513(Z) in a 19” chassis (POC-6000) for a large-scale rack-mount PoE solution.
Power Protection
FSW-0513(Z) supports power protections as OVP (Over Voltage Protection), OCP (Over Current Protection), robust short-circuit protection and surge protection.
- Provides flexibility of 4 x 10/100BASE-TX PoE ports
- IEEE 802.3af PoE compliant to simplify deployment and installation
- PoE on/off control per port by dip switches
- Auto-detection and protection of non-standard PoE devices
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 120W, up to 52W per port -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Understøttede kabeltyper Cat5 Fuld duplex Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 1024 entries Switch kapacitet 1 Gbit/sek. Opbevar-og-frem Ja Pakke videresendelsesrate (100 Mbps) 14800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort, Grå LED-indikatorer Uplink, LAN, PoE, Strøm Tænd-/slukkontakt Ja Præstation Bufferstørrelse 48 KB Strømstyring Udgangsspænding 56 V Udgangsstrøm 2,15 A Strømforbrug (typisk) 120 W Strømbeskyttelsesfunktioner Overstrøm, Kortslutning Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 1 Power over Ethernet (PoE) effekt pr. port 52 W Total Power over Ethernet (PoE) 120 W Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 120 mm Dybde 90 mm Højde 28 mm Vægt 800 g Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 232 mm Pakkedybde 148 mm Pakkehøjde 80 mm Godkendelser Certificering FCC, CE Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
