Varenummer: FSW-0508TX
Mere information
-

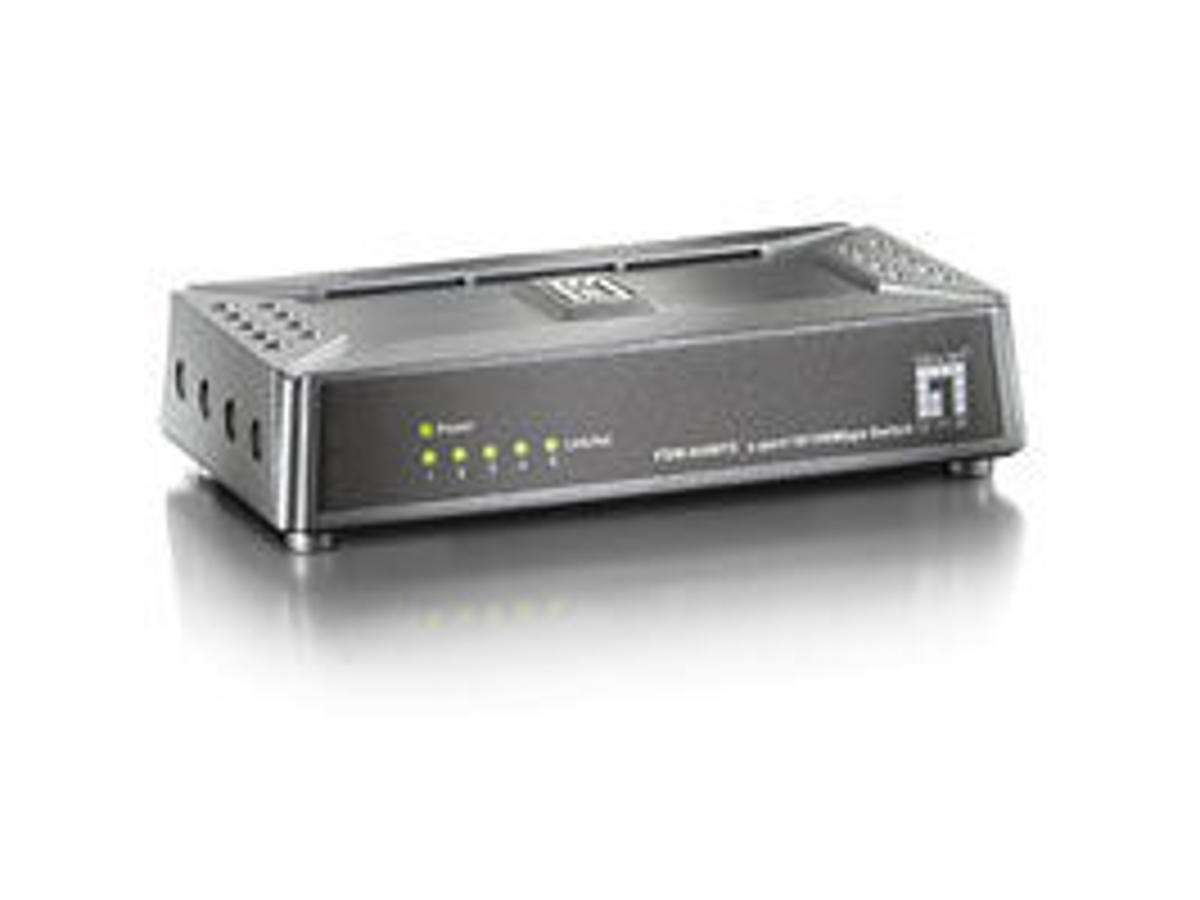

LevelOne’s FSW-0508TX 5-Port Fast Ethernet Switch combines efficient technology with a unique design. This switch is equipped with 5 10/100Mbps ports capable of reaching the highest bandwidths up to 200Mbps for each port to provide workstations with a congestion-free data pipe for simultaneous access to the server.
Each port of the FSW-0508TX supports an auto-negotiation function that can automatically set the best possible bandwidth when a connection is established with another network device. The store-and-forward switching mechanism ensures that no error packets occur and provide maximum efficiency and stability. With Auto-MDIX function, this switch is expandable by cascading two or more switches together by uplinking directly without cable selection hassle.
Its small and compact size is specially designed to fit in limited-space locations for SOHO or home usage. Users can immediately access any needed features simply by attaching the cables and turning on the power. For instant error detection, the switch is equipped with a full range of LEDs to help you monitor and troubleshoot problems on your network.
- Provides flexibility of 5x 10/100BASE-TX ports
- 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 2K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Magnetic base for easy placement
- Compact, lightweight design -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Dataoverførsel MAC adresselabel 2048 entries Switch kapacitet 1 Gbit/sek. Opbevar-og-frem Ja Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort, Grå LED-indikatorer Aktivitet, Link, Strøm Præstation Bufferstørrelse 48 KB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Udgangsspænding 5 V Udgangsstrøm 1 A Strømforbrug (typisk) 2,5 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 125 mm Dybde 69 mm Højde 30 mm Emballage indhold Hurtig start guide Ja Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 120 mm Pakkedybde 100 mm Pakkehøjde 156 mm Pakkevægt 400 g Godkendelser Certificering FCC, CE, RoHS Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 85176990
