Varenummer: 57082913101
Mere information
-

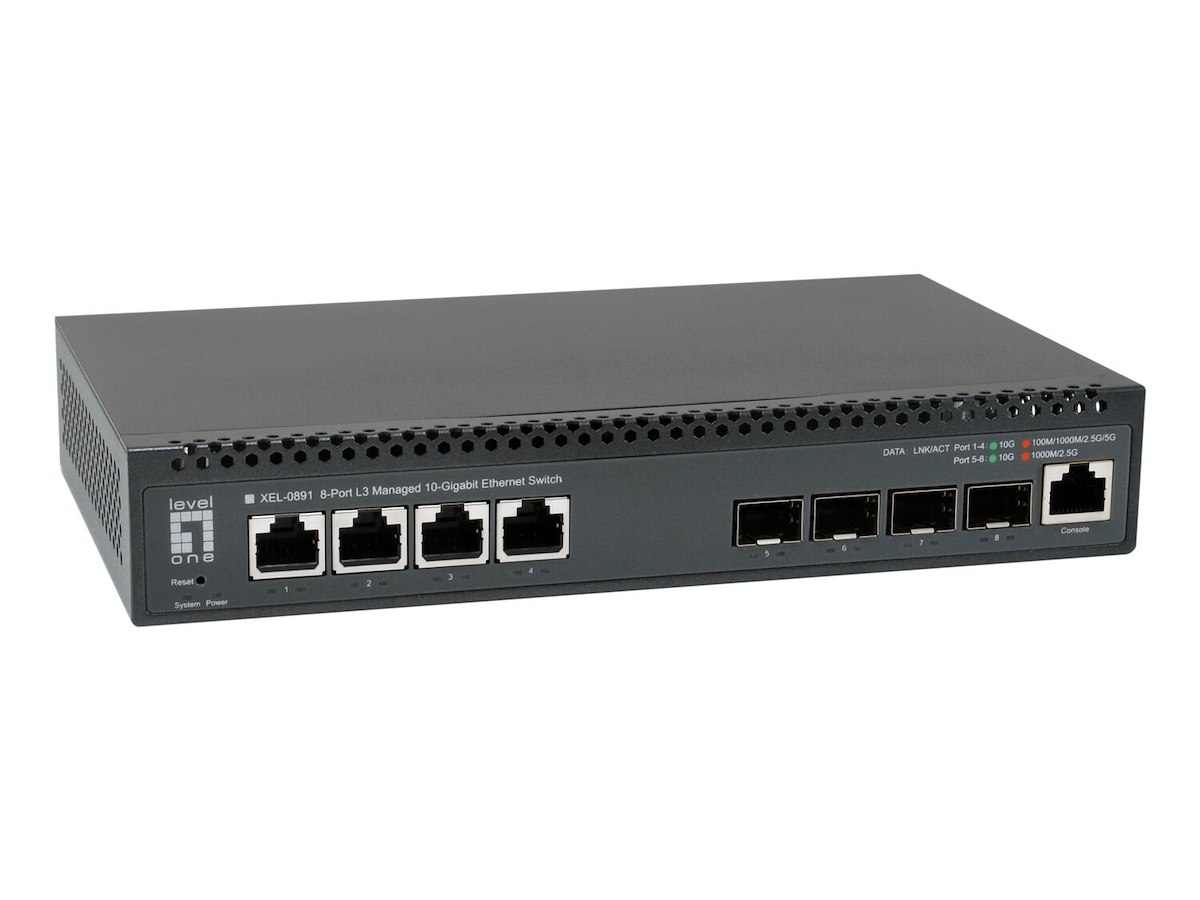

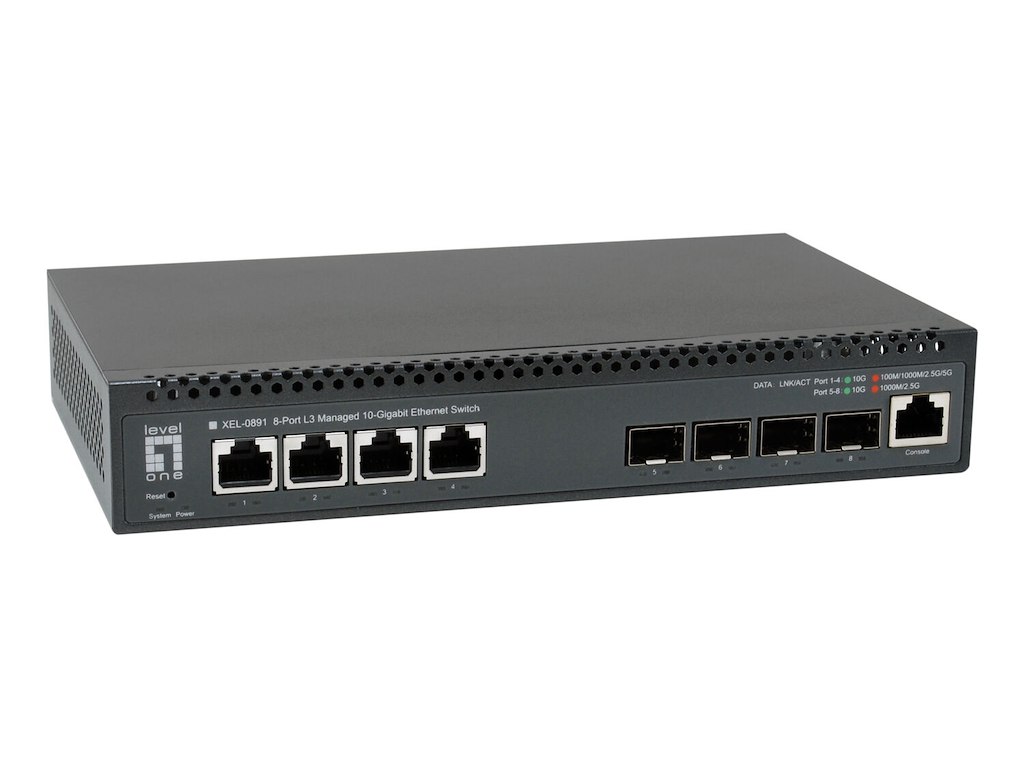

The LevelOne XEL-0891 is a high-performance Layer 3 Managed 10-Gigabit Switch designed for SMB cores, high-end workgroups and edge aggregation. It combines four 100M/1G/2.5G/5G/10G adaptive RJ45 ports with four 1G/2.5G/10G SFP+ uplinks, delivering flexible copper and fiber connectivity for servers, NAS, access switches and wireless infrastructure.
With a non-blocking switching fabric of 160 Gbps and forwarding performance up to 119.04 Mpps, the XEL-0891 maintains wire-speed throughput on every port, even with jumbo frames and mixed traffic loads. This makes it ideal for bandwidth-intensive applications such as virtualization, 4K/8K media workflows, backup, and high-speed storage access.
The switch supports a rich set of Layer 3 routing capabilities, including IPv4/IPv6 static routes, RIP v1/v2, OSPF v2 and BGP-4, enabling dynamic, scalable routing between VLANs and upstream networks. Up to 4K IEEE 802.1Q VLANs, with QinQ, private, voice, guest and subnet-based options, allow precise traffic segmentation for multi-tenant, departmental or service-based designs.
To protect critical assets, the XEL-0891 integrates advanced security features such as 802.1X port-based authentication, MAC and port limiting, Access Control Lists (ACLs) and DoS attack protection. These controls help prevent unauthorized access, mitigate threats at the edge and enforce consistent security policies across the network.
Quality of Service (QoS) is handled by eight hardware queues per port with SP, WRR and WDRR scheduling, ensuring latency-sensitive services like voice, video conferencing and key business applications receive prioritized bandwidth. Link aggregation via LACP or static trunks, coupled with MSTP and ERPS ring protection, delivers load-balanced bandwidth and rapid failover for high availability.
For management, the XEL-0891 offers a comprehensive toolkit including Web GUI, console/Telnet/SSH CLI, HTTPS/SSL, SNMP v1/v2c/v3, Syslog and FTP/TFTP for firmware and configuration management. This flexible management framework simplifies deployment, monitoring and maintenance, making the XEL-0891 an efficient, cost-effective 10G upgrade path for modern SMB and campus networks. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 4 Basis omskiftning RJ-45 Ethernet porttype 10G Ethernet (100/1000/10000) Antal SFP + modulslots 4 Port til konsol RJ-45 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3bz, IEEE 802.3z 10G understøttelse Ja Fuld duplex Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 160 Gbit/sek. Hastighed for videresendelse 119,04 Mpps Statisk rute Ja Jumbo Frames support Ja Jumbo rammer 12000 Pakke bufferlager 12 MB Sikkerhed DHCP funktioner DHCP relay, DHCP snooping, DHCP Option 82, DHCP Option 43, DHCP Option 60, DHCP Option 61, DHCP Option 67, DHCP client IGMP snooping Ja IGMP proxy Ja Multicast funktioner Multicast-understøttelse Ja Multicast Listener Discovery (MLD) snooping Y Design Formfaktor Desktop Produktfarve Grå LED-indikatorer Ja Præstation Gennemsnitstid mellem fejl (MTBF) 50000 t Strømstyring Strømkilde DC Strømforsyning inkluderet Ja DC indgangsspænding 12 V Indgangsstrøm 3 A Strømforbrug (maks.) 29,6 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 220 mm Dybde 130 mm Højde 37,8 mm Vægt 1,1 kg Emballage indhold Kabler inkluderet LAN (RJ-45) to DB9 Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 310 mm Pakkedybde 200 mm Pakkehøjde 80 mm Pakkevægt 1,5 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 21,8 cm Forsendelseskasses kassens bredde (indvendig) 42,3 cm Forsendelseskassens længde (indvendig) 32,3 cm Produkter pr. forsendelseskasse (indvendig) 5 stk Forsendelseskassens bruttovægt (indvendig) 8,5 kg Logistik data Oprindelsesland Kina Harmoniseret systemkode (HS) 8517620000
