Varenummer: GEP-0821
Mere information
-

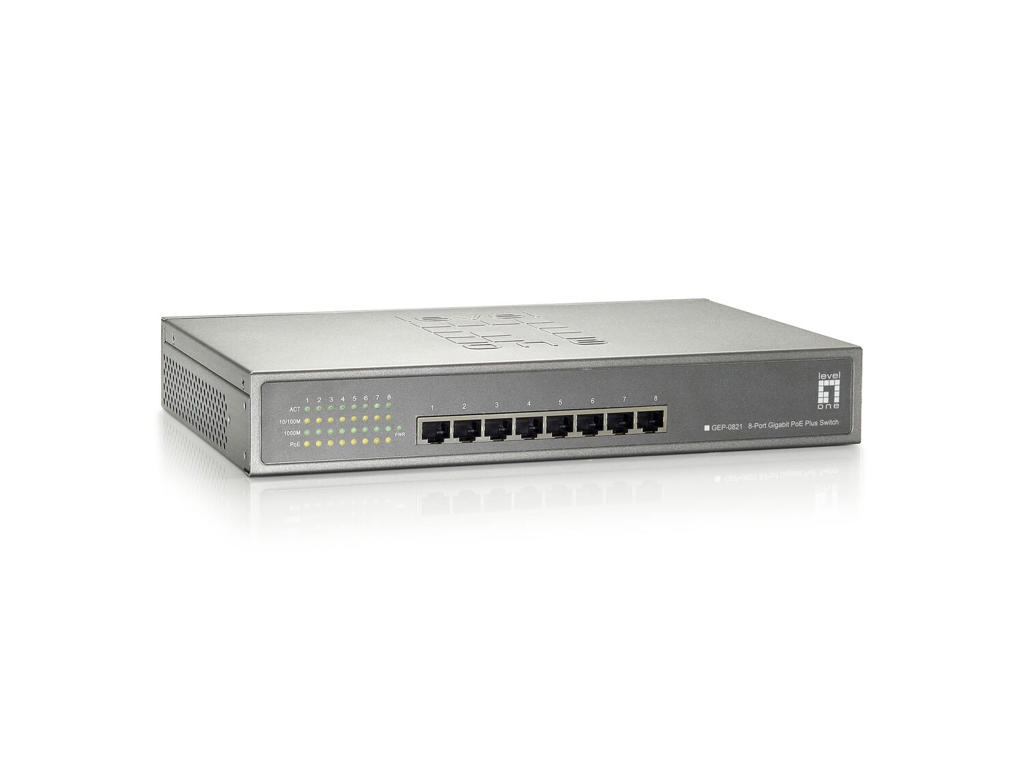

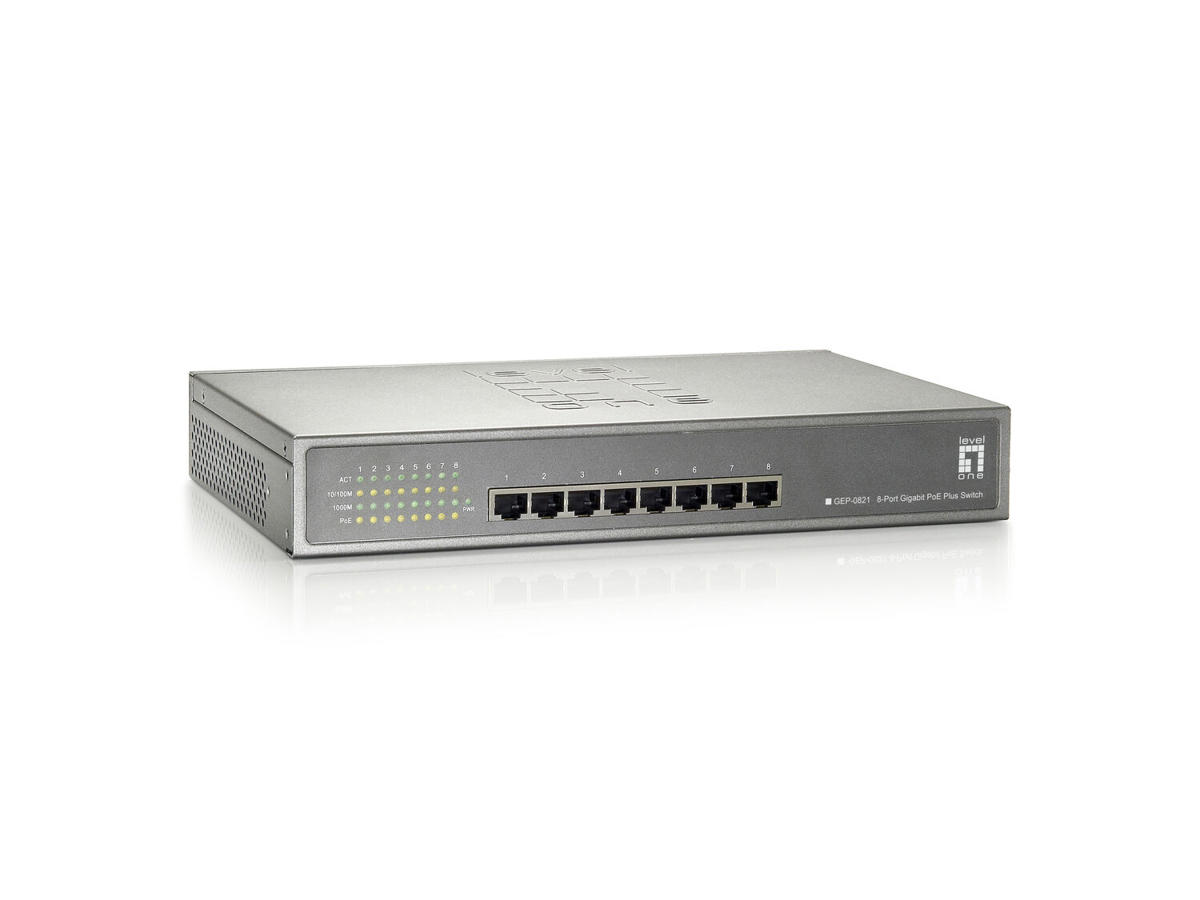

The LevelOne GEP-0821 provides 8 x 10/100/1000Mbps ports with IEEE 802.3at PoE plus supported. This switch is IEEE 802.3af/at compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 123.2W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an affordable solution for PoE deploying infrastructure.
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- 19-inch rackmount kit included
- Total PoE power budget: 123.2W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-TX Understøttede kabeltyper Cat5, Cat6, Cat7 Fuld duplex Ja Flowkontrol support Ja Dataoverførsel MAC adresselabel 8192 entries Switch kapacitet 16 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ja Produktfarve Grå LED-indikatorer Aktivitet, PoE Præstation Bufferstørrelse 128 KB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Indgangsstrøm 2 A Strømforbrug (typisk) 130 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 123,3 W Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 280 mm Dybde 185 mm Højde 44 mm Vægt 2 kg Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 371 mm Pakkedybde 230 mm Pakkehøjde 82 mm Pakkevægt 2,26 kg Godkendelser Certificering FCC, CE Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
