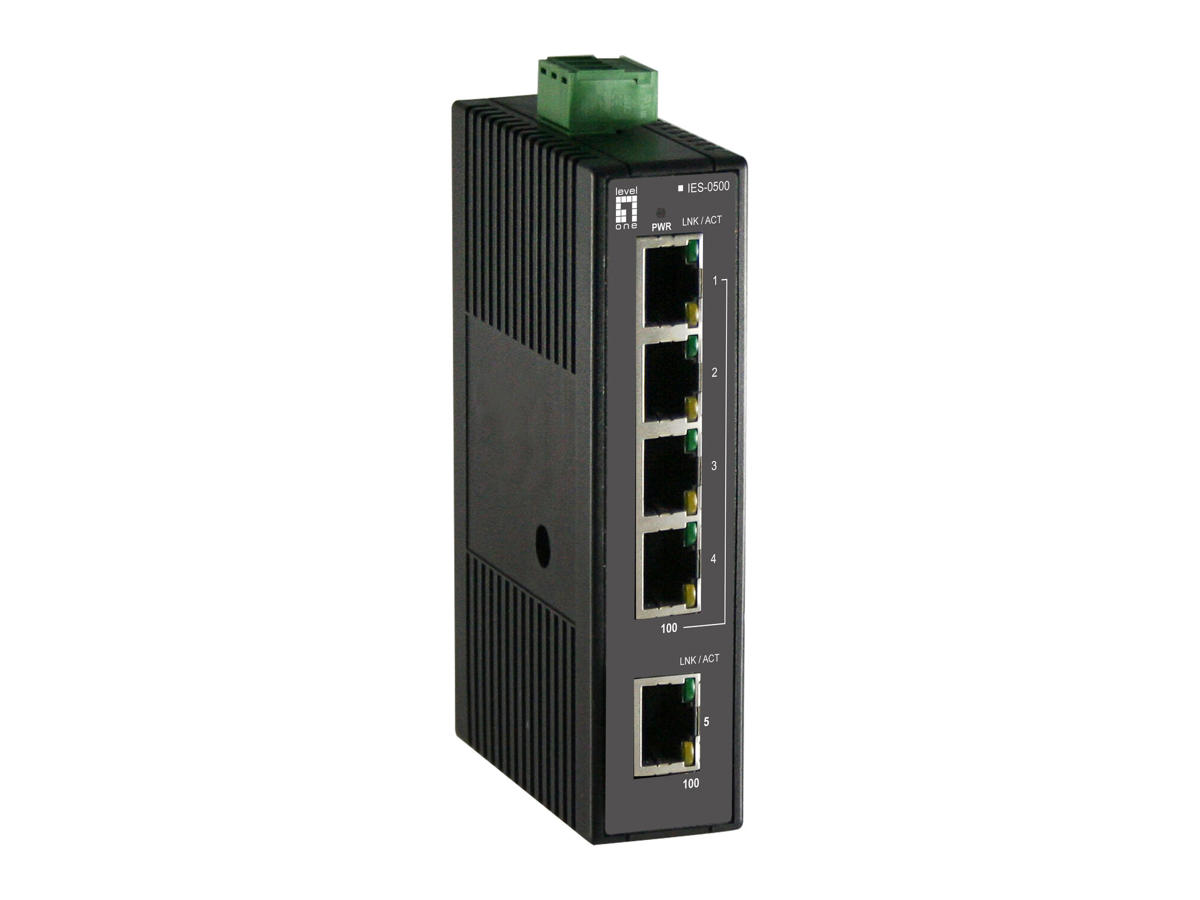

LevelOne IES-0500 Industry Ethernet Switch provides 5 ports of 10/100Base-TX Ethernet to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity. Cost Effective This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability. Safety With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards. Plug & Play This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play.
Administrationsfunktioner | |
Switch-type | Ikke administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 5 |
Basis omskiftning RJ-45 Ethernet porttype | Fast Ethernet (10/100) |
Netværk | |
Netværksstandarder | IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-FX, 100BASE-TX |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 2048 entries |
Opbevar-og-frem | Ja |
Pakke videresendelsesrate (100 Mbps) | 148810 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Pakke bufferlager | 0,384 MB |
Design | |
Produktfarve | Sort |
Husmateriale | Plast |
LED-indikatorer | Aktivitet |
Kode for international beskyttelse (IP) | IP30 |
Oprindelsesland | Taiwan |
Certificering | FCC EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed |
Præstation | |
Gennemsnitstid mellem fejl (MTBF) | 1677802 t |
Strømstyring | |
Strømforbrug (maks.) | 4,3 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | -10 - 60 °C |
Opbevaringstemperatur (T-T) | -25 - 85 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Bredde | 26 mm |
Dybde | 70 mm |
Højde | 110 mm |
Vægt | 200 g |
Emballeringsdata | |
Hurtig start guide | Ja |
Brugervejledning | Ja |
Pakkebredde | 180 mm |
Pakkedybde | 79 mm |
Pakkehøjde | 221 mm |
Pakkevægt | 460 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
