Varenummer: GEP-0521
Mere information
-

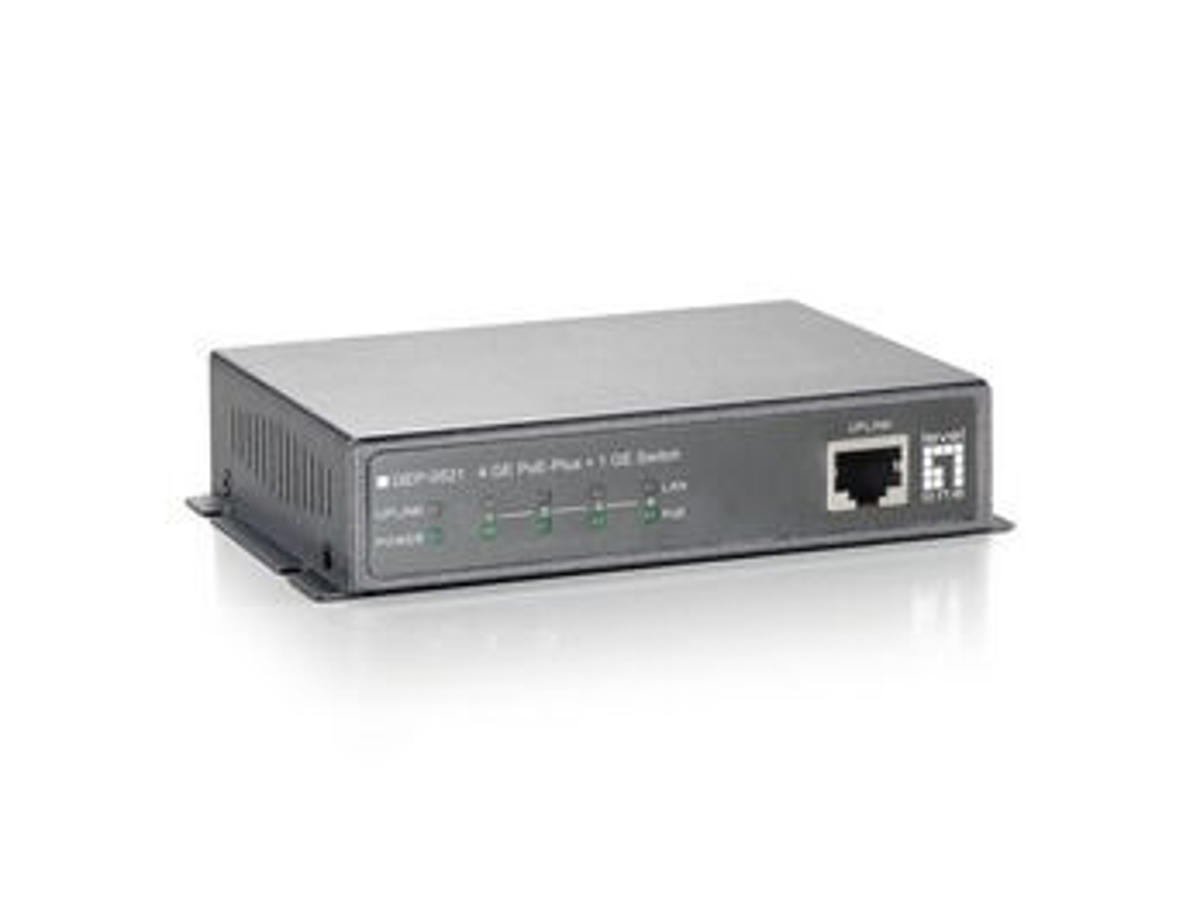

The LevelOne GEP-0521 provides 5 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 120W, up to 30W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially lower power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefers an inexpensive solution for PoE deploying infrastructure.
Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 120W, up to 30W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Flowkontrol support Ja Kabellængde opdagelse Ja MAC-adresse auto-indlæring understøttet Ja MAC-adresse auto-forældelse understøttet Ja Dataoverførsel MAC adresselabel 1000 entries Switch kapacitet 10 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 8000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Produktfarve Grå LED-indikatorer Aktivitet, PoE, Strøm Præstation Bufferstørrelse 104 KB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 120 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 140 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 120 mm Dybde 90 mm Højde 28 mm Vægt 800 g Emballage indhold Hurtig start guide Ingen Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 148 mm Pakkedybde 80 mm Pakkehøjde 232 mm Pakkevægt 1 kg Godkendelser Certificering FCC Part 15 Class A, CE, RoHS Logistik data Harmoniseret systemkode (HS) 85176990
