Varenummer: IES-0510
Mere information
-

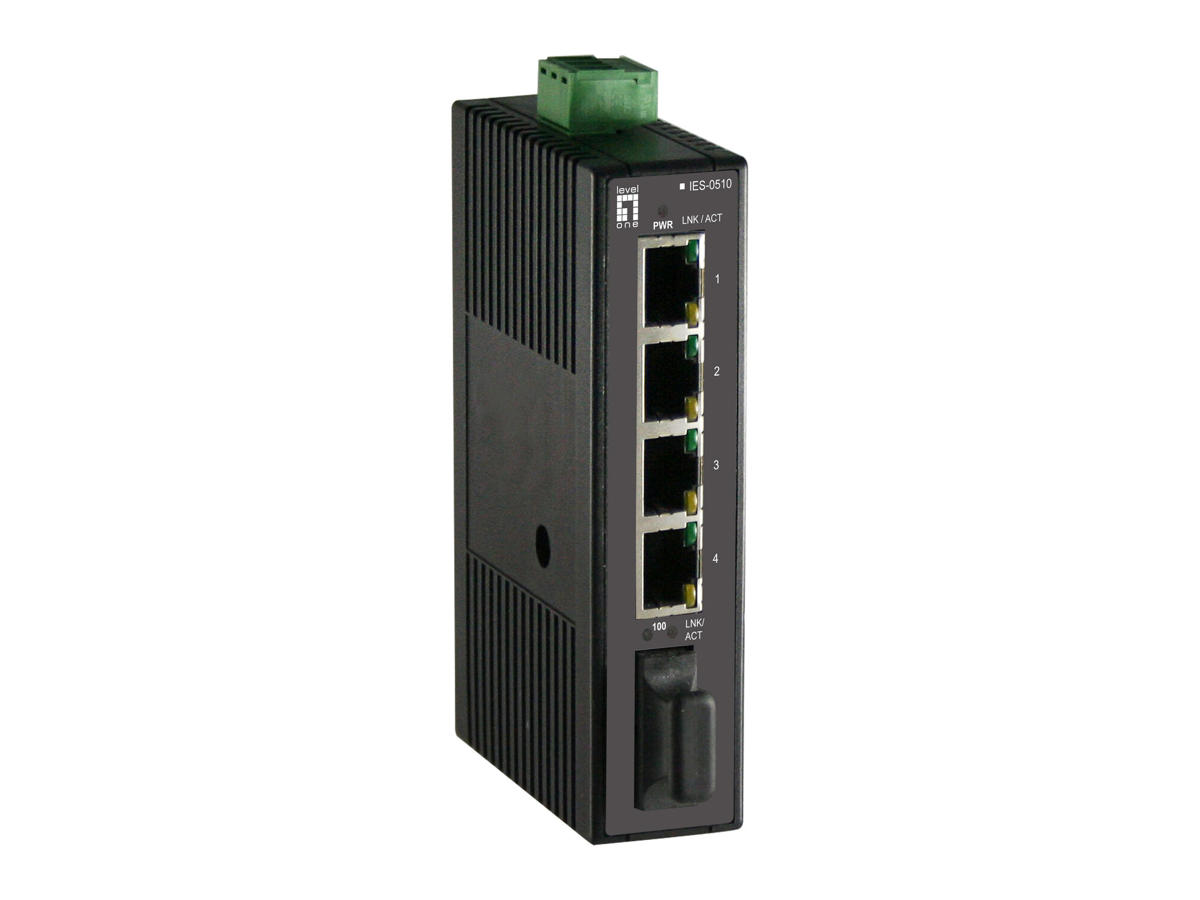

LevelOne IES-0510 Industry Ethernet Switch provides 4 ports of 10/100Base-TX Ethernet plus 1 port 100FX Multimode SC fiber to enable high speed network at mission-critical environment. This device is designed to be mounted on an industry standard DIN-rail, plus the clearly visible status LEDs provide simple monitoring of port link activity.
Cost Effective
This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit) temperature that offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability.
Safety
With UL60950 standard complied that gives basic protection against electric shock, fire spread from within, ignition and burning, current circuit hazardous under normal and fault condition. As well as set of compliances to meet many EMC, isolation, vibration and shock standards.
Plug & Play
This device is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly plug and play. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 4 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Fiber optisk strømstik SC Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX Fuld duplex Ja Auto MDI/MDI-X Ja Auto-forhandling Ja Optisk fiber Fiber ethernet kabelteknologi 100BASE-FX Fibertype Multitilstand Dataoverførsel MAC adresselabel 2048 entries Opbevar-og-frem Ja Pakke videresendelsesrate (100 Mbps) 148810 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 0,384 MB Design Produktfarve Sort Husmateriale Plast LED-indikatorer Aktivitet, Link, Hastighed Kode for international beskyttelse (IP) IP30 Sikkerhed UL60950-1 Præstation Gennemsnitstid mellem fejl (MTBF) 1071085 t Strømstyring Indgangsspænding 12 - 48 V Strømforbrug (maks.) 4,3 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -10 - 60 °C Opbevaringstemperatur (T-T) -25 - 85 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Vægt & størrelser Bredde 26 mm Dybde 70 mm Højde 110 mm Vægt 200 g Emballage indhold Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 180 mm Pakkedybde 79 mm Pakkehøjde 221 mm Pakkevægt 460 g Godkendelser Certificering ISO9001 FCC Part 15 EN61000-6-4 EN55022 EN61000-3-2 EN61000-3-3 EN61000-6-2 EN61000-4-2 EN61000-4-3 EN61000-4-4 EN61000-4-5 EN61000-4-6 EN61000-4-8 IEC60068-2-6 Fc IEC60068-2-27 Ea IEC60068-2-32 Ed Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
