Varenummer: GEP-1621
Mere information
-

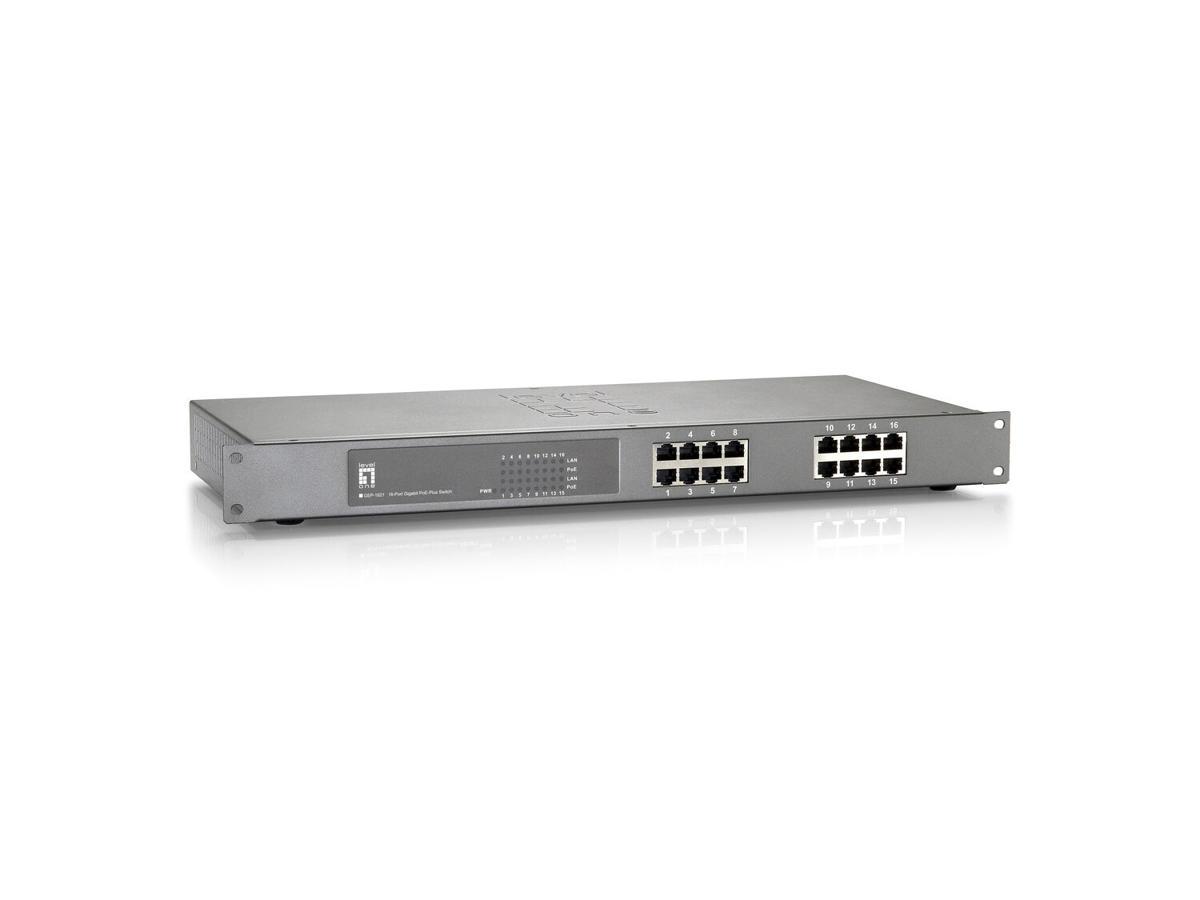

The LevelOne GEP-1621 is a Gigabit PoE-Plus Switch with 16 x 10/100/1000Base-T PoE-Plus ports. This switch is IEEE 802.3af/at compliant, providing power and data over a single Ethernet cable to any PoE device, with total power budget of 240W, up to 30W per port. Ideal for desktops, it is also 19-inch rack-mountable, which provides convenient and flexible installation. The GEP-1621 is designed for small-to-median businesses that prefers an affordable solution for PoE deploying infrastructure.
- 16 PoE-Plus Gigabit Ethernet ports
- 10/100/1000Mbps wire speed transmission and reception
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- 9K jumbo frames to increase data transfer rates
- Supports 8K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- 19-inch metal housing
- Total PoE power budget: 240W, up to 30W per port -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Fuld duplex Ja Dataoverførsel MAC adresselabel 8192 entries Switch kapacitet 32 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ja Stabelbar Ingen Produktfarve Grå LED-indikatorer Aktivitet, Link, PoE, Strøm Præstation Bufferstørrelse 256 KB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 250 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 16 Total Power over Ethernet (PoE) 240 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 480 mm Dybde 200 mm Højde 44 mm Vægt 2,9 kg Emballage indhold Kabler inkluderet Vekselstrøm Hurtig start guide Ja Emballeringsdata Pakketype Kasse Pakkebredde 260 mm Pakkedybde 96 mm Pakkehøjde 540 mm Pakkevægt 3,8 kg Godkendelser Certificering FCC Part 15 Class A, CE, RoHS Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
