Varenummer: GEP-0520
Mere information
-

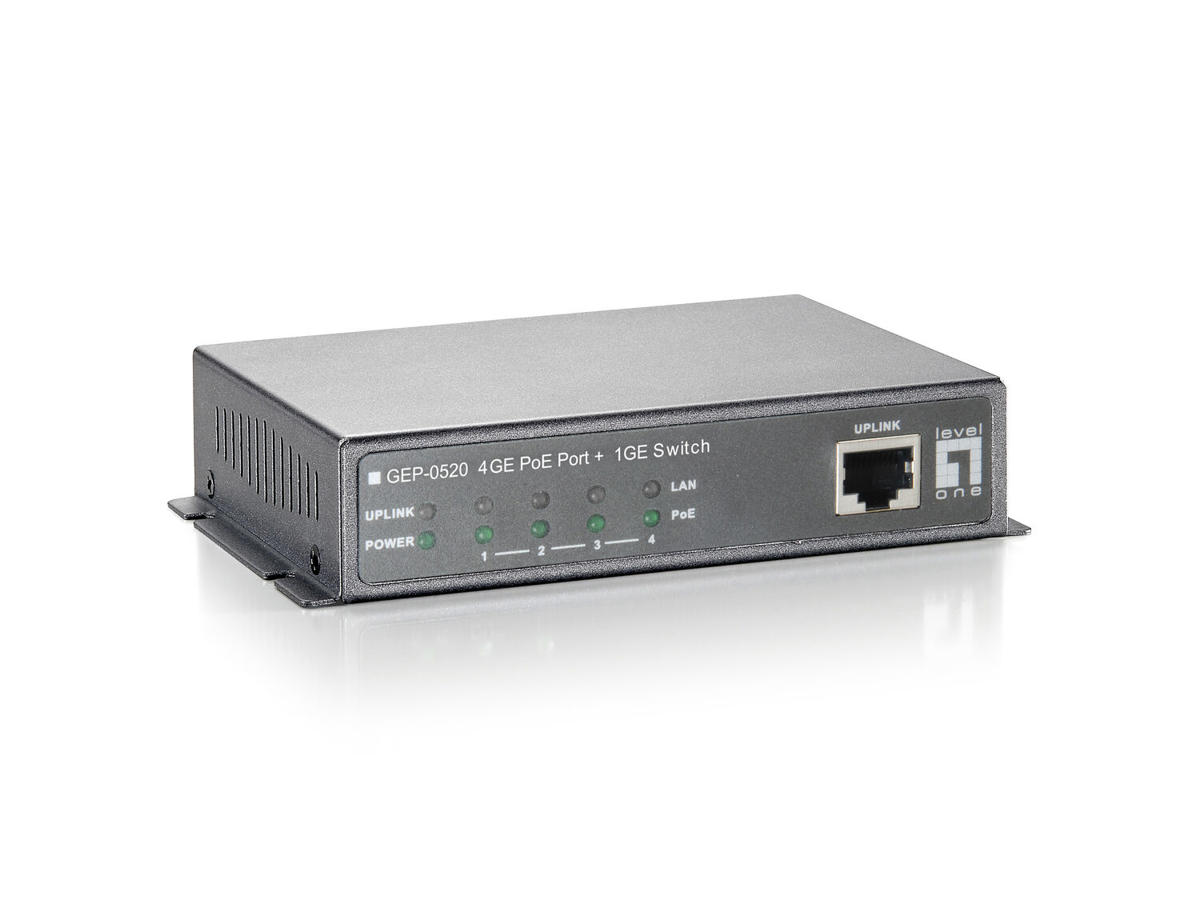

The LevelOne GEP-0520 provides 5 x 10/100/1000Mbps ports with IEEE 802.3af PoE supported. This switch is IEEE 802.3af compliant, and provides power and data over a single Ethernet cable to any PoE device, with total power budget of 61.6W, up to 15.4W per port. Together with Energy Efficient Ethernet (IEEE 802.3az) standard compliant, it substantially low power consumption during periods of low-link utilization. Moreover, it supports Gigabit Ethernet connectivity with 9K jumbo frames for network performing enhancement. Ideal for small businesses that prefer an inexpensive solution for PoE deploying infrastructure.
- IEEE 802.3af PoE compliant to simplify deployment and installation
- 10/100/1000Mbps wire speed transmission and reception
- 9K jumbo frames to increase data transfer rates
- Auto-detection and protection of non-standard PoE devices
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Total PoE power budget: 61.6W, up to 15.4W per port
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az) -
Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Understøttede kabeltyper Cat5, Cat5e, Cat6, Cat7 Dataoverførsel MAC adresselabel 2048 entries Switch kapacitet 10 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148000 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort LED-indikatorer Uplink, LAN, PoE, Strøm Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 65 W Strømbeskyttelsesfunktioner Overstrøm, Kortslutning Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 4 Power over Ethernet (PoE) effekt pr. port 15,4 W Total Power over Ethernet (PoE) 61,6 W Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 90 mm Dybde 120 mm Højde 28 mm Vægt 800 g Emballage indhold Hurtig start guide Ja Emballeringsdata AC-adapter inkluderet Ja Pakkebredde 150 mm Pakkedybde 80 mm Pakkehøjde 235 mm Pakkevægt 1,04 kg Godkendelser Certificering FCC, CE Logistik data Oprindelsesland Taiwan Harmoniseret systemkode (HS) 85176990
