Varenummer: 7D5JA000WW
Mere information
-

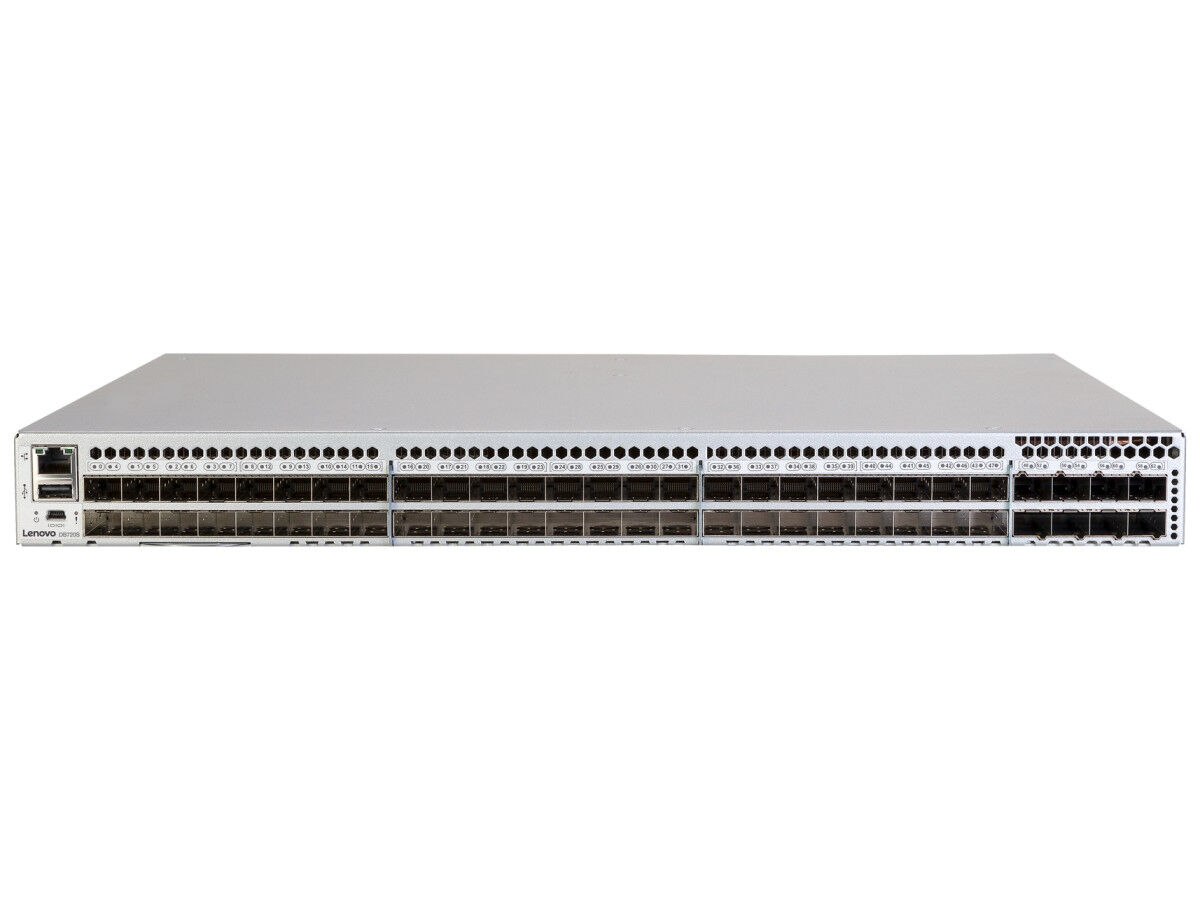

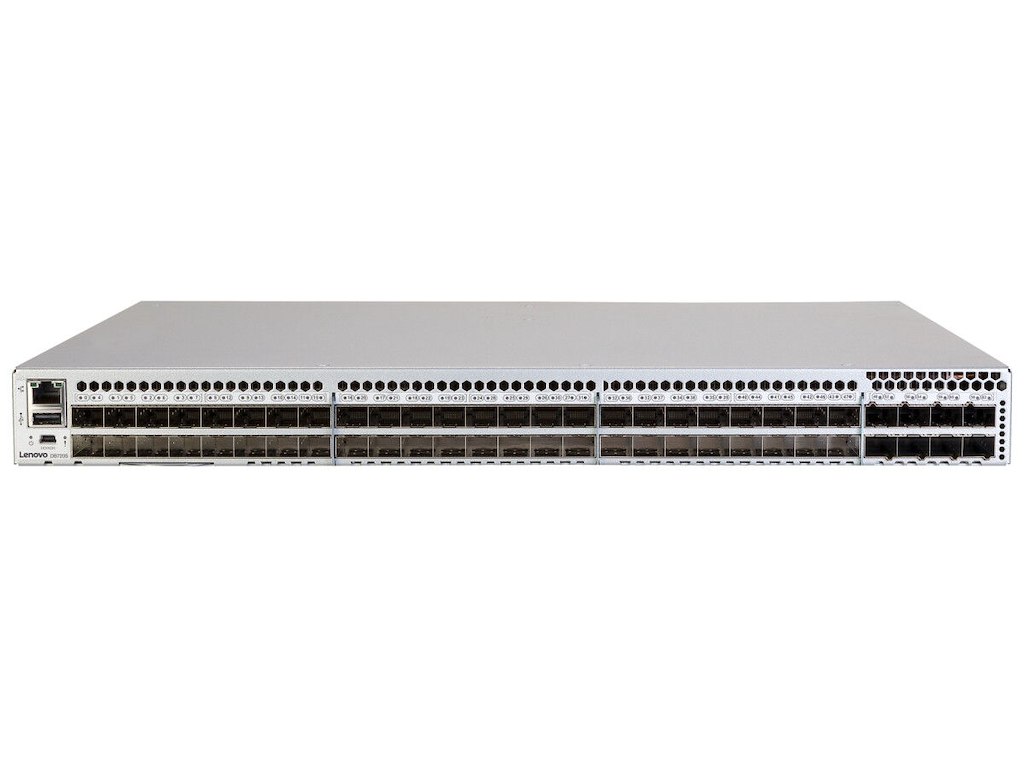

The Lenovo ThinkSystem DB720S Gen 7 FC SAN Switch, with its unmatched 64Gbps performance and industry-leading port density, provides a building block that supports data growth, demanding workloads, and data-center consolidation. With a 50% latency reduction compared to the previous generation, the DB720S Switch enables the maximum performance of NVMe storage.
This product guide provides essential pre-sales information to understand the ThinkSystem DB720S FC SAN Switch, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the switch and consider its use in IT solutions. -
Administrationsfunktioner Switch-type Administreret Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 1 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP + modulslots 24 Antal USB Type-A-porte 1 Fiber optisk strømstik SFP+ Port til konsol RJ-45/Mini-USB Strømstik AC-in jack Netværk 10G understøttelse Ja Port-spejlning Ja Fuld duplex Ja Auto-forhandling Ja Aktiv link opdagelse Ja Dataoverførsel Switch kapacitet 32 Gbit/sek. Sikkerhed Sikkerhedsalgoritmer SSL/TLS, 802.1x RADIUS, SSH, TACACS+ SSH/SSL support Ja Protokoller Administrationsprotokoller SSH, HTTPS, SNMP Design Stativ-montering Ja Formfaktor 1U Produktfarve Sølv Præstation Støjniveau 65 dB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Redundant strømforsyning Ja Vekselstrømsindgangsspænding 90 - 264 V Vekselstrømsindgangsfrekvens 50/60 Hz Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -25 - 70 °C Relativ luftfugtighed ved drift (H-H) 8 - 90% Relativ luftfugtighed ved opbevaring (H-H) 8 - 90% Driftshøjde 0 - 3000 m Ikke-drift højde 0 - 12000 m Vægt & størrelser Bredde 440 mm Dybde 356 mm Højde 44 mm Vægt 7,17 kg
