Smarter Switching for Smarter Results

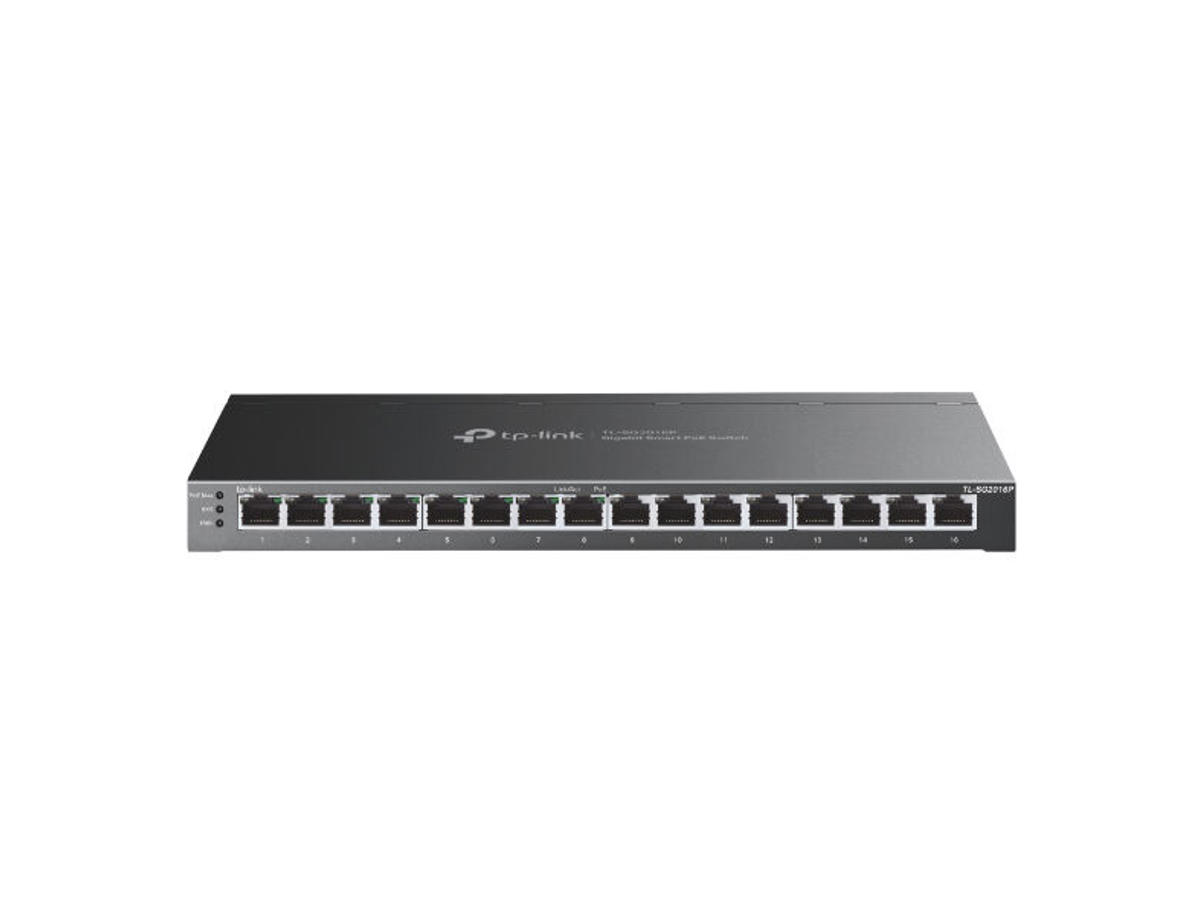

JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+
Multiple Application Scenarios
The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.
Power over Ethernet for Simplified Network Deployment
Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
Value-Added Features Bring Unexpected Experience
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experience
Designate the priority of traffic based on QoS, ensuring latency sensitive applications like voice and video, remain clear and lag-free.
VLAN for Security
Use VLAN to achieve logical grouping management of devices in different physical LANs, improve information security, and reduce data congestion.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Hassle-Free Centralized Cloud Management:
100% centralized cloud management of whole network from different sites—all controlled from a single interface anywhere, anytime.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| Administrationsfunktioner | |
| Switch lag | L2/L3/L4 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| Cloud-administreret | Ja |
| ARP inspektion | Ja |
| Konfigurerer lokationsindstillinger (CLI) | Ja |
| System hændelseslog | Ja |
| MIB support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Strømstik | DC-in-stik |
| Netværk | |
| Netværksstandarder | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| 10G understøttelse | Ingen |
| Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Understøttede kabeltyper | Cat3, Cat4, Cat5, Cat5e |
| Port-spejlning | Ja |
| Flowkontrol support | Ja |
| Link aggregering | Ja |
| Broadcast stormkontrol | Ja |
| Begrænsning af hastighed | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protokol | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Auto-forhandling | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Multicast VLAN, Tagged VLAN, Voice VLAN |
| Antal VLAN'er | 4000 |
| Dataoverførsel | |
| MAC adresselabel | 8000 entries |
| Switch kapacitet | 16 Gbit/sek. |
| Antal køer | 8 |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Pakke bufferlager | 4,1 MB |
| Sikkerhed | |
| DHCP funktioner | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Adgangskontrolliste (ACL) | Ja |
| IGMP snooping | Ja |
| Sikkerhedsalgoritmer | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| Filtrering af MAC-adresser | Ja |
| SSH/SSL support | Ja |
| BPDU filtrering/beskyttelse | Ja |
| IP-MAC-portbinding | Ja |
| Godkendelse | Gæste VLAN, MAC-baseret godkendelse, Portbaseret godkendelse |
| Algoritmer for køplanlægning | SP, Weighted Round Robin (WRR) |
| MAC adresse indtastninger | Dynamiske MAC-adresseposter, Statisk MAC adresse indtastninger |
| Multicast funktioner | |
| Multicast-understøttelse | Ja |
| Multicast Listener Discovery (MLD) snooping | MLD v1, MLD v2 |
| Protokoller | |
| Understøttede netværksprotokoller | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| GARP VLAN registreringsprotokol (GVRP) | Ja |
| IPv4 & IPv6 funktioner | Dual stack IPv4/IPv6 |
| Design | |
| Produktfarve | Sort |
| Husmateriale | Metal |
| LED-indikatorer | PoE, Strøm, System |
| Præstation | |
| Firmware kan opgraderes | Ja |
| Ventilatorfri | Ja |
| Minimum systemkrav | Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, MAC OS, NetWare, UNIX, Linux |
| Strømstyring | |
| Strømkilde | DC/PoE |
| DC indgangsspænding | 53.5 V |
| Indgangsstrøm | 1.31 A |
| Strømforbrug (maks.) | 146,5 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Total Power over Ethernet (PoE) | 120 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -40 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Varmeafgivelse | 499,98 BUT/t |
| Vægt & størrelser | |
| Bredde | 286 mm |
| Dybde | 111,7 mm |
| Højde | 25,4 mm |
| Emballage indhold | |
| Brugervejledning | Ja |
| Emballeringsdata | |
| Pakkebredde | 227 mm |
| Pakkedybde | 434 mm |
| Pakkehøjde | 70 mm |
| Pakkevægt | 1,94 kg |
| Godkendelser | |
| Certificering | CE, FCC, RoHS |
