Varenummer: 98011332
Mere information
-

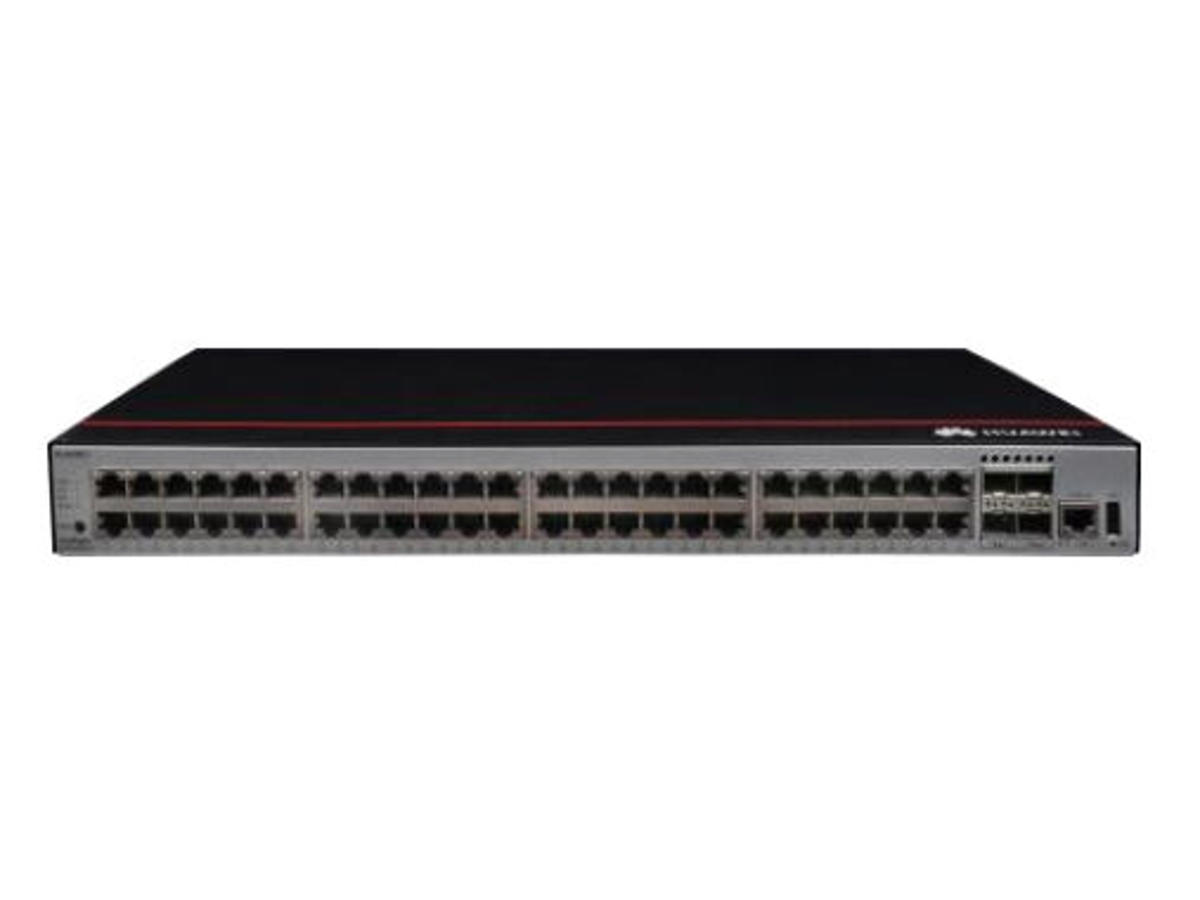

Designed for enterprise campus network access and gigabit to the desktop, Huawei CloudEngine S5735-L is a series of simplified gigabit access switches that provide 12–48 flexible all-GE downlink ports and four fixed GE or 10 GE uplink ports.
Built on next generation, high-performance hardware and powered by Huawei's Versatile Routing Platform (VRP), the switches feature flexible Ethernet networking, diversified security control, and support for multiple Layer 3 routing protocols — providing higher performance and more powerful service processing capabilities for networks.
Silent Energy-Saving Design
Multiple energy-saving technologies, such as port dormancy, automatic port power adjustment, and fanless options achieve gigabit to the desktop in an energy-efficient way.
Simplified Network O&M
Super Virtual Fabric (SVF), with plug-and-play capabilities, virtualizes the core/aggregation switch, access switch, and Access Point (AP) into a single logical device for simplified network Operations and Maintenance (O&M).
Diversified Security Control
802.1X, Media Access Control (MAC) address, and Portal authentications, dynamically deliver user policies — Virtual Local Area Network (VLAN), Quality of Service (QoS), and Access Control List (ACL) — and also provide comprehensive mechanisms to fend off Denial of Service (DoS) and user-targeted attacks. -
Administrationsfunktioner Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja Trafik formning Ja ARP inspektion Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP + modulslots 4 Port til konsol RJ-45 Antal USB 2.0-porte 1 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ah, IEEE 802.3az 10G understøttelse Ja IP-routing Ja Link aggregering Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner Multiple VXLAN (MUX VLAN), Voice VLAN Antal VLAN'er 4000 VLAN kortlægningstype 1:1 VLAN-kortlægning, N:1 VLAN kortlægning Dataoverførsel MAC adresselabel 32896 entries Switch kapacitet 432 Gbit/sek. Hastighed for videresendelse 132 Mpps Statisk rute Ja Sikkerhed DHCP funktioner DHCP relay, DHCP server, DHCP snooping, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja SSH/SSL support Ja Loop beskyttelse Ja BPDU filtrering/beskyttelse Ja Godkendelse MAC-baseret godkendelse Godkendelsestype AAA, HWTACACS, Network Access Control (NAC), RADIUS Algoritmer for køplanlægning DRR+SP, Deficit Round Robin (DRR), SP, WRR+SP, Weighted Round Robin (WRR) MAC adresse indtastninger Blackhole MAC adresse indtastninger, Dynamiske MAC-adresseposter, Statisk MAC adresse indtastninger Multicast funktioner Multicast-understøttelse Ja Multicast funktioner Kontrollerbar multicast, Grænsefladebaseret multicast-trafikstatistik Protokoller GARP VLAN registreringsprotokol (GVRP) Ja Routing-protokoller OSPF, OSPFv3, RIP, RIPng IPv4 & IPv6 funktioner IPv6 Telnet, IPv6 ping, IPv6 tracert IPv4 FIB indtastninger 4096 IPv6 FIB indtastninger 1024 Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Grå Antal blæsere 1 blæser(e) Præstation Intern hukommelse 512 MB Flashhukommelse 512 MB Støjniveau 48 dB Gennemsnitstid mellem fejl (MTBF) 470149 t Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 43,2 W Strømforbrug (maks.) 51,9 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Driftshøjde 0 - 1800 m Varmeafgivelse 177,09 BUT/t Vægt & størrelser Bredde 442 mm Dybde 220 mm Højde 43,6 mm Vægt 2,81 kg Emballage indhold Kabler inkluderet Vekselstrøm Emballeringsdata Pakkebredde 550 mm Pakkedybde 360 mm Pakkehøjde 90 mm Pakkevægt 3,79 kg
