Varenummer: R8S91A
Mere information
-

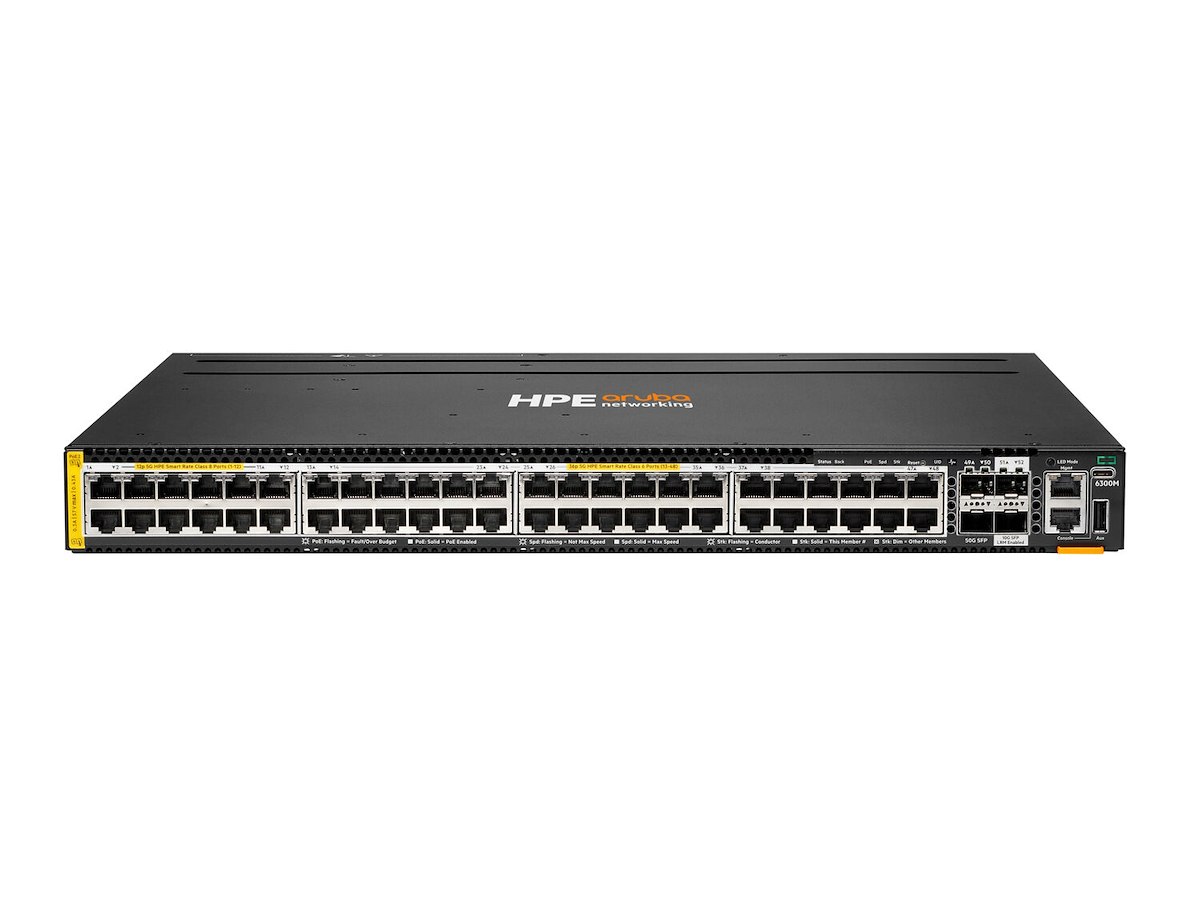

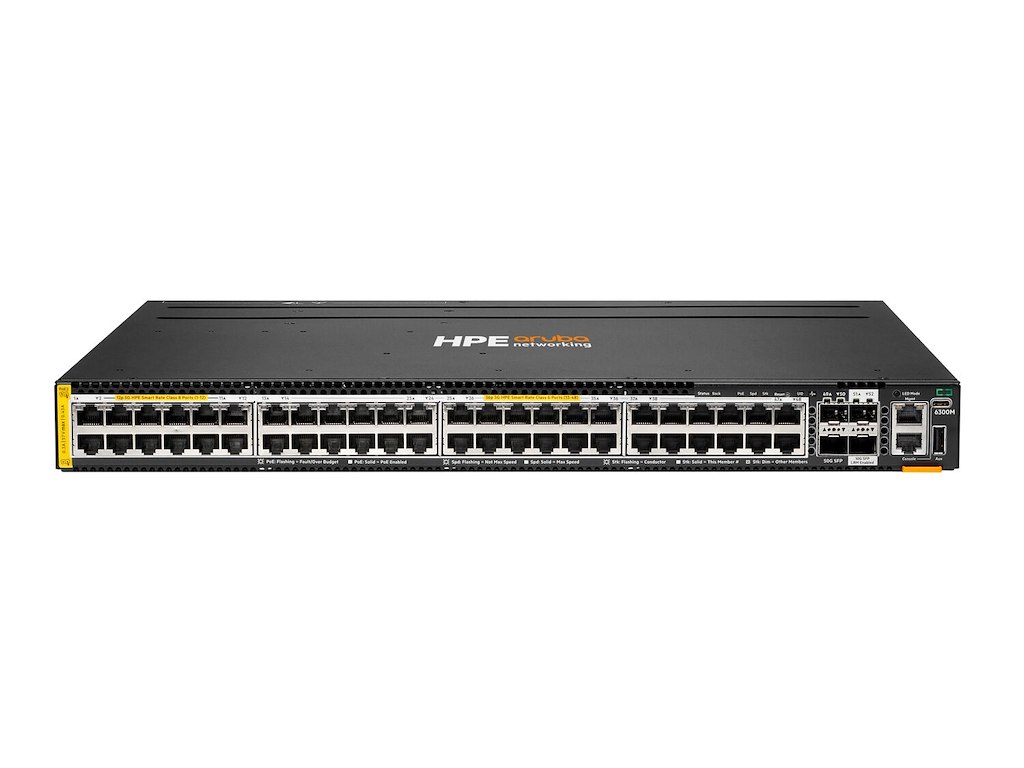

The HPE Aruba Networking CX 6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). Featuring a cloud-native design and fully programmable operating system (OS). The CX 6300 delivers advanced monitoring and troubleshooting with capabilities like a real-time network analytics engine, HPE Aruba Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in high-speed uplinks and supports high-density IEEE 802.3bt high-power PoE with HPE Smart Rate multi-gigabit Ethernet.
What is new supporting point:
The HPE Aruba Networking CX 6300 Switch Series is a family of stackable Layer 3 switches with BGP, EVPN, VXLAN, VRF, OSPF routing, robust quality of service (QoS), MACsec 256, PTP, AVB and LRM [1]
Three stackable Layer 2-only CX 6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high performance access deployments
High availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Options include 24 to 48-port of HPE Smart Rate multi-gigabit (1/2.5/5/10GbE) and 1GbE fiber, supporting up to 90W 802.11bt PoE, all with telemetry and automation via the CX Network Analytics Engine
Powerful 7th Gen ASIC architecture provides the CX 6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
Manage through single point of control with HPE Aruba Networking Central across wired, wireless, and WAN. Dynamic segmentation enables enhanced security and simple access for users and IoT -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP+ moduler 2 Antal SFP + modulslots 2 Port til konsol USB Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 10G understøttelse Ja Link aggregering Ja Dataoverførsel Switch kapacitet 496 Gbit/sek. Gennnemløb 369 Mpps Latens (1 Gbps) 4,24 µs Latens (10 Gps) 1,5 µs Pakke bufferlager 16 MB Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort Præstation Fysisk stabling 10 Indbygget processer Ja Processormodel ARM Cortex-A72 Processorfrekvens 1800 MHz Hukommelsestype DDR4-SDRAM Intern hukommelse 8000 MB Flashhukommelse 32000 MB Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 2880 W Strømforbrug note With JL086A PSU: Idle: 70W 100% Traffic Rate: 90W With JL087A PSU: Idle: 71W 100% Traffic Rate: 88W With JL670A PSU: Idle: 73W 100% Traffic Rate: 96W Strømforsyning note 2 field‑replaceable, hot‑swappable power supply slots 1 minimum power supply required (ordered separately). Supported PSUs JL086A, JL087A and JL670A Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Total Power over Ethernet (PoE) 1440 W Andre funktioner Reaktionstid 1 Gbps: 4.24 μs 10 Gbps: 1.50 μs 25 Gbps: 2.91 μs 50 Gbps: 3.49 μs Hukommelse og processor Quad Core Arm Cortex™ A72 @ 1.8GHz, 8 GB DDR4, 32 GB eMMC 16 MB Shared Packet Buffer Memory Målstyring Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software Ventilator Switch has two fan tray slots and comes with two fan trays installed. Minimum two fan trays required. Fan trays are field replaceable and hot‑swappable. Each fan tray contains two fans. I/O-porte 48 x 10/100/1000 BaseT PoE+ ports supporting up to 30W per port 4 x 1G/10G/25G/50G [4] SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM port Vægt (efter britisk standard) 6,71 kg (14.8 Pund) Dimensioner (BxDxH) (efter britisk standard) 43,9 x 442 x 386,1 mm (1.73 x 17.4 x 15.2") Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Vægt & størrelser Bredde 44 mm Dybde 442 mm Højde 385 mm Vægt 6,71 kg
