Varenummer: R8N85A#ACE
Mere information
-

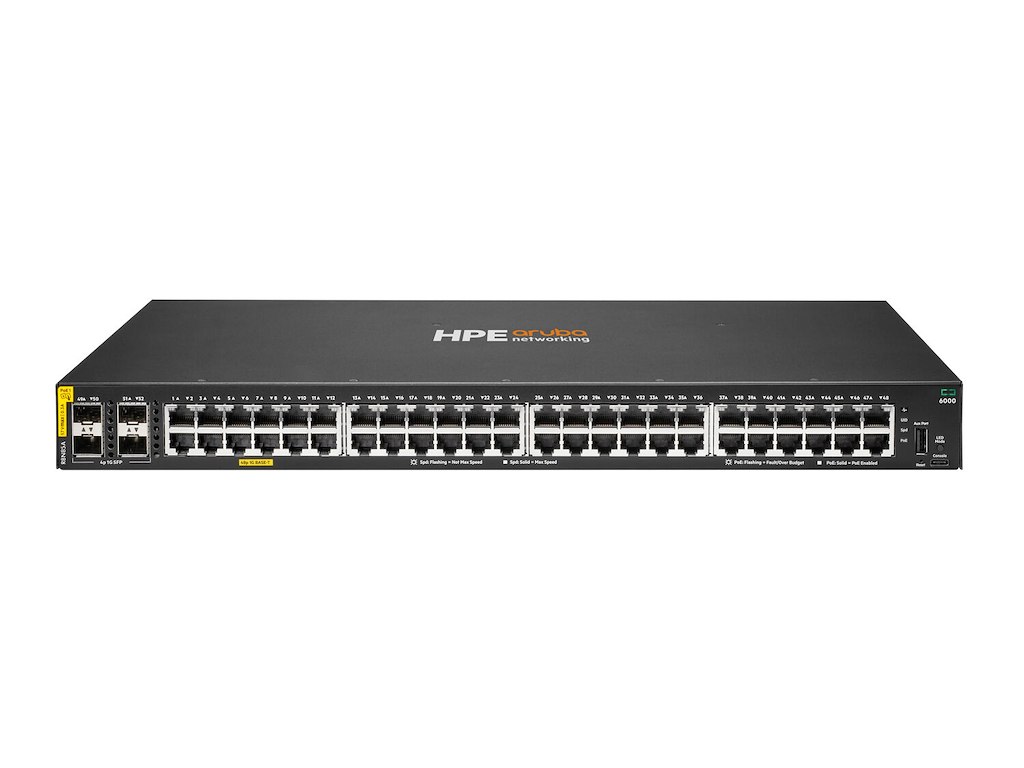

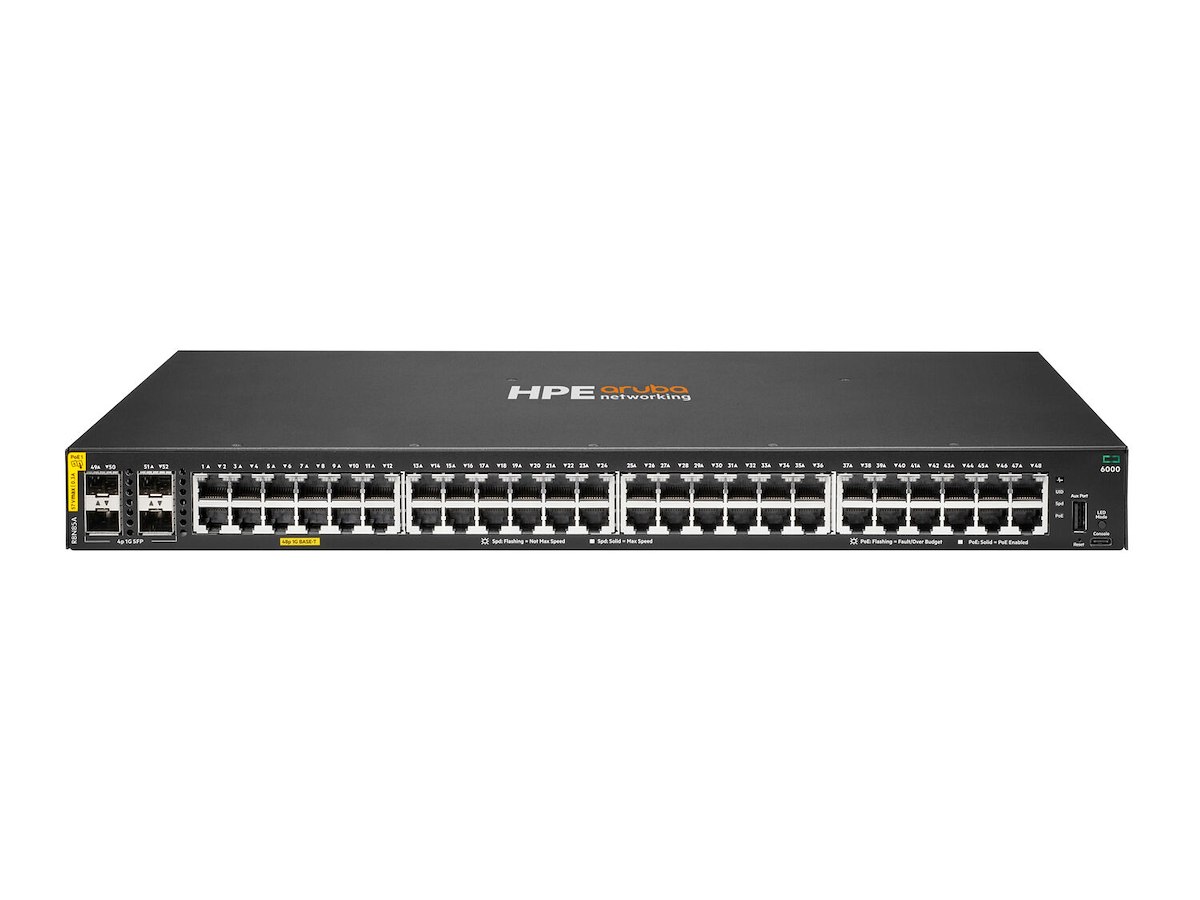

The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.
What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Cloud-administreret Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 4 Port til konsol Micro-USB Netværk Netværksstandarder IEEE 802.3af, IEEE 802.3at 10G understøttelse Ingen Port-spejlning Ja Flowkontrol support Ja Link aggregering Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja VLAN understøttelse Ja Dataoverførsel MAC adresselabel 8192 entries Switch kapacitet 104 Gbit/sek. Gennnemløb 77,3 Mpps Latens (1 Gbps) 1,9 µs Statisk rute Ja Jumbo Frames support Ja Pakke bufferlager 12,38 MB Sikkerhed DHCP funktioner DHCP client Adgangskontrolliste (ACL) Ja IGMP snooping Ja Godkendelse MAC-baseret godkendelse Multicast funktioner Multicast-understøttelse Ja Protokoller IPv4 & IPv6 funktioner IPv4/IPv6 access-control list (ACL) IPv4 FIB indtastninger 256 IPv6 FIB indtastninger 128 Design Stativ-montering Ja Formfaktor 1U Præstation Indbygget processer Ja Processormodel ARM Cortex-A9 Processorfrekvens 1016 MHz Hukommelsestype DDR3-SDRAM Intern hukommelse 4096 MB Flashhukommelse 16384 MB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 200 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug note Max. Power (w/o PoE): 45W Max Power (w/ PoE): 480W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Total Power over Ethernet (PoE) 370 W Andre funktioner Reaktionstid 1 Gbps: 1.9 μSec Hukommelse og processor CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC Målstyring Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software I/O-porte 48 x 10/100/1000BASE-T ports 4 x 1 G SFP ports Supports PoE Standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port Vægt (efter britisk standard) 5,02 kg (11.1 Pund) Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 15 - 95% Relativ luftfugtighed ved opbevaring (H-H) 15 - 90% Vægt & størrelser Bredde 44 mm Dybde 442 mm Højde 305 mm Vægt 5 kg Logistik data Harmoniseret systemkode (HS) 85176990
