Varenummer: S2N58A
Mere information
-

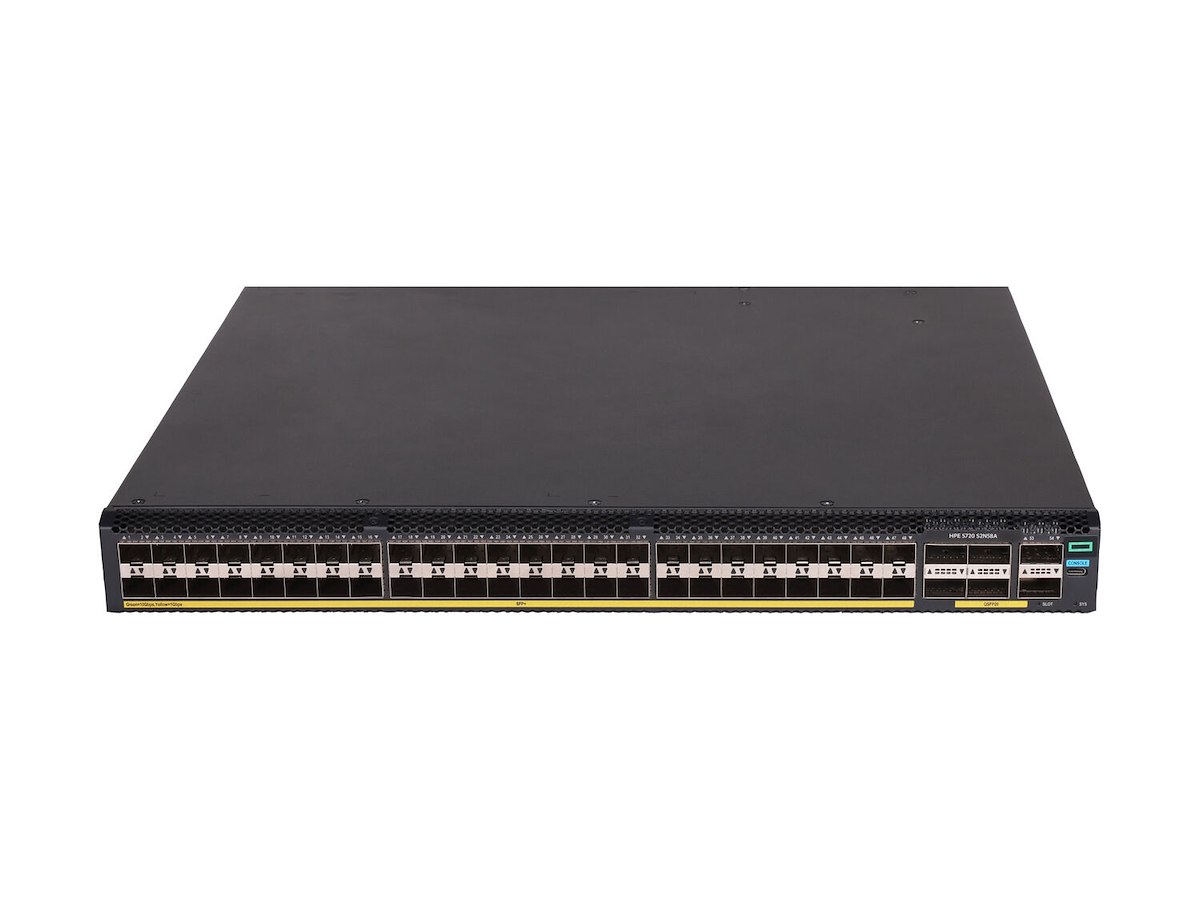

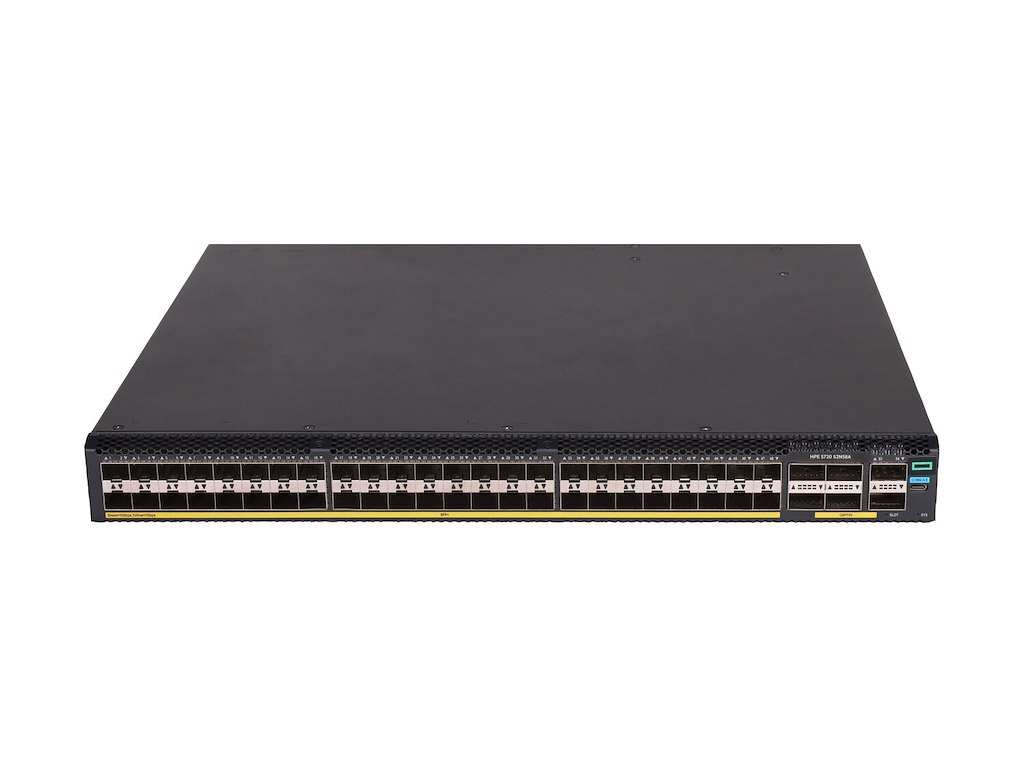

HPE Networking Comware Switch Series 5720 is designed to cater to diverse customer needs. This cost-effective access switch offers hybrid SFP+ and 10GBASE-T options, along with multigigabit support on 10GBASE-T ports, allowing scalability from 10GbE SFP+ to 100G QSFP28. These data center leaf / access layer switches come with MACsec support and 10GBASE-T additional modules. Features such as distributed resilient network interconnect (DRNI) and HPE Intelligent Resilient Fabric (IRF) enhance network resiliency while redundant pluggable power supplies provide a dynamic and highly available network. Moreover, these switches support HPE Intelligent Management Center (IMC), which delivers a consistent network manageability experience. Streamline network management processes for greater efficiency through centralized configuration, compliance, policy management, monitoring, and troubleshooting.
What is new supporting point:
DRNI combines multiple physical switches into one virtual distributed-relay (DR) system for doubling aggregate bandwidth, faster forwarding, resiliency, and high availability.
Hardware-based MACsec enable end-to-end encrypted security.
VXLAN and EVPN enable isolation and greater scalability of L2/L3 overlay services and multicast.
The Intelligent Resilient Fabric (IRF) technology enabling greater resilience and scalability with IRF stacking.
Cost-effective access switch with hybrid SFP+ and 10GBASE-T with multigigabit options on 10GBASE-T port—5G, 2.5G, 1G.
Virtual Extensible LAN (VXLAN) with lite Ethernet VPN (EVPN) allows greater flexibility, better performance with wirespeed, enhanced security, and better scalability. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 0 Basis omskiftning RJ-45 Ethernet porttype Ingen Antal SFP + modulslots 48 Antal QSFP + modulpladser 6 Netværk 10G understøttelse Ja Flowkontrol support Ja Link aggregering Ja Spanning tree protokol Ja VLAN understøttelse Ja Dataoverførsel MAC adresselabel 280000 entries Switch kapacitet 2560 Gbit/sek. Gennnemløb 1001 Mpps Latens (10 Gps) 3 µs Jumbo Frames support Ja Pakke bufferlager 8 MB Sikkerhed Adgangskontrolliste (ACL) Ja IGMP snooping Ja Protokoller Routing-protokoller MPLS, OSPF, RIP Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort Præstation Fysisk stabling 9 Hukommelsestype SDRAM Intern hukommelse 4096 MB Flashhukommelse 4000 MB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V DC indgangsspænding 48 - 60 V Strømforbrug (typisk) 89 W Strømforbrug note Dual AC 89 W Strømforsyning note AC: 2x JL592A/JL593A DC: 2x JL688A Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Andre funktioner Reaktionstid < 3 µs Hukommelse og processor 4 GB flash, 4 GB SDRAM, packet buffer size: 32 M Quad Core ARMv8-Cortex-A72; Målstyring IMC, IMC Orchestrator, CLI, out-of-band management, SNMP Manager, Telnet, FTP I/O-porte 48 SFP+,6 QSFP28,1 Slot Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Varmeafgivelse 887 BUT/t Vægt & størrelser Bredde 440 mm Dybde 400 mm Højde 44 mm Vægt 7,9 kg
