Varenummer: R8J41A#ACD
Mere information
-

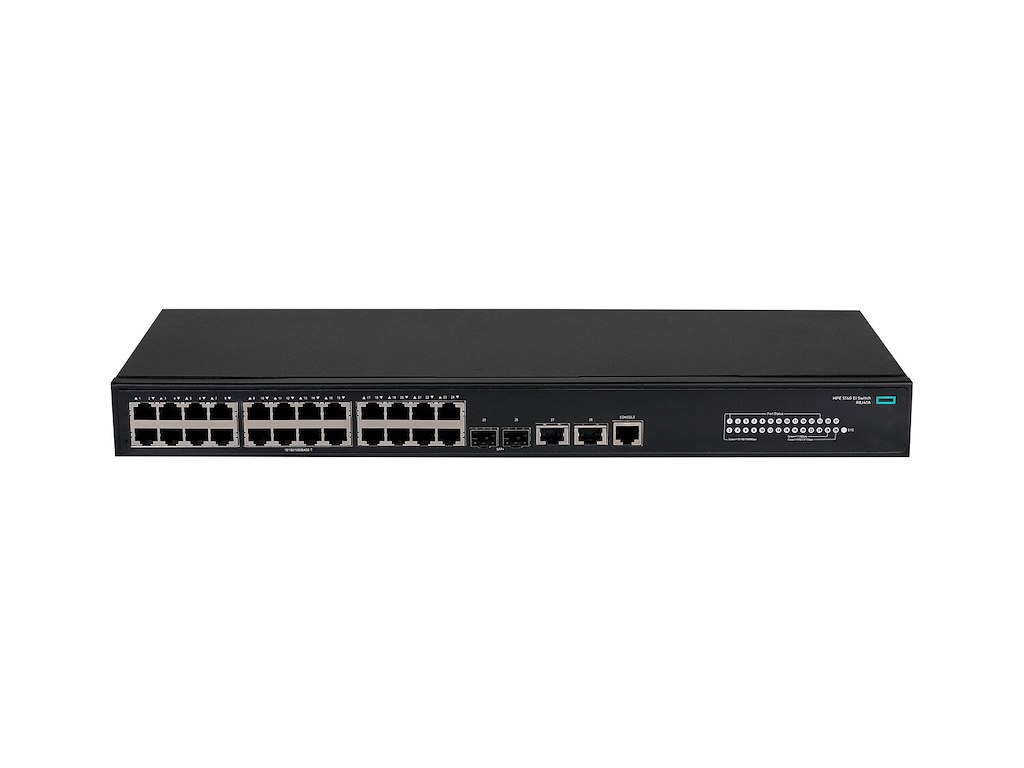

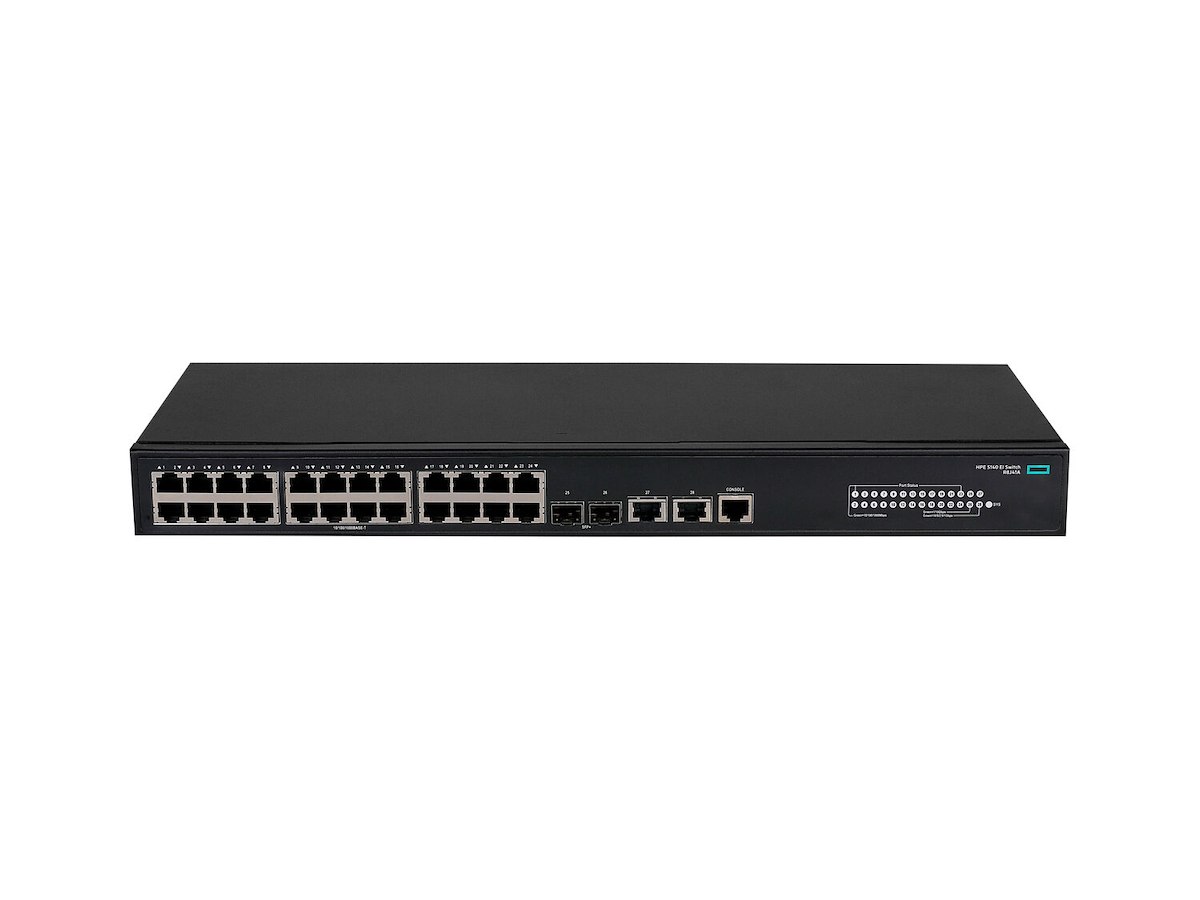

The HPE Networking Comware Switch Series 5140 EI delivers scalability, high availability, and low TCO at the access layer of medium and large enterprise campus networks. The series offers enterprise-class QoS and security, HPE Intelligent Resilient Fabric (IRF) stacking, static layer 3 routing and RIP; convenient fixed 10 GbE uplink ports, PoE+, ACLs, and IPv6; and delivers energy savings with Energy Efficient Ethernet. The HPE Networking Comware Switch Series 5140 EI also includes Smart Management Center (SmartMC), an embedded network management tool that can be leveraged at no additional cost by small and medium networks for centralized management and operations. The series can also be managed with HPE Aruba Networking IMC for a single view of your entire network.
What is new supporting point:
It supports IRF technology that enables plug-and-play device aggregation and link aggregation across multiple devices, enhancing network redundancy and resource utilization.
Gigabit Ethernet access switch with static layer 3 routing, RIP, high density 10 GbE uplinks, and POE+ models for voice, video, and wireless.
It includes embedded network management capabilities with Smart Management Center (SmartMC).
It includes energy-saving green design features such as automatic switching of idle ports to energy-saving mode and powering down unused ports. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP + modulslots 2 Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q 10G understøttelse Ja Fuld duplex Ja IP-routing Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja Auto-sensing Ja VLAN understøttelse Ja Dataoverførsel MAC adresselabel 16384 entries Switch kapacitet 128 Gbit/sek. Gennnemløb 95 Mpps Latens (1 Gbps) 3 µs Latens (10 Gps) 5 µs Jumbo Frames support Ja Sikkerhed DHCP funktioner DHCP server Adgangskontrolliste (ACL) Ja IGMP snooping Ja Godkendelse MAC-baseret godkendelse Godkendelsestype HWTACACS, RADIUS Multicast funktioner Multicast-understøttelse Ja Protokoller Routing-protokoller OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2 Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Præstation Fysisk stabling 9 Intern hukommelse 512 MB Flashhukommelse 256 MB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (maks.) 33 W Strømforbrug note 33W (Maximum), 14.5W (Idle) Note: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Strømforsyning note At least 1 power supply is required (not included, must be ordered separately) Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Total Power over Ethernet (PoE) 370 W Andre funktioner Reaktionstid 1000 Mb latency: < 5 µs 10 Gbps latency: < 3 µs Hukommelse og processor 512 MB SDRAM, 256 MB flash Målstyring HPE Aruba Networking IMC - Intelligent Management Center; SmartMC; Command-line interface; Web browser; SNMP manager I/O-porte 24 RJ-45 autosensing 10/100/1000 ports; Duplex: Ports 1-24 support 10BASE-T/100BASE-TX, 1000BASE-T (full only); 2 SFP+ fixed 10GbE ports; 2 x 1/2.5/5/10GBASE-T; 1 RJ-45 serial console port Vægt (efter britisk standard) 2,5 kg (5.51 Pund) Dimensioner (BxDxH) (efter britisk standard) 43,7 x 439,9 x 160 mm (1.72 x 17.3 x 6.3") Driftsbetingelser Driftstemperatur (T-T) -5 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 112,6 BUT/t Vægt & størrelser Bredde 43,6 mm Dybde 440 mm Højde 160 mm Vægt 2,5 kg
