Varenummer: S0M84A
Mere information
-

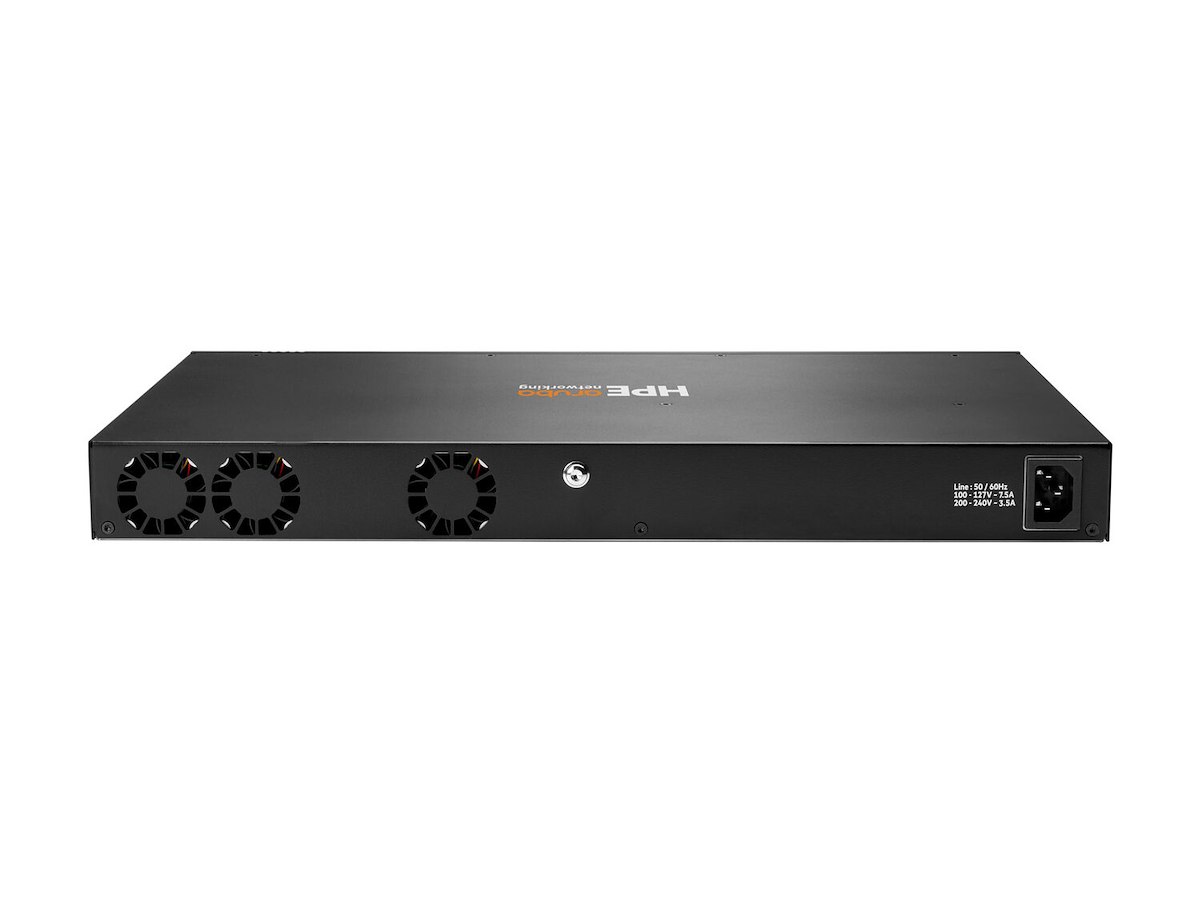

The HPE Aruba Networking CX 6200 Switch Series is a next-generation family of stackable access switches ideal for enterprise branch offices, campuses, and SMB networks. With a cloud-centric design that combines a fully programmable operating system (OS) with the HPE Aruba Networking CX Network Analytics Engine, this switch family extends industry-leading deployment, monitoring, and troubleshooting to the access layer. Prepare your network for future demands with a powerful Gen7 ASIC that delivers an AI and Wi-Fi 7 ready, non-blocking performance. HPE Aruba Networking Virtual Stacking Framework (VSF) allows for stacking of up to 8 switches, providing scale and simplified management. This series includes fixed (CX 6200F) and modular (CX 6200M) switches with built-in high-speed uplinks and up to 1440W of PoE to support Internet of Things (IoT) devices such as security cameras and wireless APs.
What is new supporting point:
Enterprise-class connectivity with support for access control lists (ACLs), robust quality of service (QoS), and common protocols such as static and access OSPF routing
Up to 384 ports of scalability with 8-member HPE Aruba Networking Virtual Stacking Framework (VSF) stacking supported for both 24 and 48-port fixed and modular switches through the CX installer app
Flexible, modular switch models support hot-swappable, redundant power supplies and fans for enhanced resiliency
Real-time insights and actions through a built-in network analytics engine to securely maintain network performance, stability, and security
Dynamic segmentation enhanced with application-based policy to deliver secure access for users and Internet of Things (IoT)
HPE Aruba Networking Switch Multi-Edit Software supports for automation, configuration and verification -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 4 Port til konsol RJ-45/USB Type-C Netværk Netværksstandarder IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ak, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z Port-spejlning Ja Flowkontrol support Ja Link aggregering Ja Auto MDI/MDI-X Ja VLAN understøttelse Ja Optisk fiber Transmissionsafstand (maks.) 10 km Dataoverførsel MAC adresselabel 32768 entries Switch kapacitet 176 Gbit/sek. Gennnemløb 130,9 Mpps Latens (1 Gbps) 2,28 µs Latens (10 Gps) 1,46 µs Jumbo Frames support Ja Sikkerhed Adgangskontrolliste (ACL) Ja IGMP snooping Ja Godkendelse MAC-baseret godkendelse, Webbaseret godkendelse Godkendelsestype RADIUS, TACACS+ Multicast funktioner Multicast-understøttelse Ja Protokoller Routing-protokoller OSPF, OSPFv2, OSPFv3, RIP-2, RIPng IPv4 & IPv6 funktioner IPv4/IPv6 access-control list (ACL) Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Præstation Fysisk stabling 8 Indbygget processer Ja Processormodel ARM Cortex-A72 Processorfrekvens 1800 MHz Hukommelsestype DDR4-SDRAM Intern hukommelse 8000 MB Flashhukommelse 16384 MB Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 200 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug note 76W at 230 VAC Strømforsyning note Fixed power supply Up to 370W of Class 4 PoE Power Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Total Power over Ethernet (PoE) 370 W Andre funktioner Reaktionstid 1 Gbps: 2.28 μSec 10 Gbps: 1.46 μSec Hukommelse og processor CPU: Quad-core Arm Cortex-A72 at 1.8 GHz Memory: 8 GB DDR4 Flash: 16 GB eMMC Målstyring Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software Ventilator Fixed fans I/O-porte 48 x 10/100/1000BASE-T Class 4 PoE ports, supporting up to 30W per port 4 x 100M/1G SFP ports Supports PoE standards IEEE 802.3af, 802.3at 1 x USB-C console port 1 x USB Type-A host port 1 x OOBM 1 x RJ-45 console port Vægt (efter britisk standard) 5,1 kg (11.2 Pund) Dimensioner (BxDxH) (efter britisk standard) 43,9 x 442 x 327,7 mm (1.73 x 17.4 x 12.9") Driftsbetingelser Driftstemperatur (T-T) 0 - 45 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Driftshøjde 0 - 3048 m Vægt & størrelser Bredde 43,9 mm Dybde 442 mm Højde 327 mm Vægt 5,1 kg
