Varenummer: GO-SW-24G/E
Mere information
-

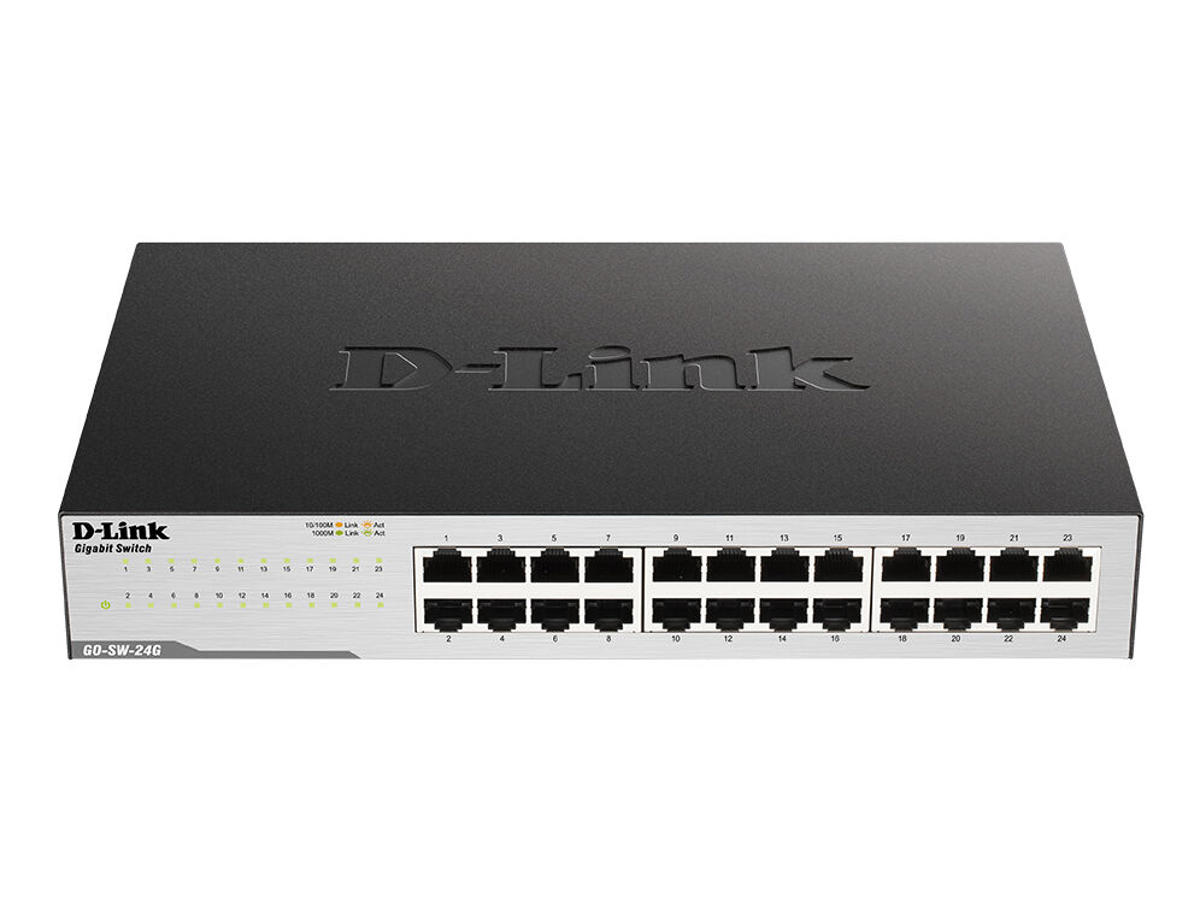

The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
The GO-SW-16G/24G 16/24‑Port Gigabit Easy Desktop Switch is an economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Gigabit Ethernet. It provides 16 or 24 10/100/1000 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. It features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto-MDI/MDIX crossover makes connections a cinch; just plug in your cables and you are ready to go.
Conserve Energy
The GO-SW-16G/24G supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switch can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially. In addition, the switch optimises power usage for each port based on the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The GO-SW-16G/24G is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. -
Administrationsfunktioner Switch-type Ikke administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 24 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 1000BASE-T, 100BASE-TX, 10BASE-T Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto-forhandling Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 48 Gbit/sek. Hastighed for videresendelse 35,71 Mpps Opbevar-og-frem Ja Antal køer 8 Jumbo Frames support Ja Jumbo rammer 9216 Pakke bufferlager 0,512 MB Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal LED-indikatorer Ja Antal blæsere 0 blæser(e) Præstation Gennemsnitstid mellem fejl (MTBF) 302287 t Strømstyring Strømforsyning inkluderet Ja Redundant strømforsyning Ingen Antal strømforsyninger 1 Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 15,4 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 52,54 BUT/t Vægt & størrelser Bredde 280 mm Dybde 180 mm Højde 44 mm Vægt 1,35 kg Emballeringsdata Pakkebredde 245 mm Pakkedybde 438 mm Pakkehøjde 77 mm Pakkevægt 2,3 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 27 cm Forsendelseskasses kassens bredde (indvendig) 41,3 cm Forsendelseskassens længde (indvendig) 46,3 cm Forsendelsesemballage nettovægt 11,5 kg Produkter pr. forsendelseskasse (indvendig) 5 stk Palle bruttovægt (luft) 373,6 kg Antal papkasser pr. palle (luft) 28 stk Antal pr. palle (luft) 140 stk Pallens bruttolængde 110 cm Pallens bruttobredde 120 cm Pallehøjde (luft) 2,02 m Palle bruttovægt (hav) 373,6 kg Antal papkasser pr. palle (hav) 28 stk Antal pr. palle (hav) 140 stk Pallehøjde (hav) 2,02 m Forsendelseskassens bruttovægt (indvendig) 12,4 kg Godkendelser Certificering CE Class A, FCC Class A, VCCI Class A, BSMI, CCC UL, CB, LVD, BSMI, CCC Logistik data Harmoniseret systemkode (HS) 85176990
