Varenummer: GS-5210PLG
Mere information
-
Smartly Manage and Expand Your Gigabit Networks

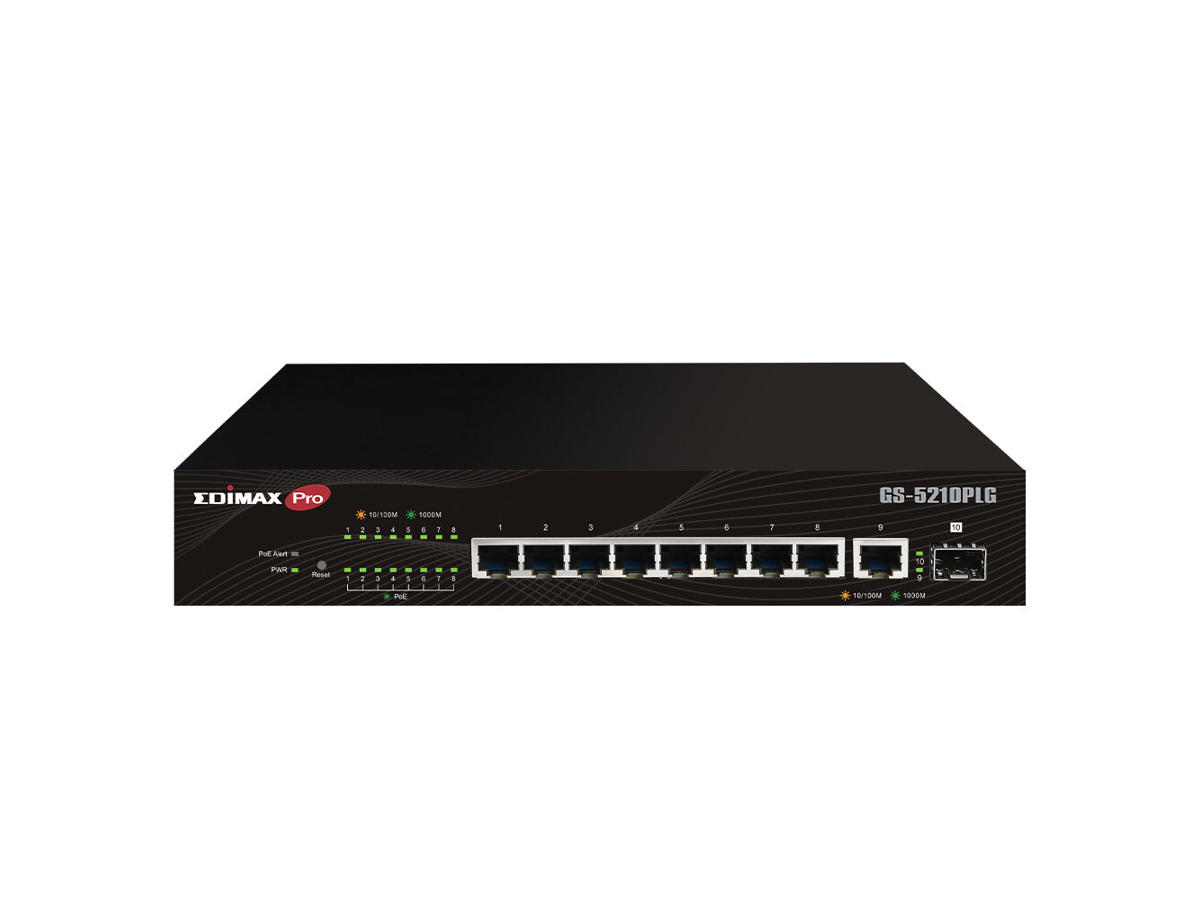

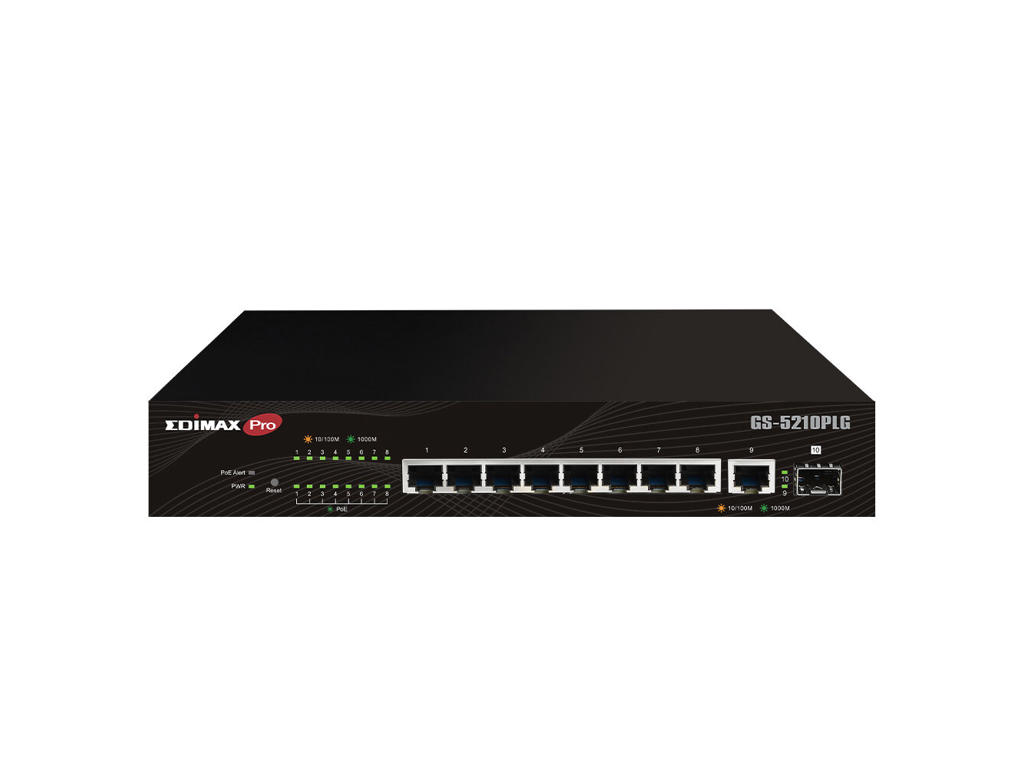

10-Port Gigabit Long Range PoE+ Web Smart Switch GS-5210PLG
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.
PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non-standard PSEs (Power Sourcing Equipments) to the switch.
Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber-optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.
Intuitive and Powerful Smart Tool
The intuitive web-based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.
VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Gigabit Ethernet (kobber) porte, antal 9 Fiberkanal porte 1 Fiber optisk strømstik SFP Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ja Kobber ethernet kabelteknologi 10BASE-T, 100BASE-T, 1000BASE-T Port-spejlning Ja Fuld duplex Ja Flowkontrol support Ja Broadcast stormkontrol Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Optisk fiber Fiber ethernet kabelteknologi 1000Base-X Skiftende optiske modultyper Gigabit Ethernet Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 20 Gbit/sek. Hastighed for videresendelse 14,88 Mpps Jumbo Frames support Ja Jumbo rammer 9216 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 1,5 MB Sikkerhed IGMP snooping Ja Multicast funktioner Multicast-understøttelse Ja Antal filtrerede multicast-grupper 128 Design Stativ-montering Ja Stabelbar Ingen Produktfarve Sort Husmateriale Metal Knap til nulstilling Ja LED-indikatorer Aktivitet, Link, PoE, Strøm, Status Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 100 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 265 mm Dybde 184 mm Højde 44 mm Vægt 1,62 kg Emballage indhold Rack monteringskit Ja Godkendelser Certificering FCC, CE, BSMI
