ONVIF Profile Q Compliant | For Quick Install of Security Devices

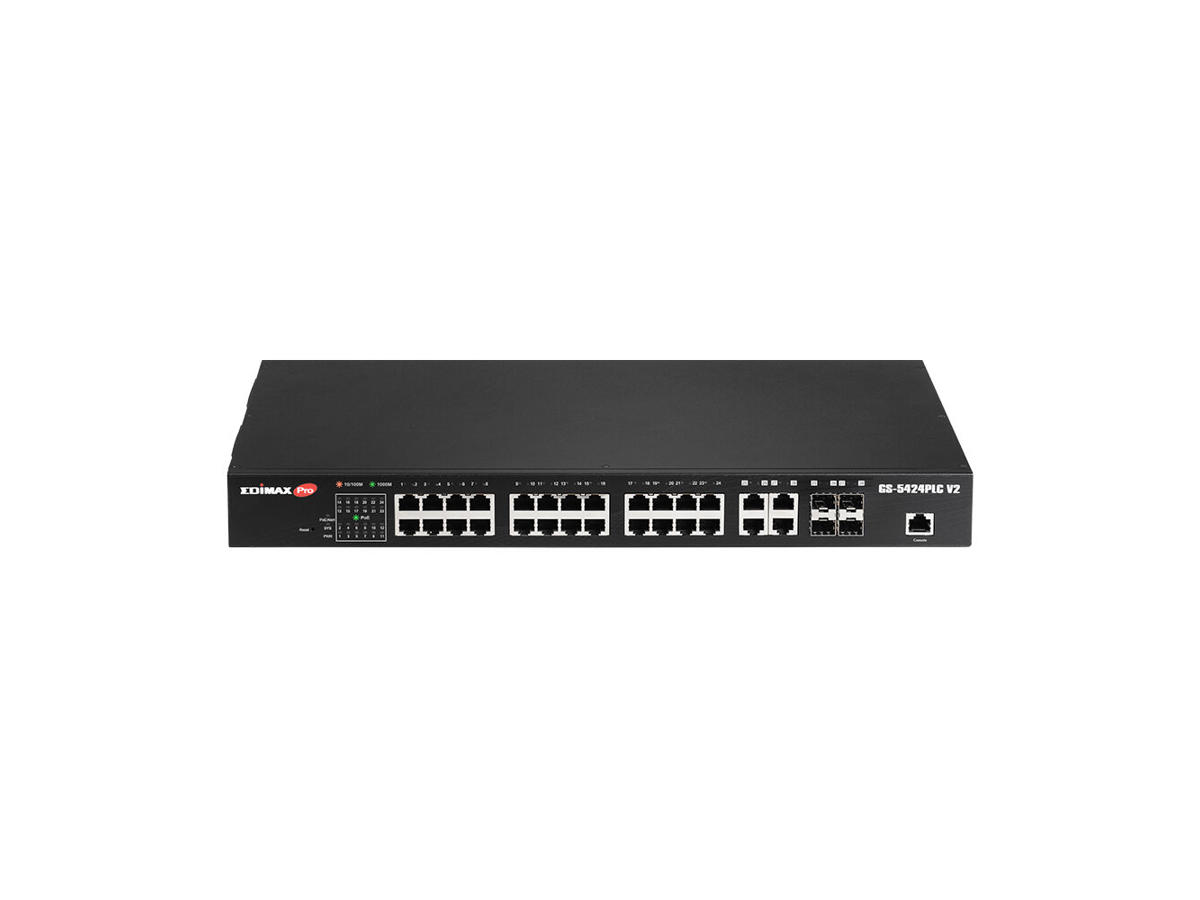

With ONVIF Profile Q standards, the GS-5424PLC V2 provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
Beyond Security | All Fit Together
The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF Profile Q standard, which is compatible with working ONVIF compliant Profiles G/Q/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 56Gbps backplane bandwidth and a forwarding rate of 41.6Mpps, the GS-5424PLC V2 provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5424PLC V2 has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5424PLC V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Administrationsfunktioner | |
Switch-type | Administreret |
Servicekvalitet support (QoS) | Ja |
Webbaseret administration | Ja |
Trafik formning | Ja |
ARP inspektion | Ja |
System hændelseslog | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 28 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (kobber) porte, antal | 28 |
Kombo SFP porte, antal | 4 |
Netværk | |
Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
10G understøttelse | Ingen |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
Port-spejlning | Ja |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Link aggregering | Ja |
Begrænsning af hastighed | Ja |
Spanning tree protokol | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | MAC address-based VLAN, Port-based VLAN, Voice VLAN |
Antal VLAN'er | 200 |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 56 Gbit/sek. |
Hastighed for videresendelse | 41,6 Mpps |
Opbevar-og-frem | Ja |
Antal trunks | 8 |
Antal køer | 8 |
Jumbo Frames support | Ja |
Jumbo rammer | 9000 |
Pakke videresendelsesrate (1 Gbps) | 1488000 pps |
Pakke videresendelsesrate (100 Mbps) | 148800 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Pakke bufferlager | 4,1 MB |
Sikkerhed | |
DHCP funktioner | DHCP snooping |
Adgangskontrolliste (ACL) | Ja |
IGMP snooping | Ja |
Godkendelsestype | AAA, RADIUS |
Algoritmer for køplanlægning | SP, WRR+SP, Weighted Round Robin (WRR) |
Protokoller | |
GARP VLAN registreringsprotokol (GVRP) | Ja |
Design | |
Stativ-montering | Ja |
Stabelbar | Ingen |
Formfaktor | 1U |
Produktfarve | Sort |
Knap til nulstilling | Ja |
LED-indikatorer | Link, Strøm, Status |
Antal blæsere | 2 blæser(e) |
Præstation | |
Firmware kan opgraderes | Ja |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Antal strømforsyninger | 1 |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Strømforbrug (maks.) | 400 W |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) effekt pr. port | 30 W |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Vægt & størrelser | |
Bredde | 270 mm |
Dybde | 441 mm |
Højde | 45 mm |
Vægt | 4,45 kg |
Emballeringsdata | |
Brugervejledning | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
