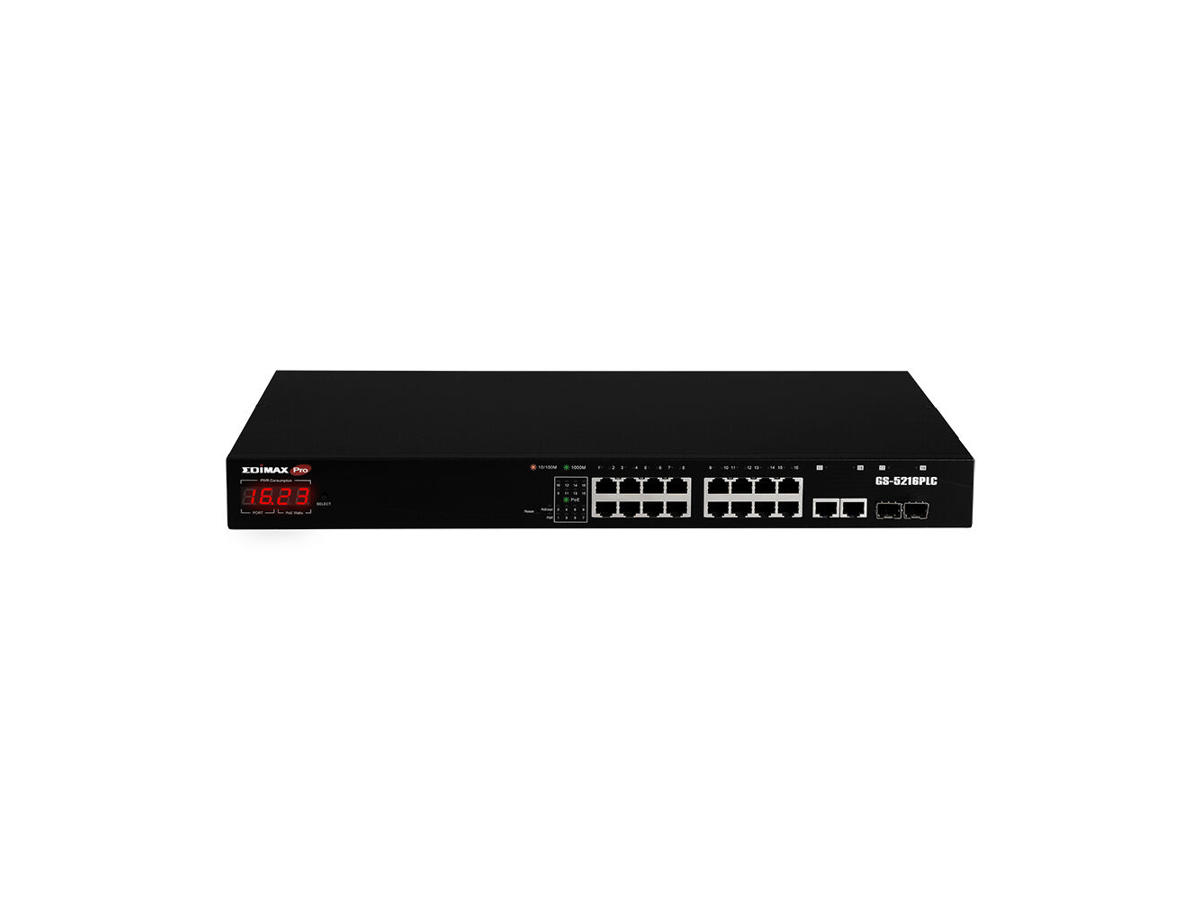

Varenummer: GS-5216PLC
Mere information
-
ONVIF Compliant | For Quick Install of Security Devices
With ONVIF standards, the GS-5216PLC provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
Beyond Security | All Fit Together
The EDIMAX ONVIF switches series greatly enhances IP surveillance network systems; it supports the ONVIF standard, which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 36Gbps backplane bandwidth and a forwarding rate of 26.7Mpps, the GS-5216PLC provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5216PLC has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5216PLC long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
4-digit LED Display | Knowing Instant Power Data
In addition to a web-based GUI to keep track of port power, the GS-5216PLC features an intuitive 4-digit LED display showing its power consumption. System integrators can check the total power budget, power consumption per port, and available power left. All with a single hardware select button.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Kombo SFP porte, antal 2 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Port-spejlning Ja Begrænsning af hastighed Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, Voice VLAN Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 36 Gbit/sek. Hastighed for videresendelse 26,7 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 4,1 MB Sikkerhed DHCP funktioner DHCP snooping IGMP snooping Ja Algoritmer for køplanlægning WRR+SP, Weighted Round Robin (WRR) Design Produktfarve Sort Knap til nulstilling Ja LED-indikatorer Ja Antal blæsere 1 blæser(e) Præstation Firmware kan opgraderes Ja Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 16 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 280 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 441 mm Dybde 196 mm Højde 44 mm Vægt 3,03 kg Logistik data Harmoniseret systemkode (HS) 85176990
