Varenummer: GS-5654LX
Mere information
-
Empower your Enterprise with EDIMAX Intelligent Network Switches

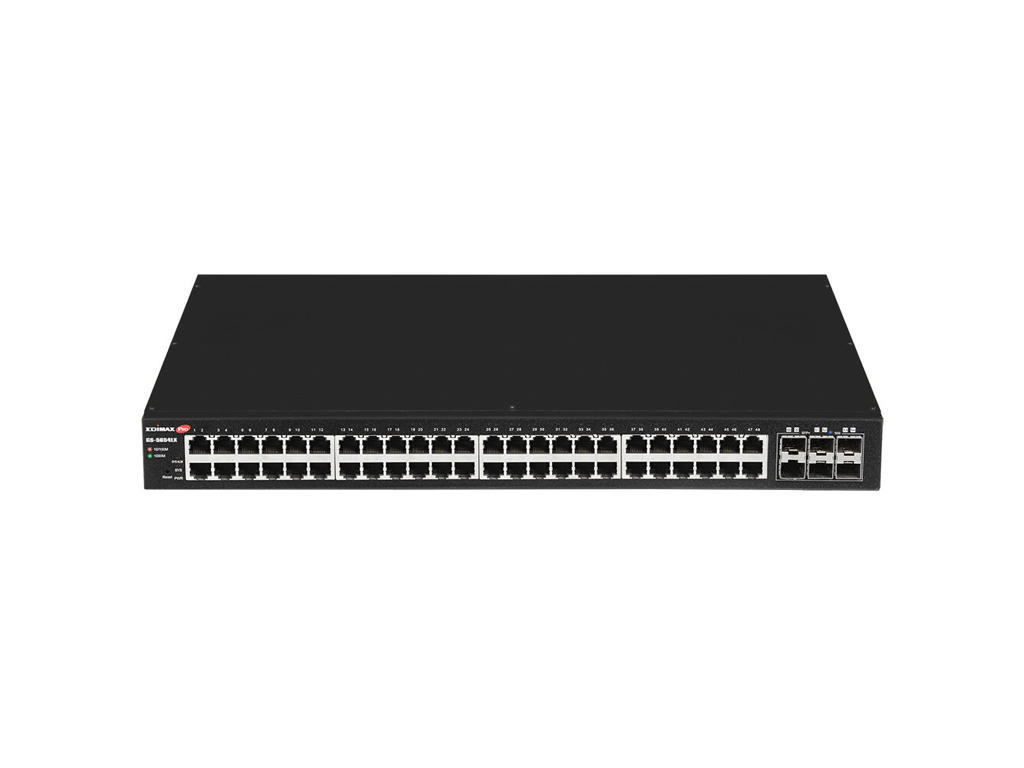

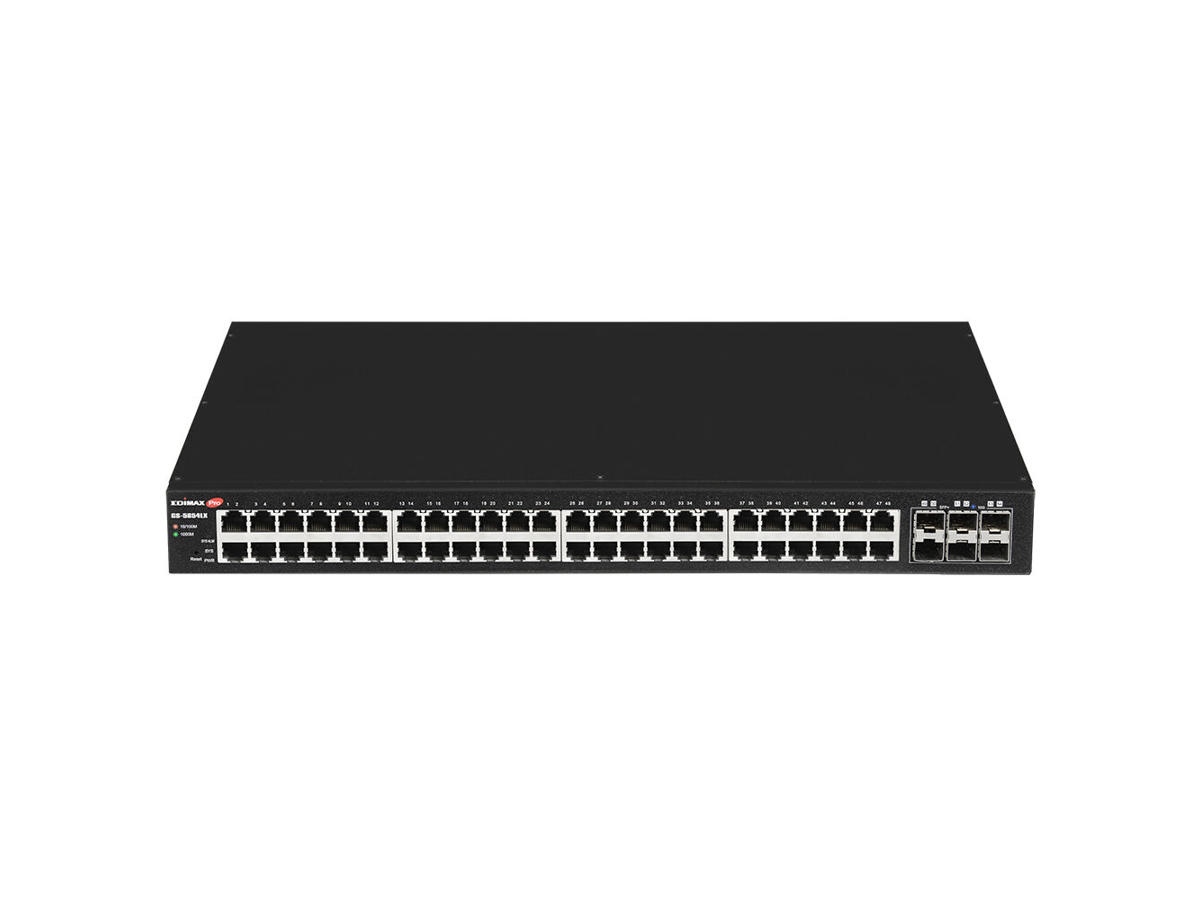

The EDIMAX Pro GS-5654LX web-smart switch comes with a web-based user interface, 48 Gigabit ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE | 6 x 10GbE SFP+ Uplink
48 GbE ports for high-speed connections and up to 60 Gbps of fiber-optic uplinking capability allowing the GS-5654LX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Intelligent Thermal Control | Power Saving Implementation
With a dedicated and intelligent microchip for system cooling control, the GS-5654LX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP + modulslots 6 Netværk Netværksstandarder IEEE 802.11az, IEEE 802.11d, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ja Port-spejlning Ja Begrænsning af hastighed Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, Voice VLAN Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 216 Gbit/sek. Gennnemløb 160,7 Mpps Hastighed for videresendelse 160,7 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 12000 Pakke videresendelsesrate (1 Gbps) 14880000 pps Pakke videresendelsesrate (100 Mbps) 14800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Sikkerhed DHCP funktioner DHCP snooping IGMP snooping Ja Algoritmer for køplanlægning SP, WRR+SP, Weighted Round Robin (WRR) Design Produktfarve Sort Knap til nulstilling Ja LED-indikatorer Link, System Antal blæsere 1 blæser(e) Præstation Firmware kan opgraderes Ja Strømstyring Strømkilde Vekselstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 441 mm Dybde 270 mm Højde 45 mm Vægt 4,05 kg Logistik data Harmoniseret systemkode (HS) 85176990
