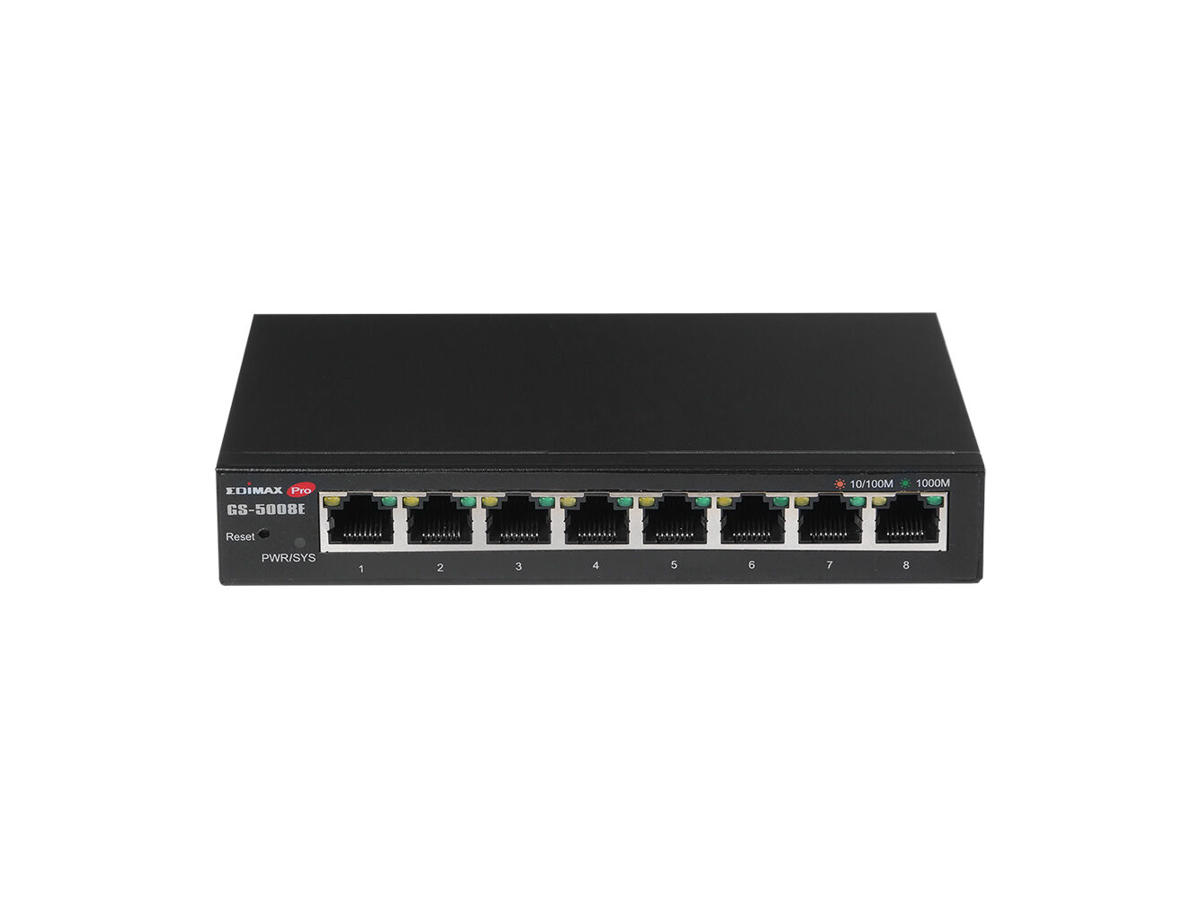

Varenummer: GS-5008E
Mere information
-
VLAN Support
Helps separate traffic within a business such as isolating resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high-bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x Port-spejlning Ja Link aggregering Ja Broadcast stormkontrol Ja VLAN understøttelse Ja Antal VLAN'er 8 Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 16 Gbit/sek. Hastighed for videresendelse 11,9 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 1,53 MB Sikkerhed IGMP snooping Ja Loop beskyttelse Ja Algoritmer for køplanlægning Strict Priority Queue (SPQ), WFQ Multicast funktioner Multicast-understøttelse Ja Multicast funktioner Multicast traffic suppression Design Produktfarve Sort Husmateriale Metal Knap til nulstilling Ja LED-indikatorer Ja Kan monteres på væggen Ja Præstation Ventilatorfri Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Vægt & størrelser Bredde 155 mm Dybde 85 mm Højde 26 mm Vægt 325 g Godkendelser Certificering CE, FCC, BSMI
