High-Speed and Long-Range Enterprise Network

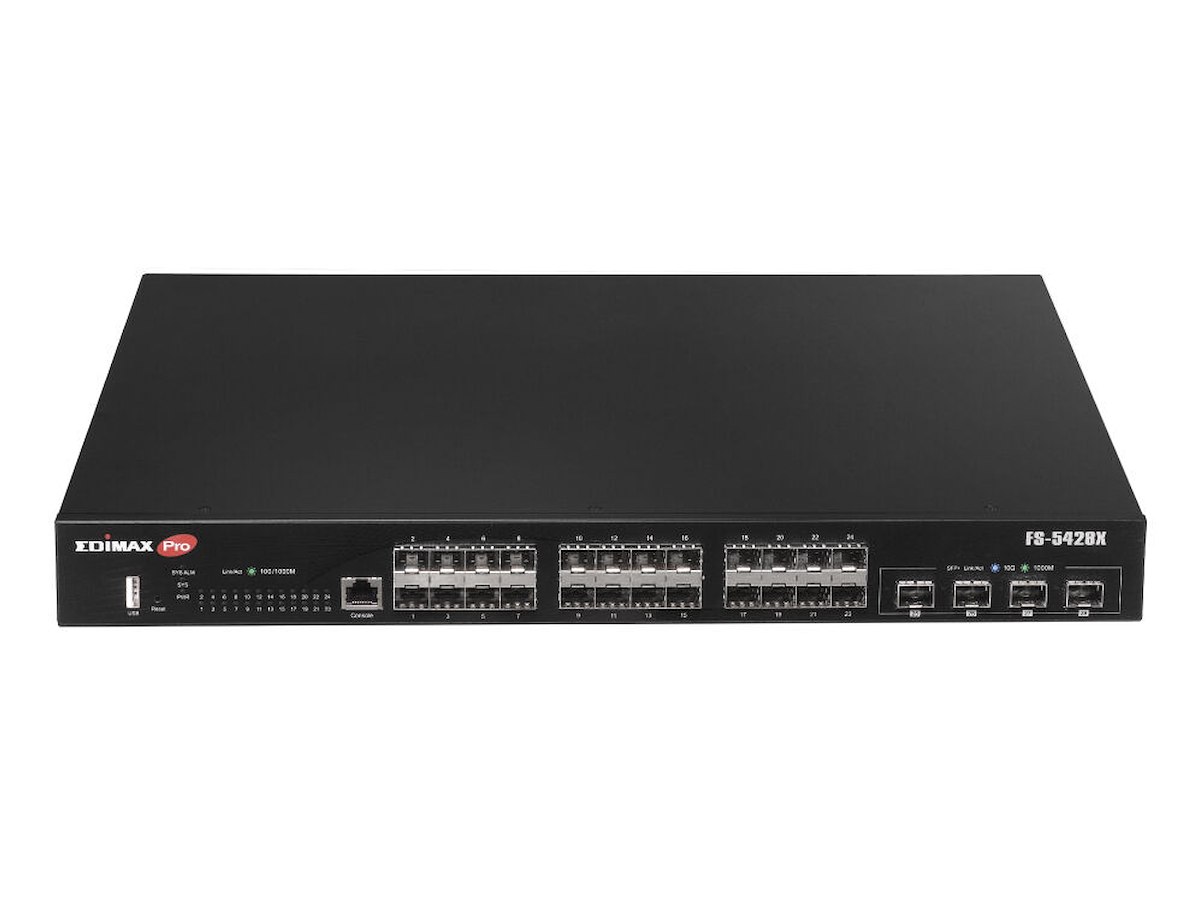

Full Fiber-Optic Kilometer-Grade Switch
The 24-port Gigabit SFP and 4-port 10GbE SFP+ uplink connectivity designed for enterprise and SMB networks, provides up to 40Gbps of fiber-optic uplinking capacity and fast and reliable connectivity for demanding tasks such as data backup, video conferencing, and more.
Intuitive and Powerful Smart Layer 2+ Management
The FS-5428X is designed for small-and-medium business (SMB) and enterprise networks that require smart layer 2+ network management with advanced essential features such as Static Routing, Inter-VLAN, SNMP v1/v2c/v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, Link Aggregation, Broadcast Storm Control, Loop Detection/Prevention, IPv4/IPv6, Port Trunking, Port Mirroring and more. Further optimizing the performance of business networks.
Network Scenarios
The multiple SFP ports allow the FS-5428X to be easily deployed in data centers with multiple server network integrations. Connection between physical locations such as branches and retails are made possible. Network deployment can also be made for remote workgroup environments such as factories, business buildings, industrial parks, and even residential communities
-
Administrationsfunktioner Switch-type Administreret Switch lag L2+ Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porttype Ingen Antal installerede SFP moduler 28 Antal installerede SFP+ moduler 4 Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ab, IEEE 802.2ad, IEEE 802.3az 10G understøttelse Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Port-based VLAN, Voice VLAN Antal VLAN'er 4096 Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 128 Gbit/sek. Hastighed for videresendelse 95,2 Mpps Jumbo Frames support Ja Jumbo rammer 12000 Pakke bufferlager 16 MB Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal Antal blæsere 3 blæser(e) Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Antal strømforsyninger 1 Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 441 mm Dybde 270 mm Højde 44 mm Vægt 3,82 kg Godkendelser Certificering FCC, CE, BSMI
