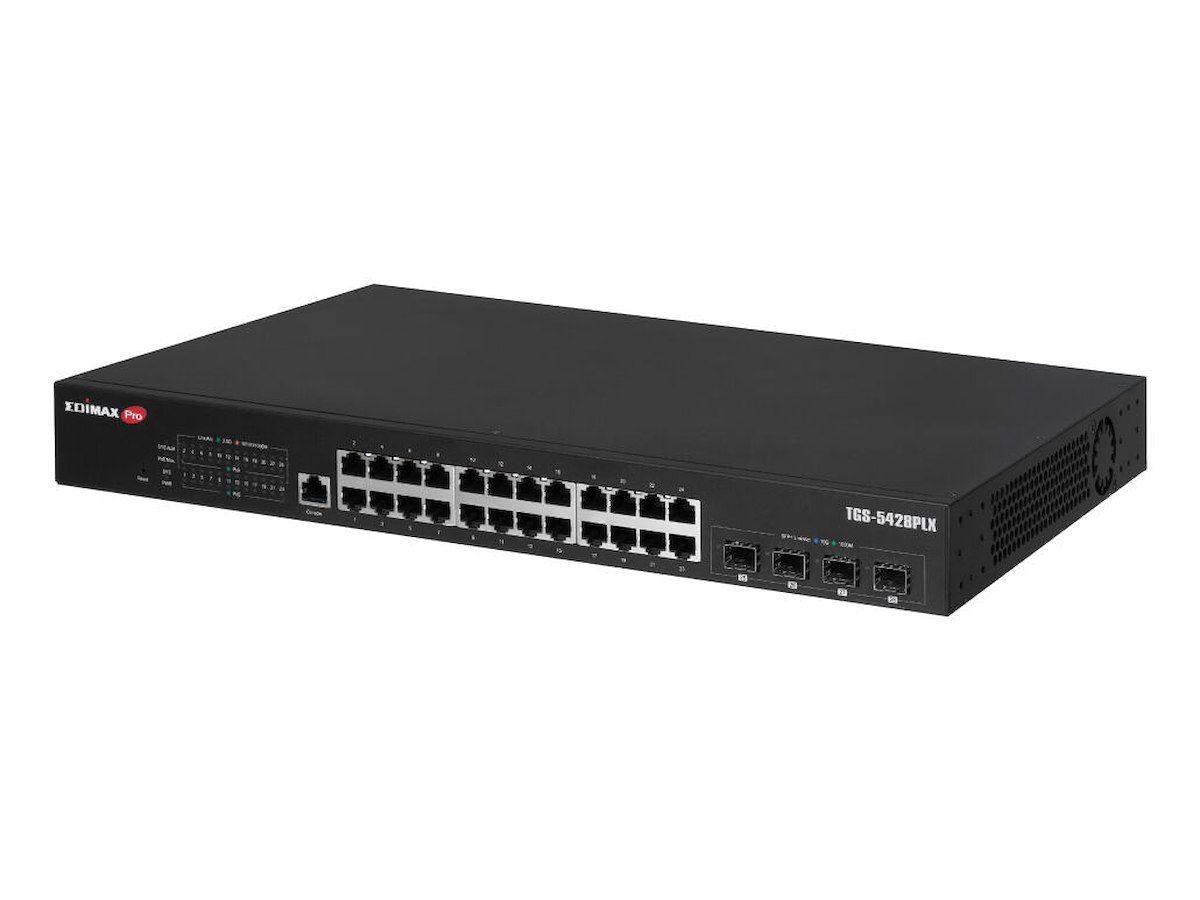

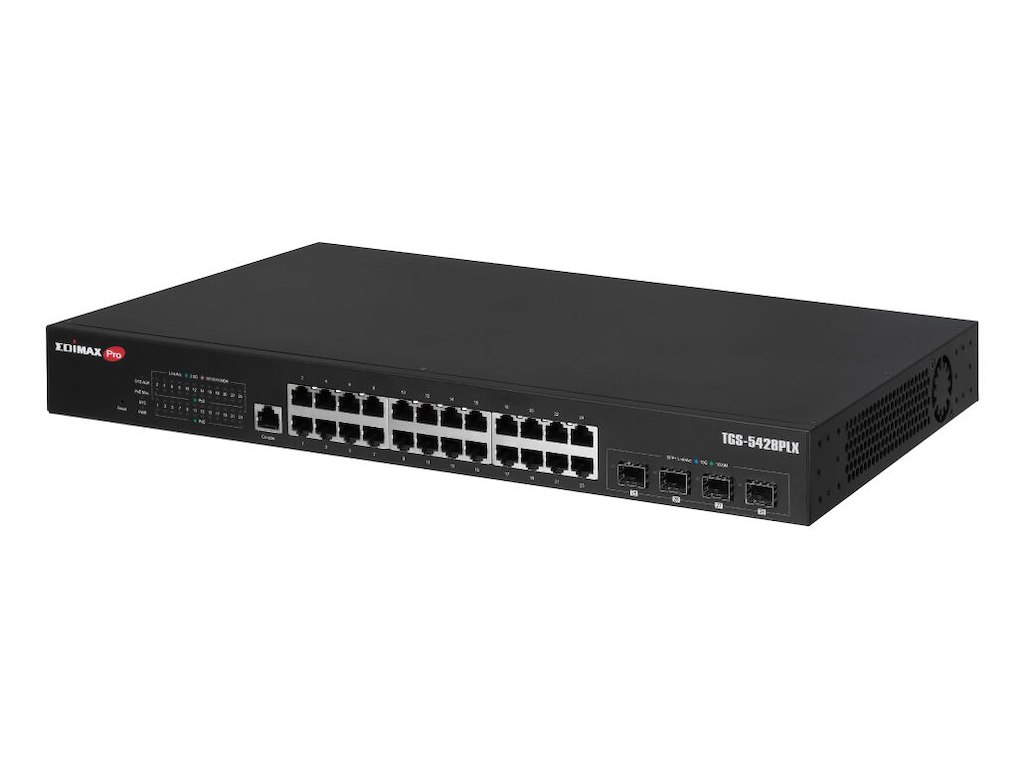

Varenummer: TGS-5428PLX
Mere information
-
Easily Upgrade to Multi-Gigabit New Era
The 2.5GbE L2 Managed Surveillance Switch provides system integrators and installers easy configuration, automatic quick discovery, and products control on the network. Experience the 2.5GbE high-speed performance and ease of mind with security.
Beyond Security, All Fits Together
Onc-Click Surveillance VLAN
The EDIMAX Surveillance VLAN switches series greatly enhances IP surveillance network systems; it supports fast and easy system settings, device discovery, and user authentication. Just plug and play.
For SMB Surveillance Networks
Ideal for use in environments that require extensive IP-based network surveillance system deployment. Such as office spaces/business buildings, residential buildings/community, parking lots, shopping centers, campus, hotels, hospitals, airport/transportation stations, construction sites, casinos, theme parks/amusement parks and more.
Power Your PoE Devices
Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W per PoE port, total PoE power budget up to 400W per switch. -
Administrationsfunktioner Switch-type Administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500) Antal 2,5G Ethernet-porte (kobber) 24 Antal SFP + modulslots 4 Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1ad, IEEE 802.3ad, IEEE 802.3az 10G understøttelse Ja Port-spejlning Ja Link aggregering Ja Broadcast stormkontrol Ja Begrænsning af hastighed Ja Spanning tree protokol Ja Dataoverførsel MAC adresselabel 32000 entries Switch kapacitet 200 Gbit/sek. Hastighed for videresendelse 169,28 Mpps Jumbo Frames support Ja Jumbo rammer 12000 Pakke bufferlager 16 MB Sikkerhed DHCP funktioner DHCP snooping Protokoller Administrationsprotokoller SNMP v1/v2c/v3 Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Husmateriale Metal Antal blæsere 3 blæser(e) Præstation Firmware kan opgraderes Ja Strømstyring Strømkilde AC/PoE Strømforsyning inkluderet Ja Antal strømforsyninger 1 Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 441 mm Dybde 270 mm Højde 44 mm Vægt 4,45 kg Godkendelser Certificering FCC, CE
