Varenummer: IGS-5208
Mere information
-

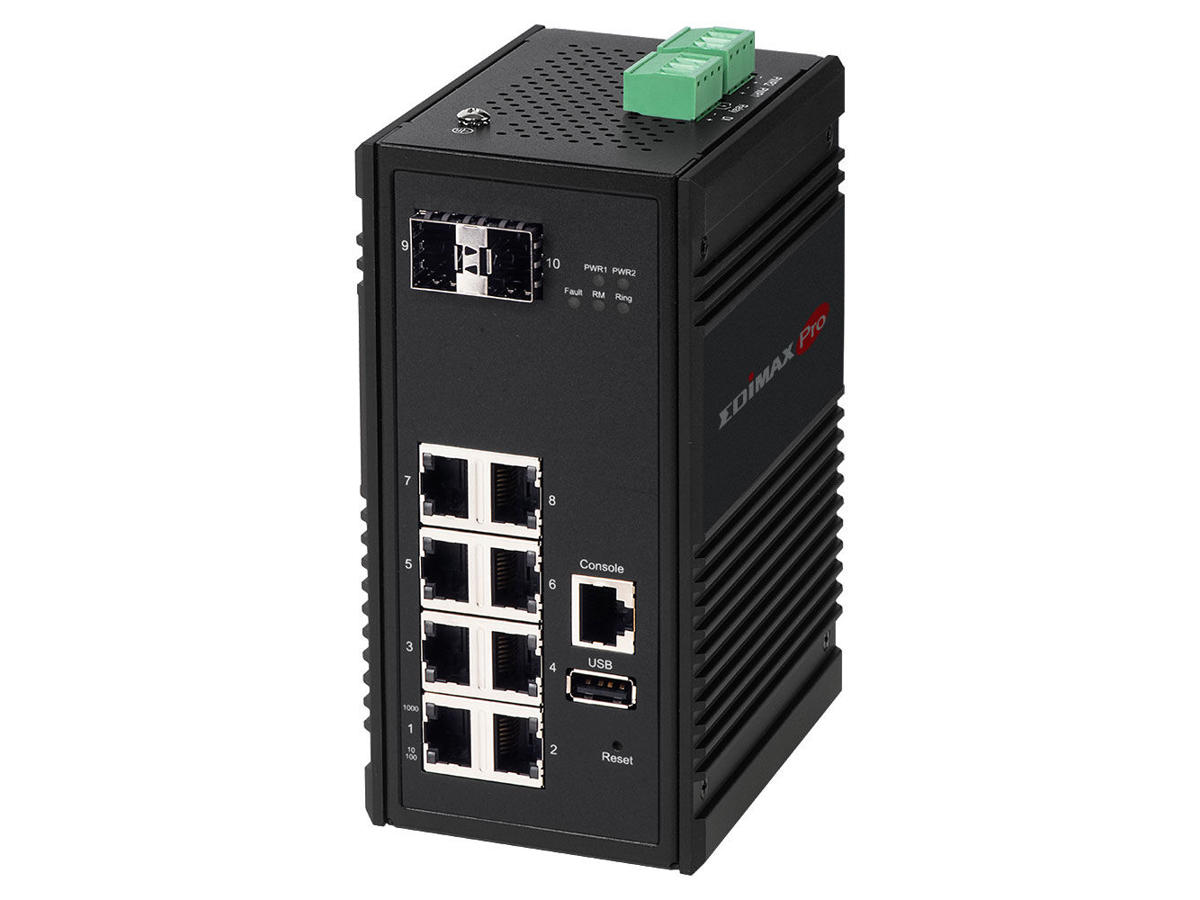

Robust Industrial Managed Switch
Durable, Reliable, Flexible & Smart Network for Harsh Environments.
Certified Ruggedized Design
Equipped with anti-dust IP30-rated aluminum alloy case, the switch is designed and certified to withstand a high degree of vibration, shock, free-fall protection and against ESD/EMI surge for harsh environments.*
High/Low Temp. Resistance
The industrial switch operates with a wide temperature range from -40°C to 75°C (-40°F to 167°F) for industrial and outdoor network deployment with capability of withstanding the extreme hot and freezing environments.
Reliable Dual Redundancy
Supports network redundancy with RSTP, MSTP, ERPS, LACP and power redundancy with two power inputs to ease the unexpected risk and ensure stable and reliable network service quality.
*The switch also has industrial-grade certification of EMC (Electromagnetic Compatibility) 61000-6-2, 61000-6-4 and EMS (Electromagnetic Sensitivity) IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field).
Noteworthy Benefits for Your Network
Edimax Pro industrial switch series is designed for easy, flexible deployment and management with ever better cost efficiency by reducing downtime, extending system lifecycle and lowering maintenance costs with more features as below but not last.
USB Console Port
Designed with the USB console port for convenient system backup, restoration and upgrade to enhance maintenance efficiency and reduce system downtime.
Long Range Fiber Link
Featuring with dual-speed fiber SFP slots, connects to uplink to backbone core switch and monitoring data center in long distance from 550M to 30KM.*
Smart & Secure Mgmt.
The industrial switch features smart and simple network monitoring tools that allow for improved network efficiency and security.
*The maximum fiber optic cable distance is subject to the SFP transceiver specification.
For Harsh Environments in IIoT and Smart City
Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Fiber optisk strømstik SFP Port til konsol RJ-45 Antal USB 2.0-porte 1 Relæ udgange 1 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Port-spejlning Ja Fuld duplex Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner Tagged VLAN, Port-based VLAN Antal VLAN'er 4096 Optisk fiber Fiber ethernet kabelteknologi 1000BASE‑LX, 1000BASE‑SX Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 20 Gbit/sek. Hastighed for videresendelse 14,88 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 16000 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Sikkerhed DHCP funktioner DHCP server, DHCP relay, DHCP client Adgangskontrolliste (ACL) Ja IGMP snooping Ja Sikkerhedsalgoritmer SNMP, SNMPv3, SSH-2, SSL/TLS Beskyttelse af adgangskode Ja Algoritmer for køplanlægning SP, SPQ, WRR+SP, Weighted Round Robin (WRR) Multicast funktioner Multicast-understøttelse Ja Protokoller IPv4 & IPv6 funktioner Dual stack IPv4/IPv6 Design Produktfarve Sort Husmateriale Aluminium Knap til nulstilling Ja LED-indikatorer Aktivitet, Link, Strøm Kode for international beskyttelse (IP) IP30 DIN-skinne montering Ja Elektromagnetisk kompatibilitet 61000-6-2, 61000-6-4 Præstation Firmware kan opgraderes Ja Telnet Ja Gennemsnitstid mellem fejl (MTBF) 100000 t Strømstyring DC indgangsspænding 12 - 48 V Strømforbrug (maks.) 12,24 W Strømbeskyttelsesfunktioner Overbelastning, Omvendt polaritet Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -40 - 75 °C Opbevaringstemperatur (T-T) -40 - 80 °C Relativ luftfugtighed ved drift (H-H) 10 - 95% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 145 mm Dybde 72,2 mm Højde 113 mm Vægt 850 g Godkendelser Certificering IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8; RoHS; FCC 15 B A, CE EN 55032 A; IEC60068-2-6; IEC60068-2-27; IEC60068-2-32 Logistik data Harmoniseret systemkode (HS) 85176990
