Varenummer: IGS-1210P
Mere information
-
Robust Industrial Gigabit Switch
Durable and Reliable Network for Harsh
Durable Performance Network that You Can Rely on
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power source. Further avoiding damage done to the switch and connected devices.

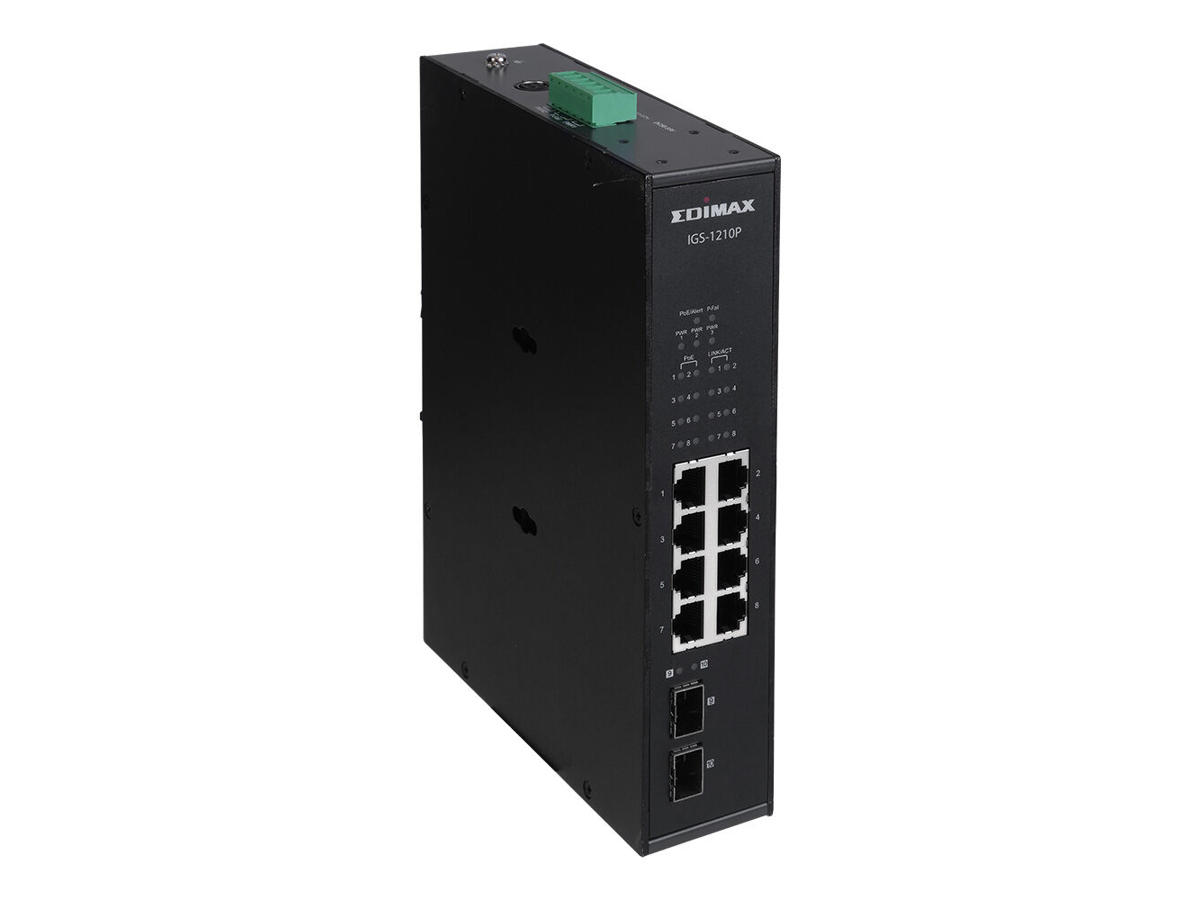

EDIMAX IGS-1210P Industrial 10-Port Gigabit PoE+ DIN-Rail Switch with 2 SFP Ports, wide temperature range
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C to 70°C (-4°F to 158°F) for industrial network deployment in the extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for whether DIN-rail mount or wall-mount deployment.
For Harsh Environments in IIoT and Smart City
Ideal solution for industrial networks such as automotive, factory automation, oil and gas, mining, military, transportation, substation, energy and outdoor applications of railways, roads, tunnels, smart cities, city surveillance and traffic monitoring. -
Administrationsfunktioner Switch-type Ikke administreret Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Gigabit Ethernet (kobber) porte, antal 8 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Flowkontrol support Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Dataoverførsel MAC adresselabel 2048 entries Switch kapacitet 20 Gbit/sek. Opbevar-og-frem Ja Jumbo Frames support Ja Jumbo rammer 9000 Design Stativ-montering Ingen Produktfarve Sort Kode for international beskyttelse (IP) IP30 Kan monteres på væggen Ja DIN-skinne montering Ja Præstation Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 1000000 t Strømstyring Strømkilde DC Redundant strømforsyning Ja Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 240 W Driftsbetingelser Driftstemperatur (T-T) -20 - 70 °C Opbevaringstemperatur (T-T) -40 - 85 °C Relativ luftfugtighed ved drift (H-H) 10 - 95% Relativ luftfugtighed ved opbevaring (H-H) 10 - 95% Godkendelser Compliance-certifikater CE Certificering FCC, BSMI Bæredygtighed Overholdelse af bæredygtighed Ja
