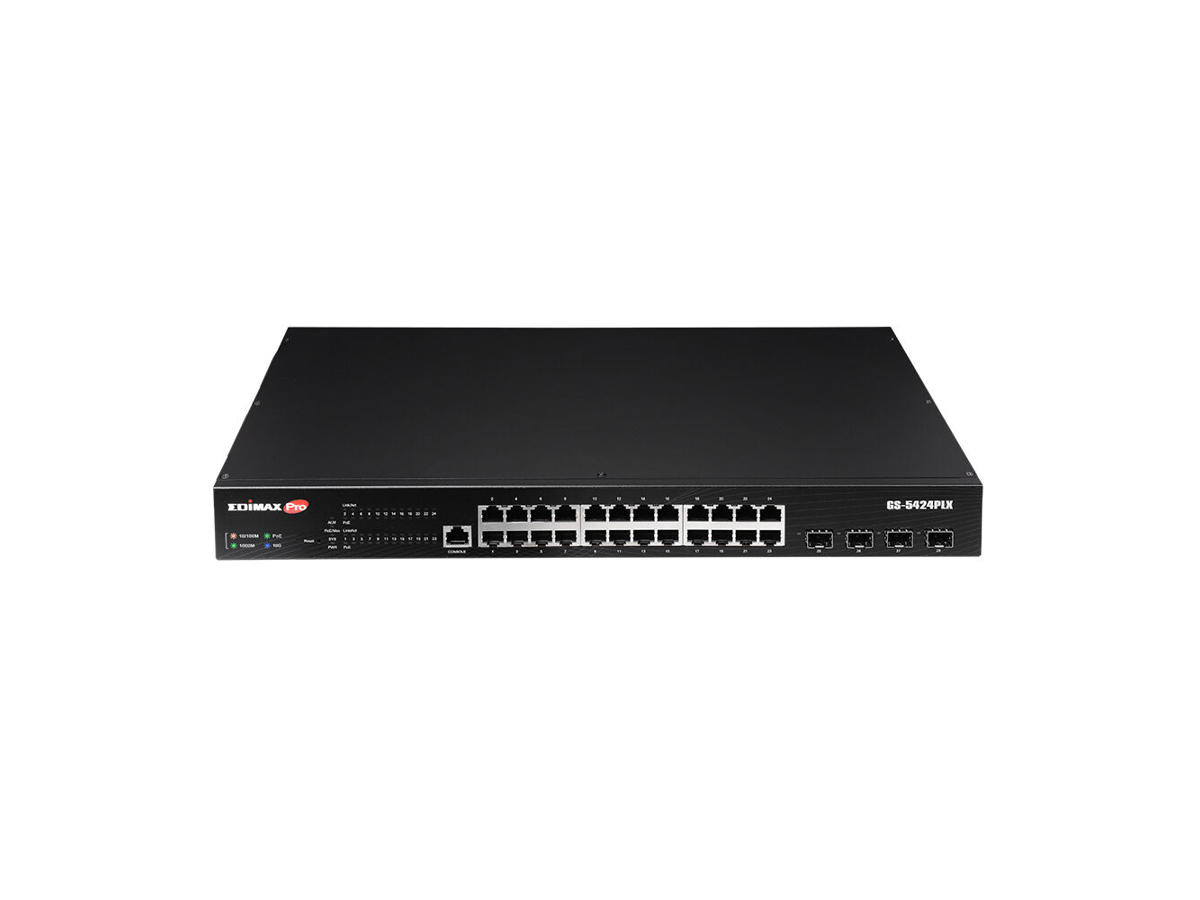

Varenummer: GS-5424PLX
Mere information
-
ONVIF Profile Q Compliant | For Quick Install of Security Devices
With ONVIF Profile Q standards, the GS-5424PLX provides system integrators easy setup, quick discovery, configuration, and control of ONVIF conformant products on the network. Just plug and play.
Powerful 10GbE | 4 x 10GbE SFP+ Uplink
24 GbE ports for high-speed connections and up to 40 Gbps of fiber-optic uplinking capability allowing the GS-5424PLX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environment for larger network access.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 128Gbps backplane bandwidth and a forwarding rate of 95.2Mpps, the GS-5424PLX provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5424PLX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5424PLX long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Webbaseret administration Ja ARP inspektion Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP + modulslots 4 Port til konsol RJ-45 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ja Port-spejlning Ja Broadcast stormkontrol Ja VLAN understøttelse Ja Vituelle LAN funktioner VLAN Identifier ( VLAN ID) Antal VLAN'er 200 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 128 Gbit/sek. Hastighed for videresendelse 95,2 Mpps Jumbo Frames support Ja Jumbo rammer 12000 Pakke videresendelsesrate (1 Gbps) 1448000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Sikkerhed DHCP funktioner DHCP snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja Statisk port, sikkerhed Ja Protokoller IPv4 & IPv6 funktioner Dual stack IPv4/IPv6 Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm, Status Antal blæsere 2 blæser(e) Præstation Firmware kan opgraderes Ja Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 400 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 441 mm Dybde 270 mm Højde 45 mm Vægt 4,36 kg Godkendelser Certificering FCC Class A, CE Logistik data Harmoniseret systemkode (HS) 85176990
