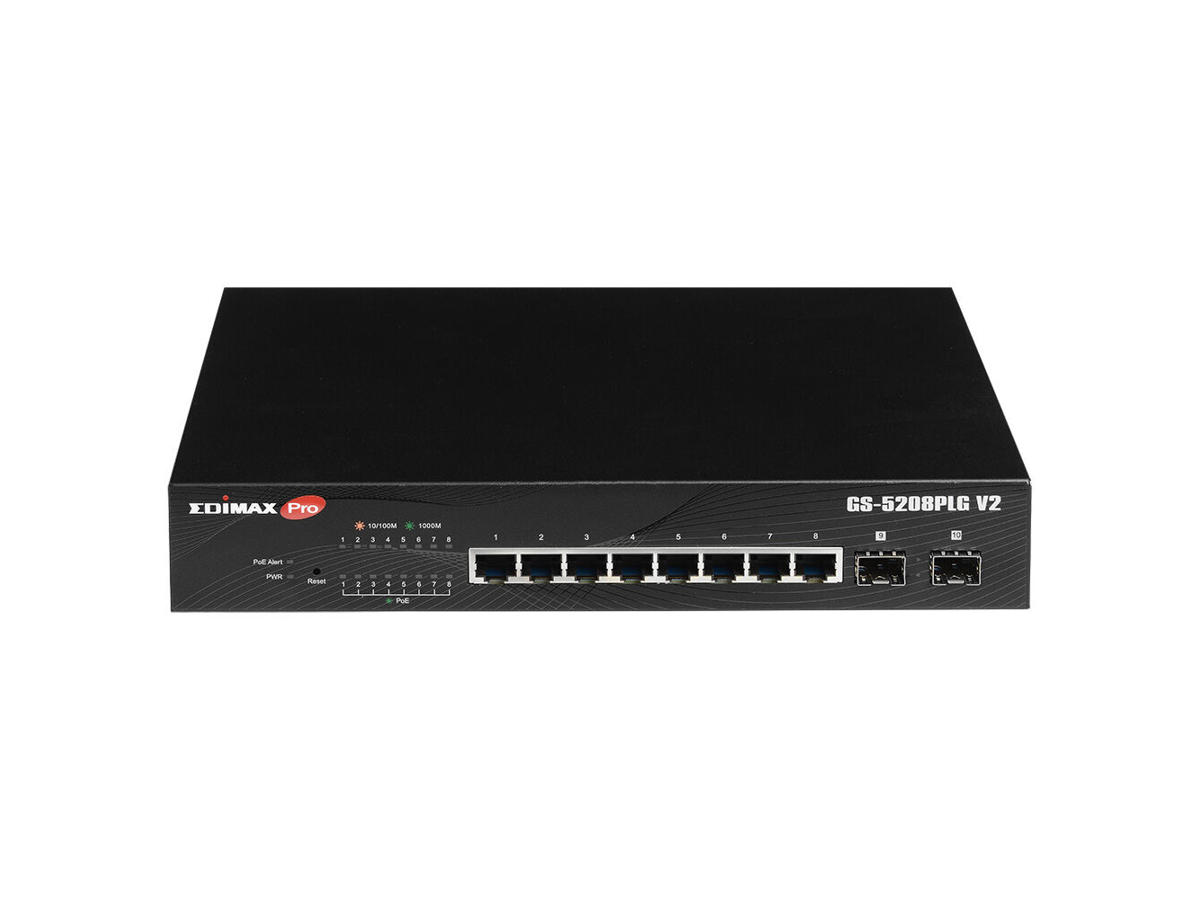

The EDIMAX Pro GS-5208PLG V2 is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG V2 is a superb choice to boost your network environment’s performance and efficiency.
Powerful Optical GbE | 2 x Gigabit SFP Uplink
8 GbE ports for high-speed connections and up to 2 Gbps of fiber-optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.
Web Smart Management
The web-based management features include QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-T, 1000BASE-T Port-spejlning Ja Broadcast stormkontrol Ja VLAN understøttelse Ja Antal VLAN'er 10 Optisk fiber Fiber ethernet kabelteknologi 1000Base-X Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 20 Gbit/sek. Opbevar-og-frem Ja Antal køer 4 Jumbo Frames support Ja Jumbo rammer 9200 Pakke videresendelsesrate (1 Gbps) 1488000 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 1,5 MB Sikkerhed IGMP snooping Ja Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Produktfarve Sort Husmateriale Metal Knap til nulstilling Ja LED-indikatorer Ja Præstation Firmware kan opgraderes Ja Ventilatorfri Ja Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 85 W Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 10 - 90% Vægt & størrelser Bredde 265 mm Dybde 184 mm Højde 44 mm Vægt 1,42 kg Godkendelser Certificering FCC, CE Logistik data Harmoniseret systemkode (HS) 85176990
