8-Port Gigabit Desktop Switch
- Complies with IEEE802.3, IEEE802.3u and IEEE802.3ab standards
- Supports auto MDI/MDI-X crossover detecting and auto correction
- Supports full and half duplex for 10/100Mbps, and full duplex for 1000Mbps
- Wire-speed packet filtering and forwarding rate
- Store-and-forward architecture filters fragment & CRC error packets
- Supports jumbo frames up to 9K bytes
- Supports IEEE802.3az energy efficient Ethernet function
- Supports optional power supply either through a USB port or the AC power supply. (*USB power cable included. Requires 1A current-USB adapter not included.)

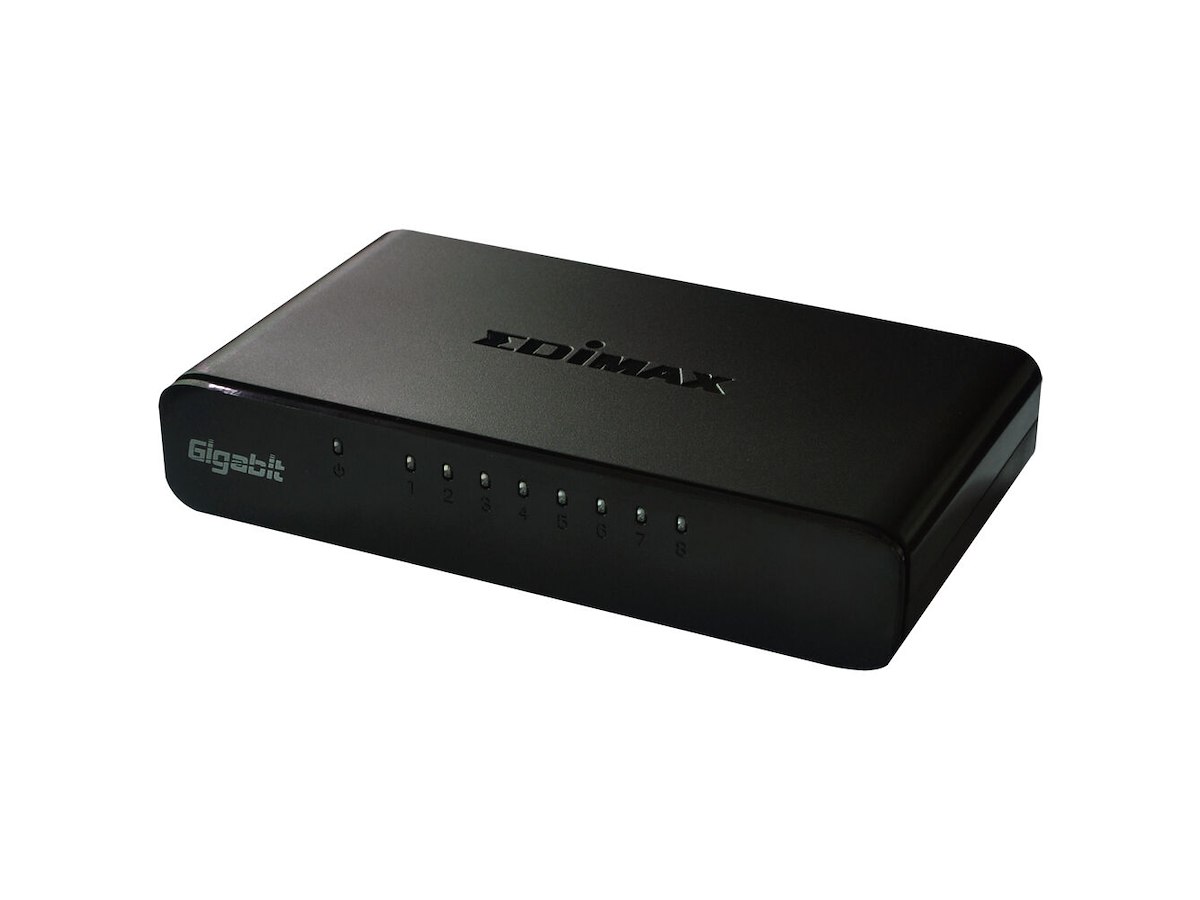

The ES-5800G V3 is a 10/100/1000 Mbps Gigabit Desktop unmanaged switch designed to enhance network performance in a compact form factor, and with outstanding performance and high efficiency. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment.
The ES-5800G V3 with plastic housing offers a cost-effective Gigabit Ethernet solution for users to easily extend home networks and to fulfill their online gaming, multimedia transferring and streaming needs. The plug-and-play design allows users to easily connect network devices such as PCs, network storages and print servers to the home network without manual configuration involved.
| Administrationsfunktioner | |
| Switch-type | Ikke administreret |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (kobber) porte, antal | 8 |
| Strømstik | DC-in-stik |
| Netværk | |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Kobber ethernet kabelteknologi | 1000BASE-T, 100BASE-TX, 10BASE-T |
| Understøttede kabeltyper | Cat3, Cat4, Cat5 |
| Fuld duplex | Ja |
| Flowkontrol support | Ja |
| Auto MDI/MDI-X | Ja |
| Dataoverførsel | |
| MAC adresselabel | 8000 entries |
| Hastighed for videresendelse | 1,488 Mpps |
| Opbevar-og-frem | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Sikkerhed | |
| Filtrering af MAC-adresser | Ja |
| Design | |
| Produktfarve | Sort |
| LED-indikatorer | Aktivitet, Link, Strøm |
| Præstation | |
| Bufferstørrelse | 128 KB |
| Plug and play | Ja |
| Strømstyring | |
| DC indgangsspænding | 5 V |
| Indgangsstrøm | 1 A |
| Strømforbrug (maks.) | 3 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
| Vægt & størrelser | |
| Bredde | 76 mm |
| Dybde | 136 mm |
| Højde | 25,5 mm |
| Vægt | 148 g |
| Emballage indhold | |
| Kabler inkluderet | USB |
| Brugervejledning | Ja |
| Godkendelser | |
| Certificering | CE, FCC Class B |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
