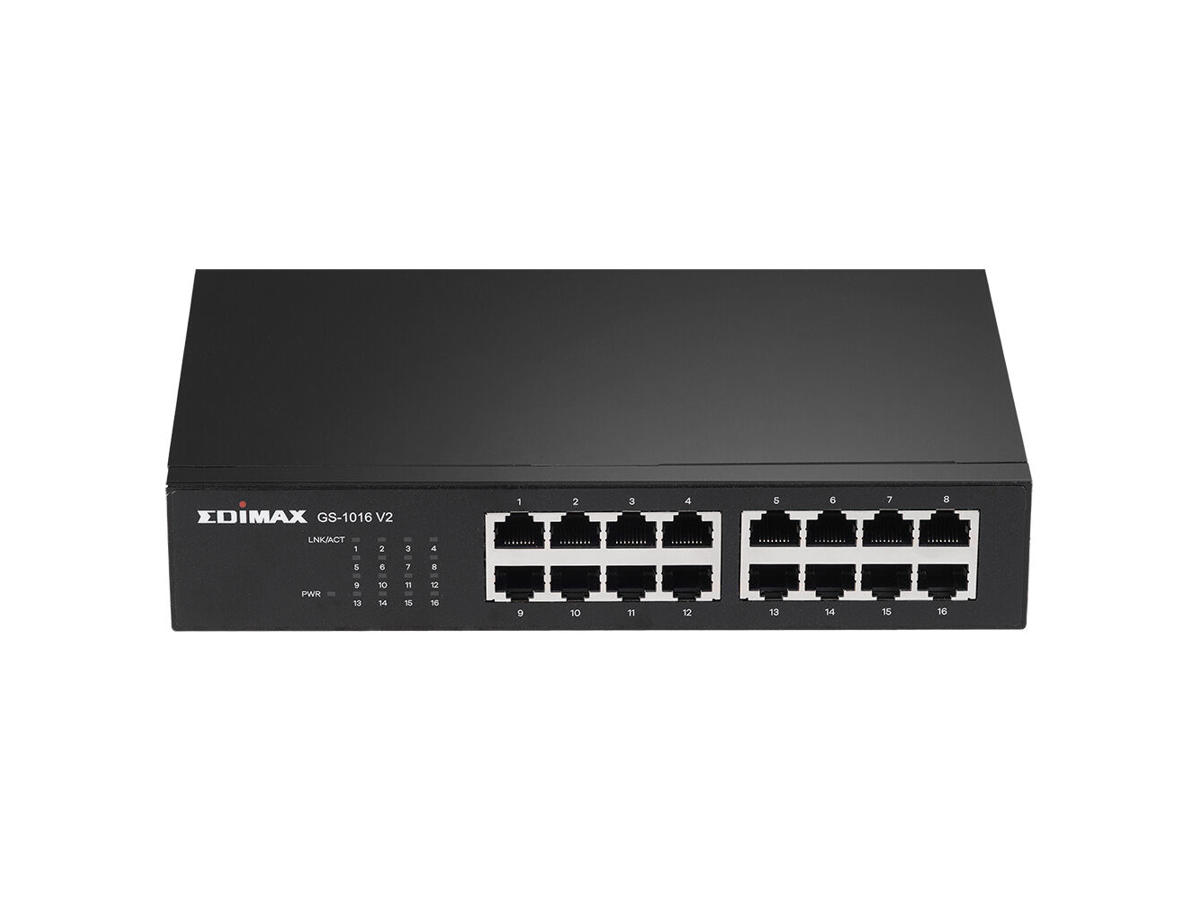

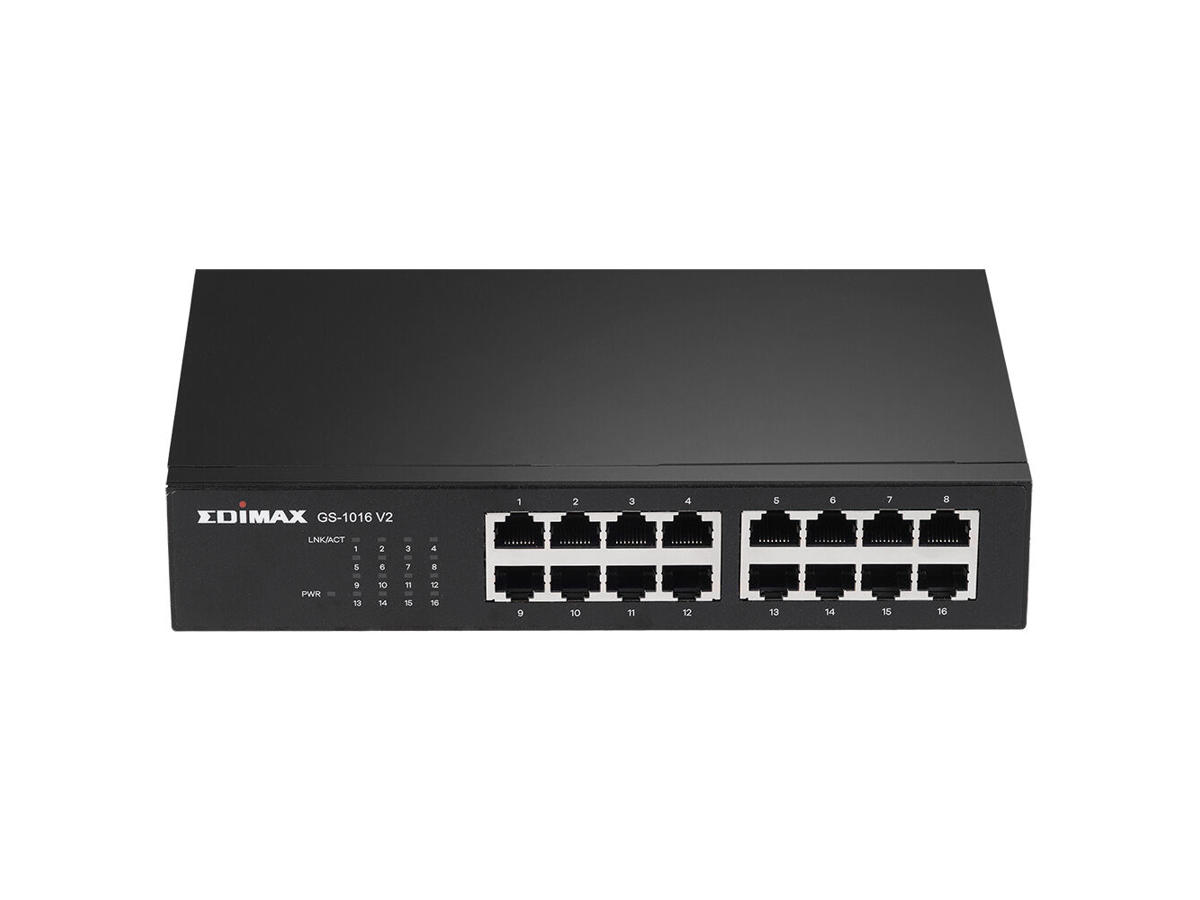

Efficiently Upgrade or Expand Networks with High-Performance Gigabit Speed
For Home, Small Office and Enterprise
Gigabit High-Speed Network
Delivers up to 2000Mbps of throughput per port at full-duplex mode to servers, workstations and other attached devices to save time when transferring large files.
QoS for Improved Traffic
Supports 802.1p QoS for ensuring first priority for voice and video traffic for reduced package loss, lower latency and jitter on the network.
High Performance and Reliable Connection
Featuring IEEE 802.3x Flow Control. Auto-Negotiation, No-Blocking Wire Speed, Auto-MDI/MDI-X, Auto-Correction, Loop Detection, Store-and-Forward Architecture which filters fragment & CRC error packets for maximizing network performance.
Energy Efficient and Power Saving
To comply with the IEEE802.3az Energy Efficient Ethernet standard to reduce energy consumption and save costs.
Plug-and-Play & Flexible Deployment
No software or configuration required, designed for desktop, wall-mount or rack-mount for flexible deployment.
Administrationsfunktioner | |
Switch-type | Administreret |
Servicekvalitet support (QoS) | Ja |
Porte & Grænseflader | |
Basis omskiftning RJ-45 Ethernet porte, antal | 16 |
Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
Netværk | |
Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-T, 1000BASE-T |
Fuld duplex | Ja |
Flowkontrol support | Ja |
Auto MDI/MDI-X | Ja |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Auto-forhandling | Ja |
Dataoverførsel | |
MAC adresselabel | 8000 entries |
Switch kapacitet | 32 Gbit/sek. |
Gennnemløb | 2000 Mpps |
Gennemløb | 1 Gbit/sek. |
Jumbo Frames support | Ja |
Jumbo rammer | 10000 |
Overførselsmetode | Store and forward |
Pakke videresendelsesrate (1 Gbps) | 1488000 pps |
Pakke videresendelsesrate (100 Mbps) | 148800 pps |
Pakke videresendelsesrate (10 Mbps) | 14880 pps |
Pakke bufferlager | 4,1 MB |
Design | |
Stativ-montering | Ja |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Aktivitet, Link, Strøm |
Kan monteres på væggen | Ja |
Præstation | |
Ventilatorfri | Ja |
Strømstyring | |
Strømforsyning inkluderet | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Vekselstrømsindgangsfrekvens | 50 - 60 Hz |
Power over Ethernet (PoE) | |
Strøm over Ethernet (PoE) | Ingen |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Vægt & størrelser | |
Bredde | 215 mm |
Dybde | 133 mm |
Højde | 42 mm |
Vægt | 850 g |
Emballeringsdata | |
Rack monteringskit | Ja |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
