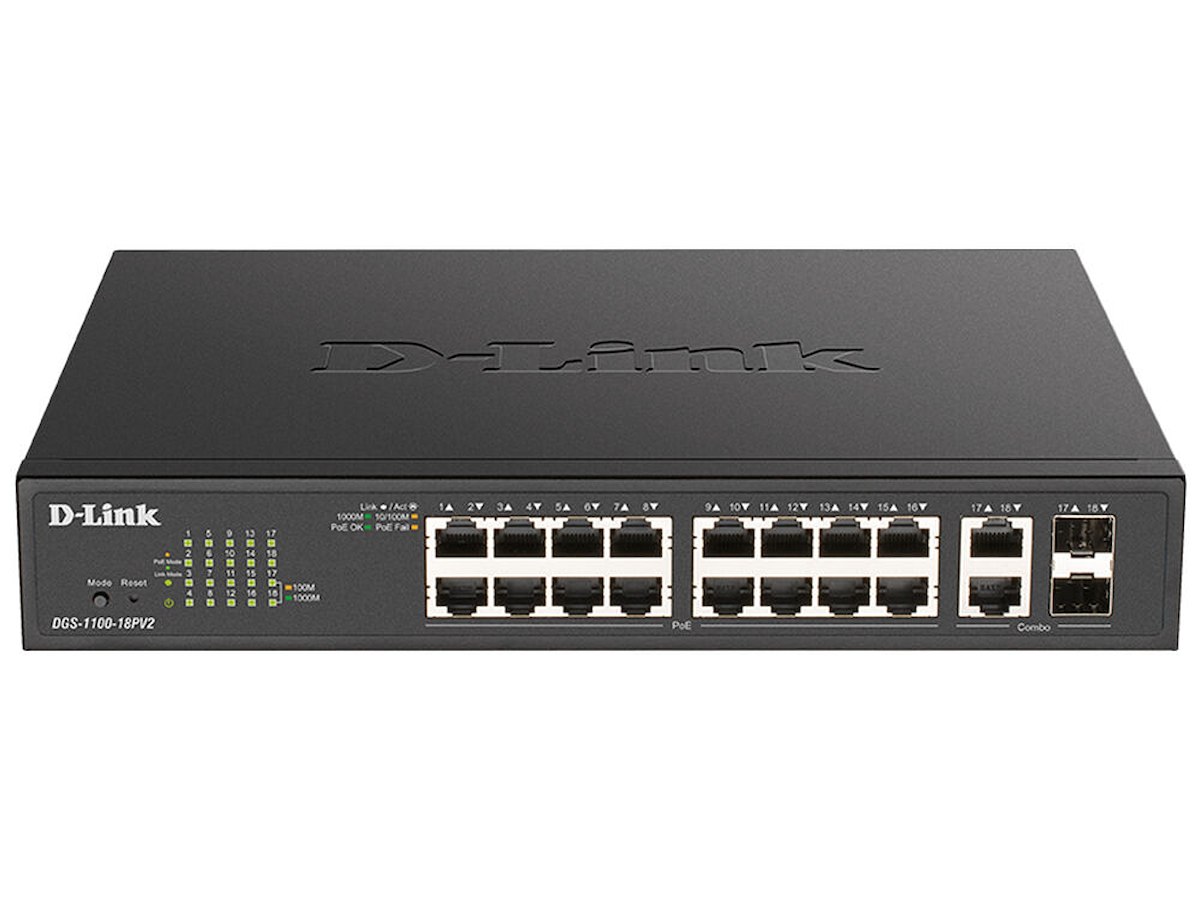

Varenummer: DGS-1100-18PV2
Mere information
-
Powerful Switching for your Business
The DGS-1100 Series is a range of powerful switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Easy to Use & Easy to Install
D-Link Network Assistant Utility (DNA) can quickly discover and do initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, for silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have Cameras attached to your network,
you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the Switch can automatically reset them and get them back online. No need to turn them on and off again in the middle
of the night. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Kombo SFP porte, antal 2 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 1000BASE-T Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Link aggregering Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s Auto-forhandling Ja VLAN understøttelse Ja Antal VLAN'er 4094 Dataoverførsel Switch kapacitet 36 Gbit/sek. Hastighed for videresendelse 26,78 Mpps Jumbo Frames support Ja Jumbo rammer 9216 Sikkerhed IGMP snooping Ja Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Antal blæsere 1 blæser(e) Elektromagnetisk kompatibilitet FCC Class A, CE Class A, VCCI Class A, C-Tick, BSMI Præstation Støjniveau 45,8 dB Gennemsnitstid mellem fejl (MTBF) 343695 t Strømstyring Strømkilde DC/PoE Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 16 Total Power over Ethernet (PoE) 130 W Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 125,2 BUT/t Vægt & størrelser Bredde 280 mm Dybde 230 mm Højde 44 mm Vægt 2,1 kg Godkendelser Compliance-certifikater RoHS Certificering cUL, UL, LVD, CB, BSMI
