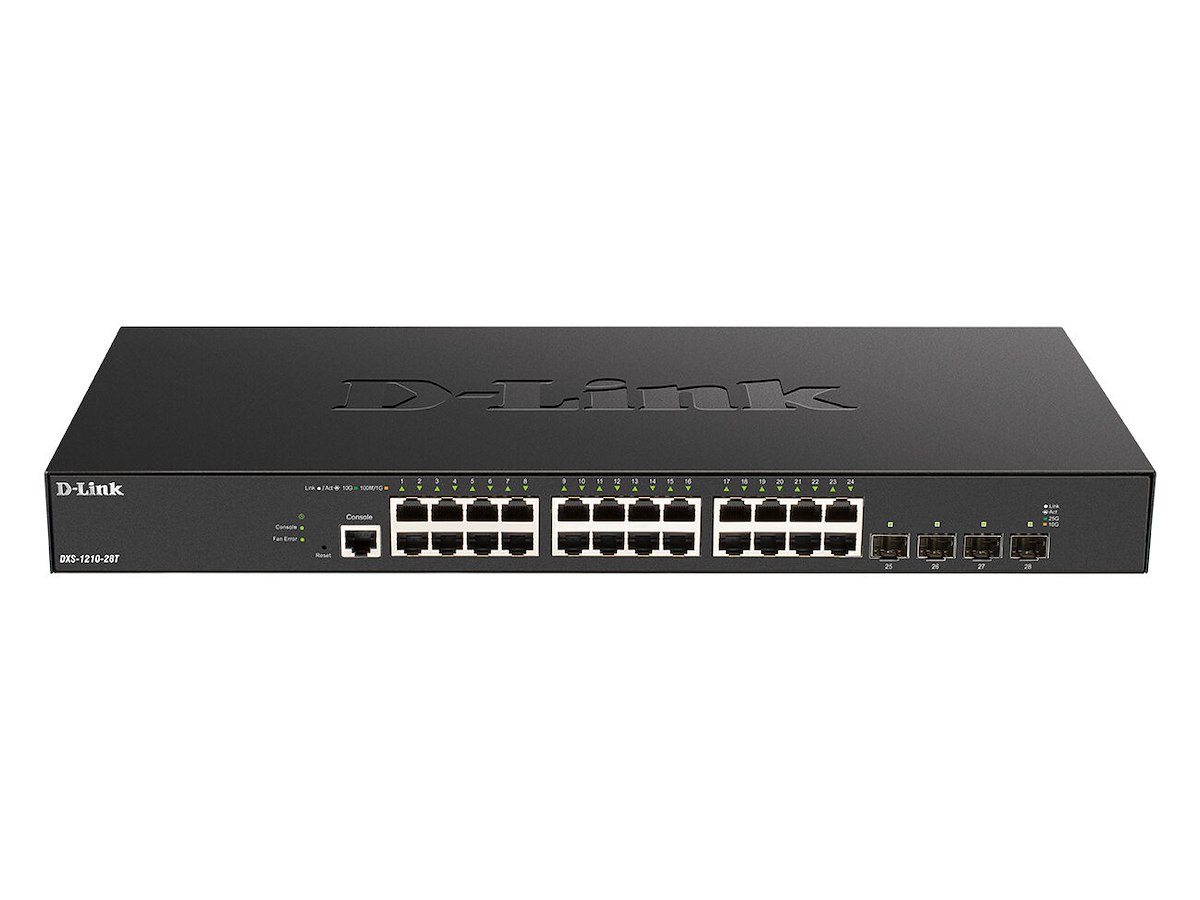

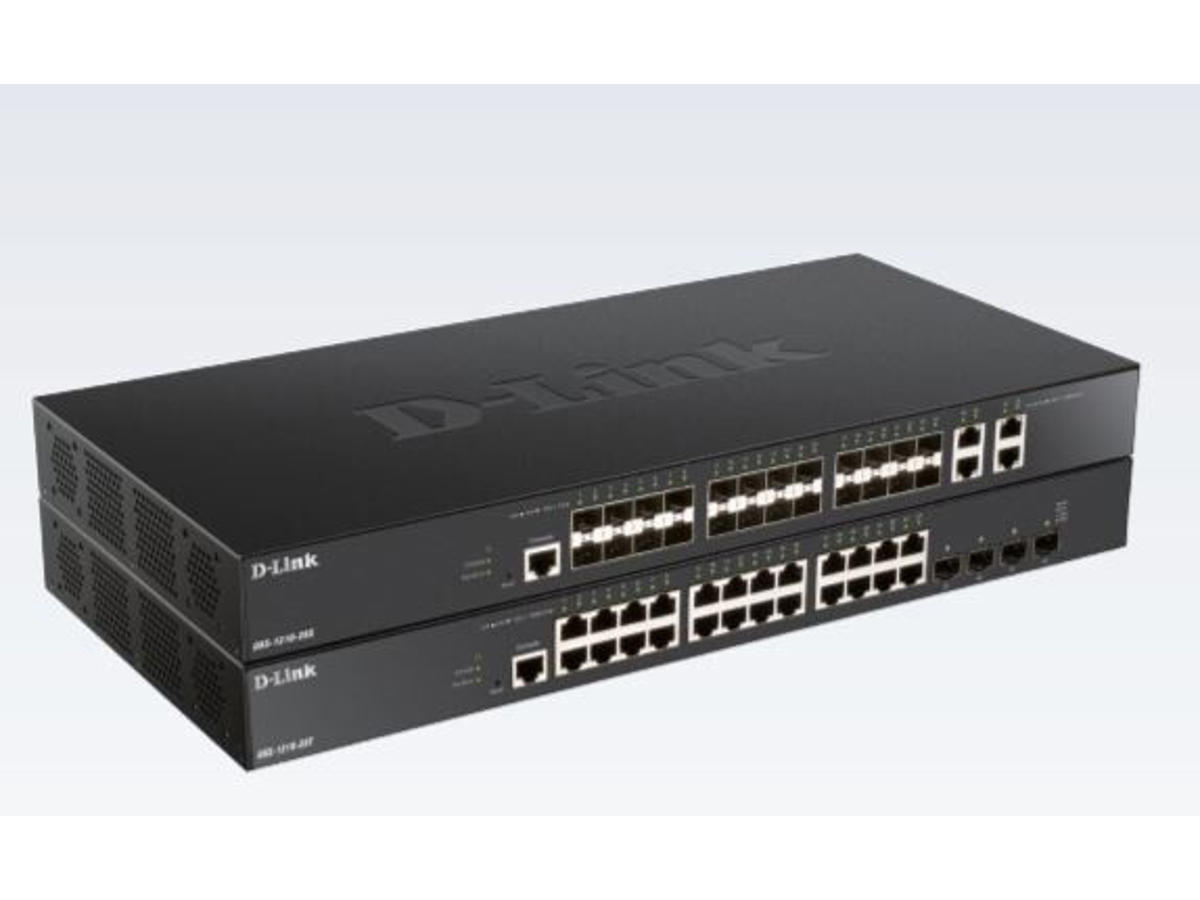

The DXS-1210-28T/28S 10 Gigabit Ethernet Smart Managed Switches are a cost-effective 10
Gigabit switches capable of servicing a range of network needs in any business environment.
The DXS-1210-28T is equipped with 4 x 10/25G SFP28 ports, enabling this series to serve as
either an aggregation/access switch in large enterprise environments or deployed at the
core of an SMB network. With high performance and low latency, these 10G smart-managed
switches fulfil the needs of virtualisation, cloud services, and server-to-server applications.
The DXS-1210-28T/28S comes with a complete line-up of L2 features, including port mirroring,
Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). At the same time,
inter-VLAN static routing helps by reducing the pressure of routers and backbone networks,
improving overall network efficiency. The free D-Link Network Assistant utility allows multiple
D-Link devices within the same L2 network to be discovered and managed. These switches also
provide management through the multi-lingual web UI, a full command-line interface (CLI)
through Telnet, a console port, as well as D-View 7 Network Management System.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L2/L3 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 24 |
| Basis omskiftning RJ-45 Ethernet porttype | 10G Ethernet (100/1000/10000) |
| Antal 10G Ethernet-porte (kobber) | 24 |
| Port til konsol | RJ-45 |
| SSFP28-portmængde | 4 |
| Netværk | |
| Netværksstandarder | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z |
| Understøttede kabeltyper | Cat6, Cat6a, Cat7 |
| Port-spejlning | Ja |
| Flowkontrol support | Ja |
| Link aggregering | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protokol | Ja |
| VLAN understøttelse | Ja |
| Antal VLAN'er | 4094 |
| Dataoverførsel | |
| MAC adresselabel | 32000 entries |
| Switch kapacitet | 680 Gbit/sek. |
| Hastighed for videresendelse | 505,92 Mpps |
| Opbevar-og-frem | Ja |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| Sikkerhed | |
| Adgangskontrolliste (ACL) | Ja |
| Adgangskontrolliste (ACL) regler | 256 |
| IGMP snooping | Ja |
| Protokoller | |
| Administrationsprotokoller | SNMP v1/v2c/v3 |
| GARP VLAN registreringsprotokol (GVRP) | Ja |
| Design | |
| Stativ-montering | Ja |
| Formfaktor | 1U |
| Produktfarve | Sort |
| LED-indikatorer | Aktivitet, Link, Hastighed |
| Antal blæsere | 2 blæser(e) |
| Præstation | |
| Støjniveau | 51,9 dB |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Strømforbrug (maks.) | 87,3 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Vægt & størrelser | |
| Bredde | 441 mm |
| Dybde | 209,5 mm |
| Højde | 44 mm |
| Vægt | 3,07 kg |
| Godkendelser | |
| Certificering | CE Class A FCC Class A VCCI Class A IC BSMI |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
