Varenummer: DBS-2000-52
Mere information
-
Cloud Networking, Refreshed

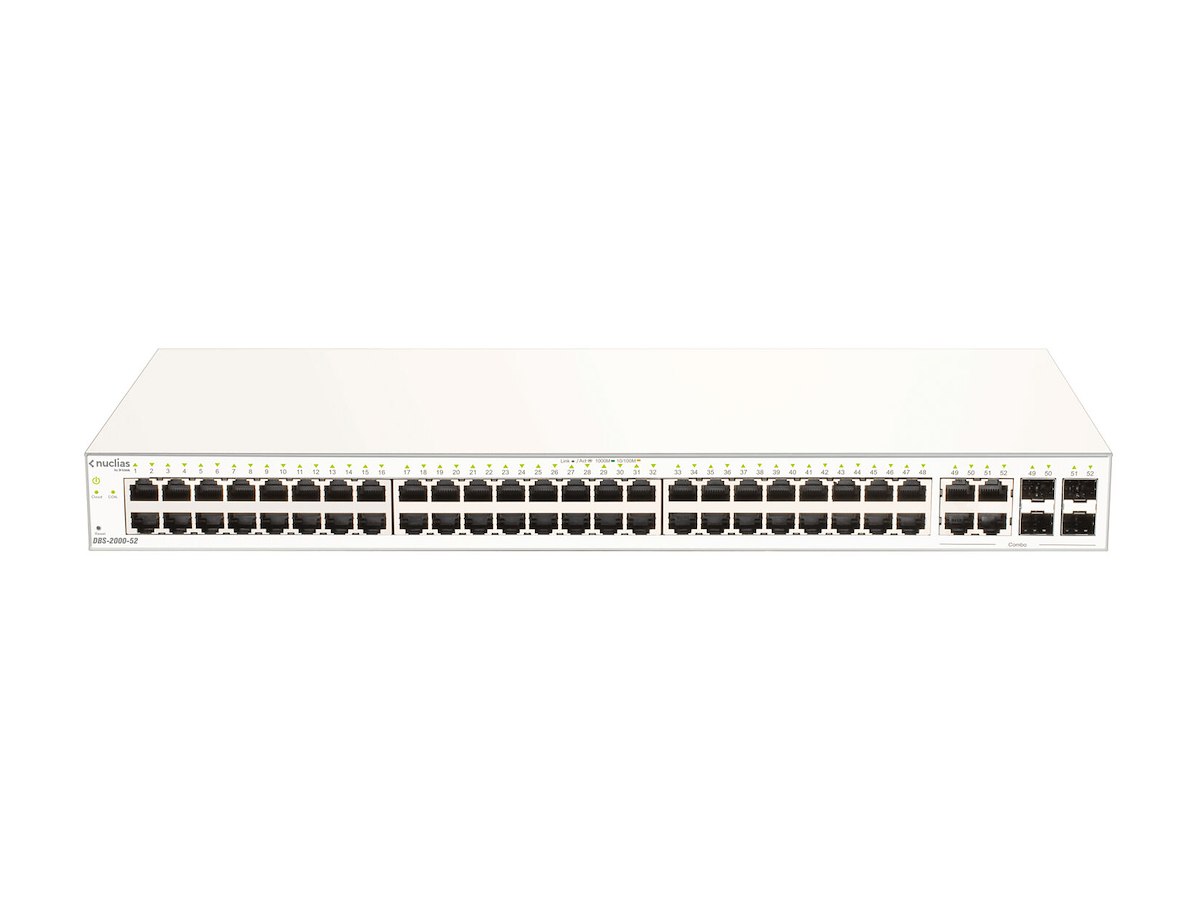

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Kombo SFP porte, antal 4 Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.3ad 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Link aggregering Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja Dataoverførsel Switch kapacitet 104 Gbit/sek. Hastighed for videresendelse 77,4 Mpps Pakke bufferlager 12 MB Sikkerhed IGMP snooping Ja Sikkerhedsalgoritmer WPA, WPA2 Design Stativ-montering Ja Produktfarve Grå LED-indikatorer Ja Antal blæsere 0 blæser(e) Præstation Indbygget processer Ja Processorfrekvens 700 MHz Hukommelsestype DDR3-SDRAM Intern hukommelse 256 MB Flashhukommelse 32 MB Gennemsnitstid mellem fejl (MTBF) 400667 t Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 34,85 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 118,92 BUT/t Vægt & størrelser Bredde 440 mm Dybde 210 mm Højde 44,5 mm Vægt 3,46 kg Emballeringsdata Pakkebredde 354 mm Pakkedybde 552 mm Pakkehøjde 98 mm Pakkevægt 4,6 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 38,3 cm Forsendelseskasses kassens bredde (indvendig) 31,4 cm Forsendelseskassens længde (indvendig) 56,2 cm Forsendelsesemballage nettovægt 13,8 kg Produkter pr. forsendelseskasse (indvendig) 3 stk Palle bruttovægt (luft) 284,8 kg Antal papkasser pr. palle (luft) 18 stk Antal pr. palle (luft) 54 stk Pallens bruttolængde 110 cm Pallens bruttobredde 120 cm Pallehøjde (luft) 128,4 cm Palle bruttovægt (hav) 462,2 kg Antal papkasser pr. palle (hav) 30 stk Antal pr. palle (hav) 90 stk Pallehøjde (hav) 2,05 m Forsendelseskassens bruttovægt (indvendig) 14,7 kg Logistik data Harmoniseret systemkode (HS) 85176990
