Cloud Networking, Refreshed

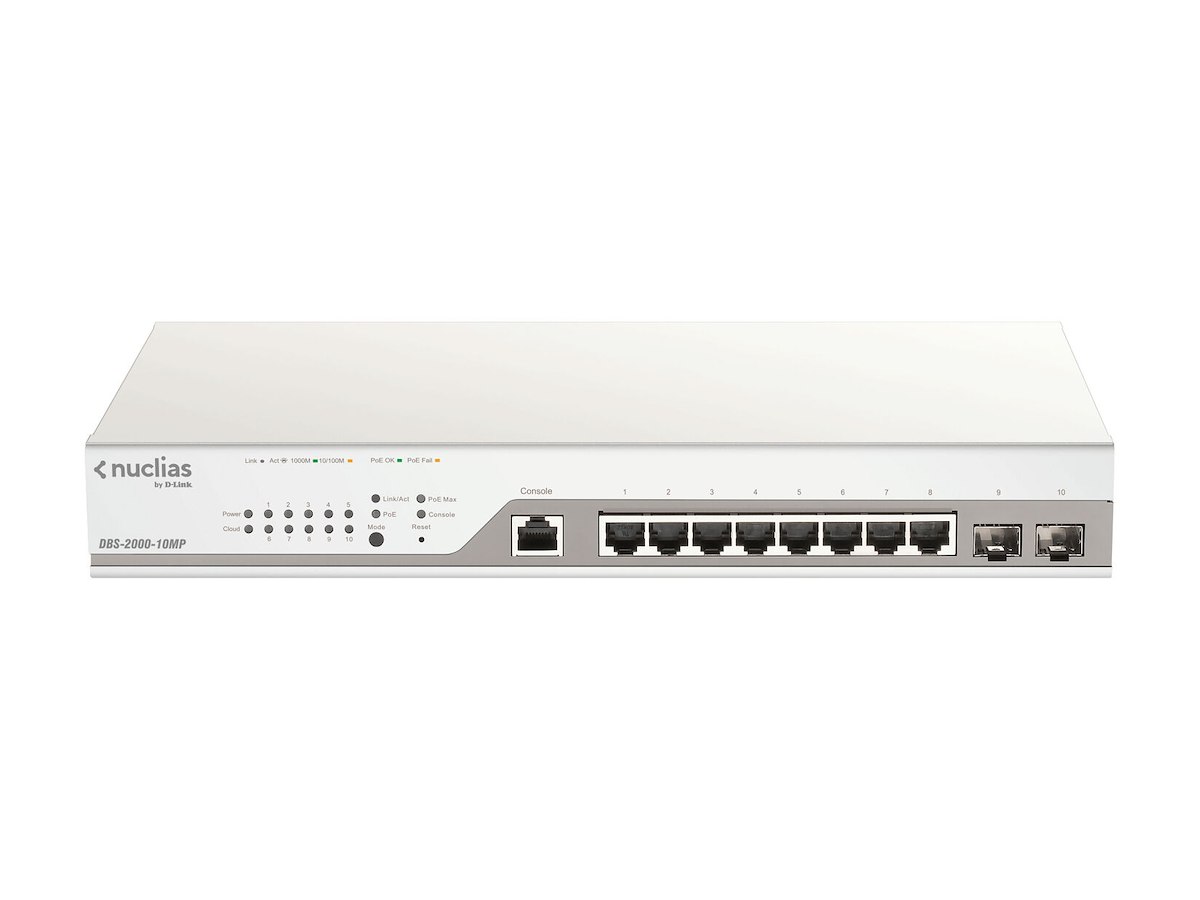

The DBS-2000 series of switches is part of the Nuclias Cloud solution – D-Link’s complete Cloud-Managed Networking solution for Small-to-Medium Businesses (SMBs), designed to make the ownership and administration of your IT infrastructure as simple and hassle-free as possible.
Management Over the Cloud
DBS-2000 is a series of Smart Managed Switches, manageable via the Nuclias Cloud Web Portal through any compatible online PC or Tablet. Connectivity with the Nuclias Cloud platform is guaranteed, with a 99.9% Service-Level-Agreement (SLA), and operation will continue even if the Cloud connection fails.
Easy Troubleshooting
The DBS-2000 Series features Cable Diagnostics and Per Port Traffic Packet Counters to help network admins find & solve network problems. Cable Diagnostics enables quick examination of cable quality, recognition of cable type, and detection of cable errors, with the Per-Port Traffic Packet Counter helping to further isolate problems.
Advanced Security Features
The DBS-2000 series utilizes the Nuclias Cloud Web Portal interface, giving administrators an easy way to manage Layer-2 features, such as VLANs, Spanning Tree Protocol (STP), and 802.3ad Link Aggregation (static). With powerful security features, including IGMP snooping, Static MAC, and end-to-end encryption (WPA/WPA2/WPA3), these Cloud switches are a versatile solution for deployments that require easy configuration, without added complexities.
Full PoE Support
Select models in the DBS-2000 Series support Power over Ethernet (PoE) for copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L2 |
| Webbaseret administration | Ja |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 8 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Kombo SFP porte, antal | 2 |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.3ad, IEEE 802.3at |
| 10G understøttelse | Ingen |
| Kobber ethernet kabelteknologi | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Link aggregering | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protokol | Ja |
| Dataoverførsel | |
| Switch kapacitet | 20 Gbit/sek. |
| Hastighed for videresendelse | 14,88 Mpps |
| Pakke bufferlager | 4,1 MB |
| Sikkerhed | |
| IGMP snooping | Ja |
| Sikkerhedsalgoritmer | WPA3, WPA, WPA2 |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Grå |
| LED-indikatorer | Ja |
| Antal blæsere | 0 blæser(e) |
| Præstation | |
| Indbygget processer | Ja |
| Processorfrekvens | 500 MHz |
| Hukommelsestype | DDR3-SDRAM |
| Intern hukommelse | 256 MB |
| Flashhukommelse | 32 MB |
| Gennemsnitstid mellem fejl (MTBF) | 1274005 t |
| Strømstyring | |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Strømforbrug (maks.) | 152,3 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Power over Ethernet (PoE) effekt pr. port | 30 W |
| Total Power over Ethernet (PoE) | 130 W |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Driftshøjde | 0 - 1500 m |
| Varmeafgivelse | 519,51 BUT/t |
| Vægt & størrelser | |
| Bredde | 330 mm |
| Dybde | 180 mm |
| Højde | 44 mm |
| Vægt | 1,77 kg |
| Emballeringsdata | |
| Pakkebredde | 319 mm |
| Pakkedybde | 400 mm |
| Pakkehøjde | 91 mm |
| Pakkevægt | 3,39 kg |
| Tekniske detaljer | |
| Forsendelseskassens højde (indvendig) | 34,9 cm |
| Forsendelseskasses kassens bredde (indvendig) | 29,4 cm |
| Forsendelseskassens længde (indvendig) | 41,6 cm |
| Forsendelsesemballage nettovægt | 10,2 kg |
| Produkter pr. forsendelseskasse (indvendig) | 3 stk |
| Palle bruttovægt (luft) | 282,5 kg |
| Antal papkasser pr. palle (luft) | 24 stk |
| Antal pr. palle (luft) | 72 stk |
| Pallens bruttolængde | 110 cm |
| Pallens bruttobredde | 120 cm |
| Pallehøjde (luft) | 118,2 cm |
| Palle bruttovægt (hav) | 458,4 kg |
| Antal papkasser pr. palle (hav) | 40 stk |
| Antal pr. palle (hav) | 120 stk |
| Pallehøjde (hav) | 188 cm |
| Forsendelseskassens bruttovægt (indvendig) | 11 kg |
| Logistik data | |
| Harmoniseret systemkode (HS) | 85176990 |
