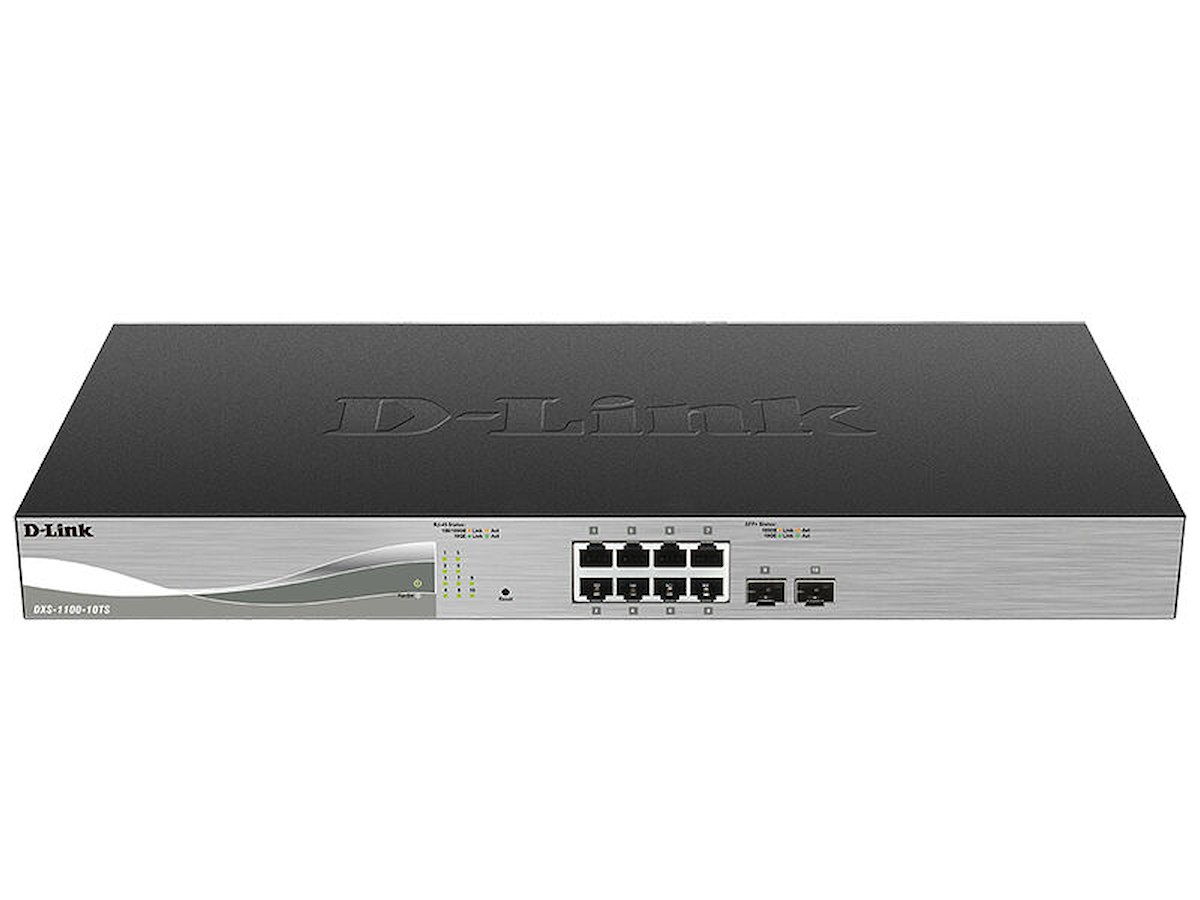

Varenummer: DXS-1100-10TS
Mere information
-
Energy Saving
The DXS-1100-10TS incorporates D-Link Green technology for increased energy efficiency. Smart fans and temperature sensors ensure that the fans are running at the optimum speed to cool the system. If the environment temperature is suitable and the switch is at low utilization, the smart fans can reduce their speed, resulting in lower power consumption and noise output. The Link Status feature can reduce power utilization by powering-down inactive ports and putting them into sleep mode.
Easy to Deploy
The DXS-1100-10TS supports an intuitive client-based utility (SmartConsole Utility or D-Link Network Assistant Utility) and a web-based management interface. The client-based utility allows customers to discover all switches in the D-Link Smart Switch family within the same L2 network segment. With this utility, users do not need to change the IP address of their PC, and this also makes initial setup of the Smart Switches quick and easy. Switches within the same L2 network segment that are connected to the user’s PC are displayed on-screen for instant access.
Auto Surveillance VLAN and Bandwidth Control
The DXS-1100-10TS supports Auto Surveillance VLAN (ASV), and Auto Voice VLAN, which are best suited for Voice over IP (VoIP) and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology that the DXS-1100-10TS Gigabit Ethernet Smart Switch provides. This technology consolidates data and surveillance video transmission through a single unit, thus sparing businesses the expense of dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data.
Advanced Features
The DXS-1100-10TS is equipped with advanced security features such as Static MAC, Storm Control, and IGMP Snooping. Static MAC allows users to create a MAC whitelist for specific ports, helping administrators limit network access to authorized devices only. Storm Control monitors broadcast, multicast, or unknown unicast traffic and will start blocking or discarding packets which could flood the network when the defined threshold is exceeded. IGMP Snooping is able to reduce the loading of L3 multicast routers and save bandwidth in network throughput.
Easy Troubleshooting
The DXS-1100-10TS features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily. Loopback Detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable Diagnostics help network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja ARP inspektion Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype 10G Ethernet (100/1000/10000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP + modulslots 2 Fiber optisk strømstik SFP+ Antal USB 2.0-porte 0 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3z 10G understøttelse Ja Kobber ethernet kabelteknologi 10GBASE-T Port-spejlning Ja Fuld duplex Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN Antal VLAN'er 128 Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 200 Gbit/sek. Gennnemløb 148,81 Mpps Opbevar-og-frem Ja Antal køer 8 Jumbo Frames support Ja Jumbo rammer 9216 Sikkerhed IGMP snooping Ja Sikkerhedsalgoritmer SNMP Statisk port, sikkerhed Ja SSH/SSL support Ja Algoritmer for køplanlægning SPQ, Weighted Round Robin (WRR) Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Antal blæsere 2 blæser(e) Præstation Flashhukommelse 128 MB Støjniveau 46,4 dB Gennemsnitstid mellem fejl (MTBF) 585,959 t Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 50,9 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 173,57 BUT/t Vægt & størrelser Bredde 441 mm Dybde 210 mm Højde 44 mm Vægt 2,69 kg Emballeringsdata Pakkebredde 348 mm Pakkedybde 511 mm Pakkehøjde 91 mm Pakkevægt 4,14 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 38,3 cm Forsendelseskasses kassens bredde (indvendig) 29,6 cm Forsendelseskassens længde (indvendig) 52,9 cm Forsendelsesemballage nettovægt 9,67 kg Produkter pr. forsendelseskasse (indvendig) 3 stk Palle bruttovægt (luft) 552,4 kg Antal papkasser pr. palle (luft) 40 stk Antal pr. palle (luft) 120 stk Pallens bruttolængde 110 cm Pallens bruttobredde 120 cm Pallehøjde (luft) 2,05 m Palle bruttovægt (hav) 552,4 kg Antal papkasser pr. palle (hav) 40 stk Antal pr. palle (hav) 120 stk Pallehøjde (hav) 2,05 m Forsendelseskassens bruttovægt (indvendig) 13,3 kg Logistik data Harmoniseret systemkode (HS) 85176990
