Varenummer: DMS-108/E
Mere information
-

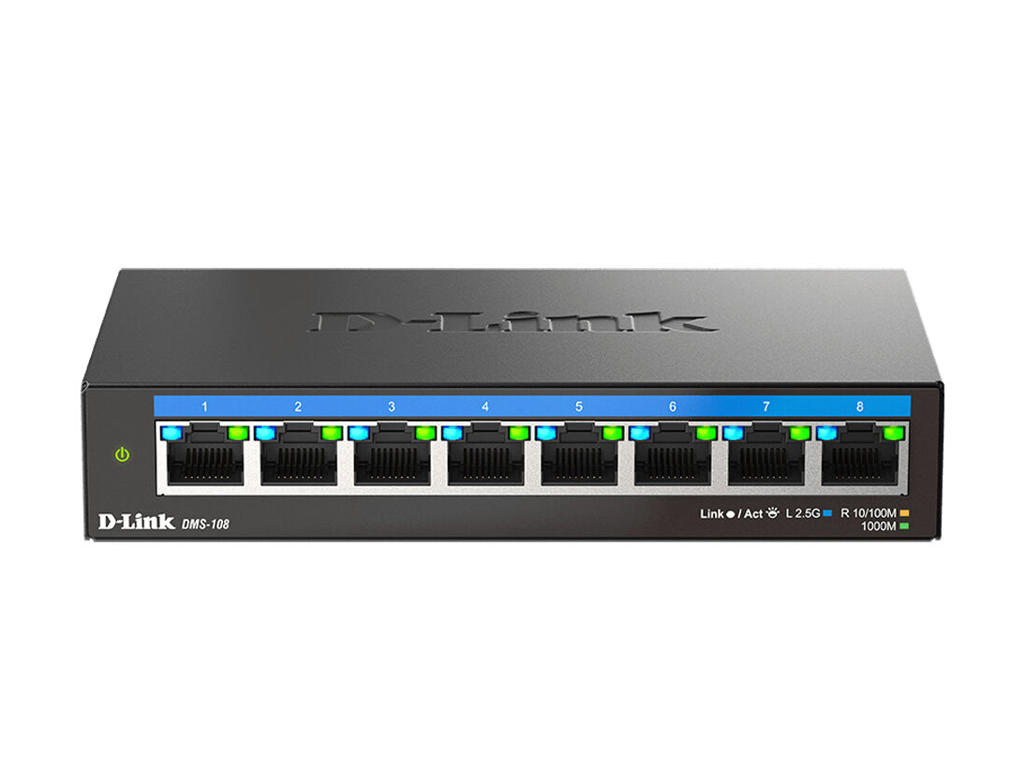

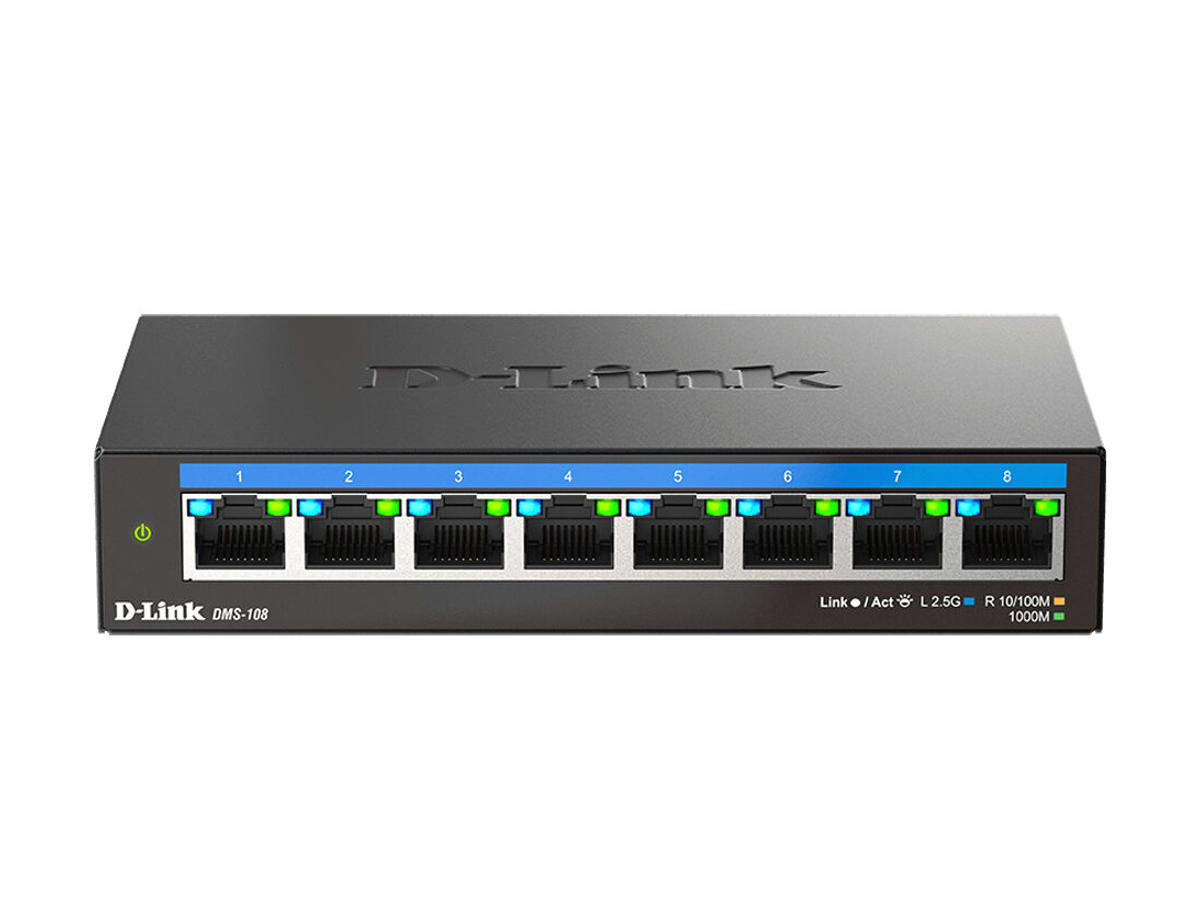

More ports. Multi-Gigabit Ethernet.
Maximise network throughput with 2.5Gbps Multi-Gigabit Ethernet on each port of this compact 8-port switch. Whether it’s to connect to your core or create a network between devices, now you can easily start sharing an internet connection, files, music, and video, or for gaming without bottlenecks.
2.5 Gigabit Ethernet
Save time transferring large files and improve sharing and productivity
Effortless multi-Gigabit networking
Easily upgrade or extend your home or small business network
Compact Metal Housing
Sturdy, compact metal housing with fanless design for silent operation
Energy Efficient Design
Automatic power saving features to reduce power usage
Plug-and-pay convenience.
The DMS-108 is a plug-and-play device that requires no configuration to get started. Plug-and-play makes it easy to instantly create a network without any technical knowledge.
Effortless traffic optimisation.
With 2.5 Gigabit transfer speeds from every port, you can rapidly transfer files between connected servers and network attached storage (NAS) to computers. The Quality of Service (QoS), and Flow Control features automatically prioritises important data for efficient delivery. And the IGMP Snooping function reduces unwanted multicast traffic so you can enjoy seamless video streaming and IPTV viewing experiences.
Designed for life, built to last.
The DMS-108 has a sturdy and compact metal housing to ensure the product can withstand wider operating temperatures by helping to dissipate heat and reduce stress on internal components.
Energy Saving.
The DMS-108 is designed with energy efficiency in mind. The fanless design eliminates a common point of failure and means the switch can be placed virtually anywhere and operate silently. The Link Status detection feature of the switch saves power by automatically powering down ports that are inactive or not connected, and it supports the IEEE 802.3az Energy-Efficient Ethernet standard.
Ready for Wi-Fi 6.
You can add a Wi-Fi 6 Access Point to your network to any of the 2.5 Gbps ports to maximise throughput and speed. Multi-Gigabit Ethernet eliminates potential bottlenecks with Wi-Fi 6 Access Points, allowing your network to take full advantage of the efficiency and speeds provided by Wi-Fi 6. -
Administrationsfunktioner Switch-type Ikke administreret Switch lag L2 Servicekvalitet support (QoS) Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal 2,5G Ethernet-porte (kobber) 8 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Flowkontrol support Ja Auto MDI/MDI-X Ja MAC-adresse auto-indlæring understøttet Ja Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 40 Gbit/sek. Hastighed for videresendelse 29,76 Mpps Opbevar-og-frem Ja Antal køer 8 Pakke bufferlager 8,1 MB Sikkerhed IGMP snooping Ja Multicast funktioner Multicast-understøttelse Ja Design Stabelbar Ja Produktfarve Sort LED-indikatorer Aktivitet, Link, Strøm Præstation Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 724033,96 t Strømstyring Strømkilde DC Strømforsyning inkluderet Ja DC indgangsspænding 12 V Indgangsstrøm 1 A Strømforbrug (typisk) 8,586 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 29,3 BUT/t Vægt & størrelser Bredde 145 mm Dybde 82 mm Højde 28 mm Vægt 343 g Godkendelser Compliance-certifikater BSMI, CE, Lavspændingsdirektivet (LVD), RoHS Bæredygtighed Overholdelse af bæredygtighed Ja
