Varenummer: DGS-1100-10MPV2/E
Mere information
-

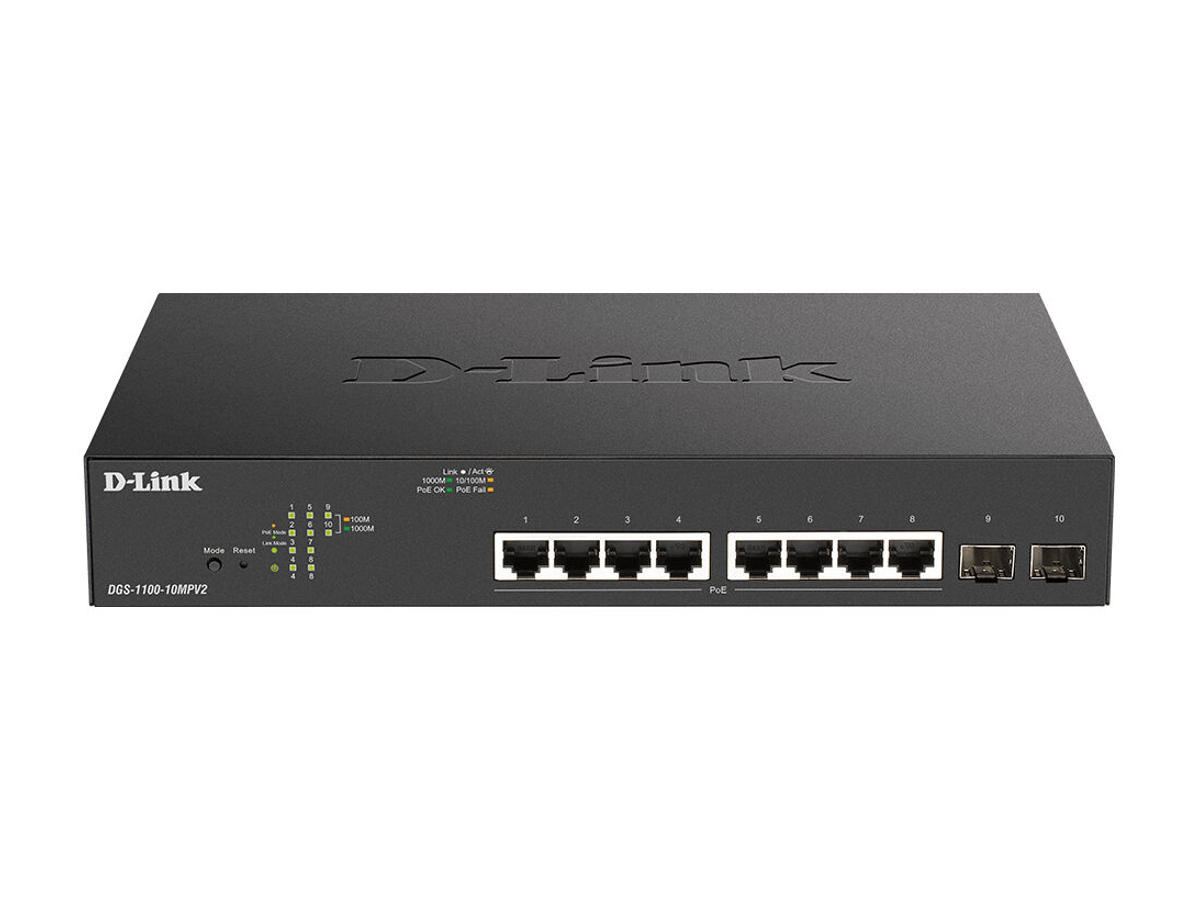

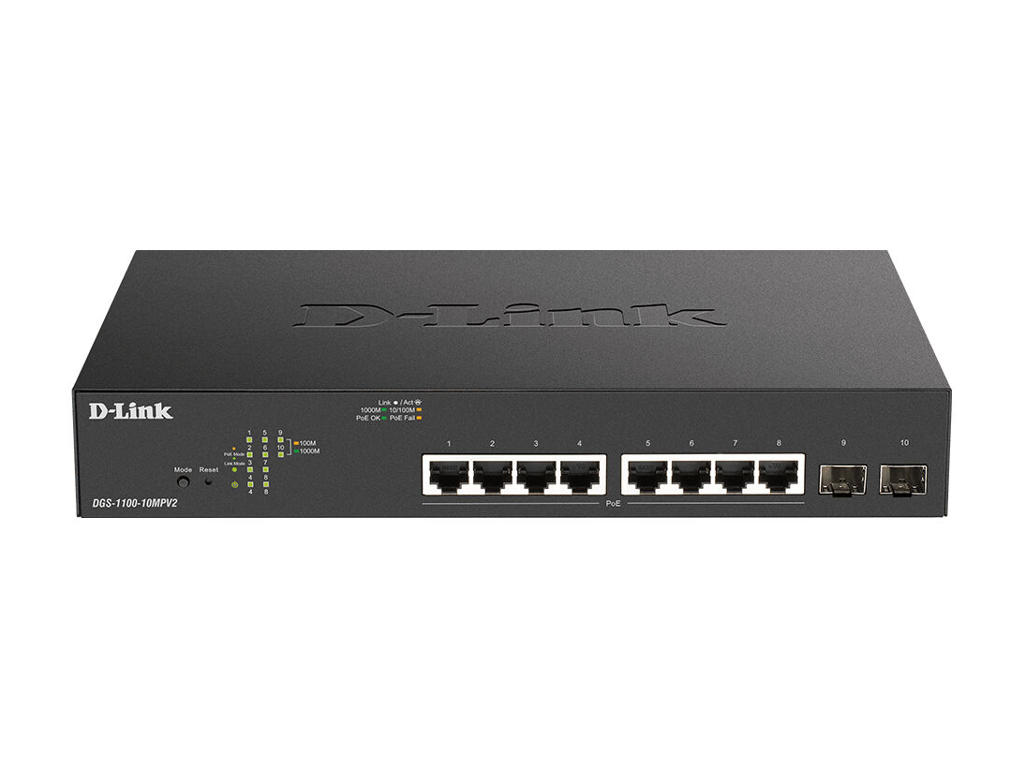

The DGS-1100 Series is built for the needs of a diverse range of businesses. Support for PoE, advanced management & troubleshooting tools, and energy efficient technology offer a highly flexible solution.
Smart Switching for your Business
The DGS-1100 Series is a range of smart managed switches that offer a lot of bang for your buck. They are great for busy SMBs who expect a lot of their network, including support for surveillance and VoIP. They are packed with traffic management & optimization features that keep your network congestion free. Meanwhile, management tools are flexible and intuitive, making your life easier.
Expedited Deployment and Effortless Ongoing Management
The D-Link Network Assistant (DNA) can quickly discover and execute initial setup for D-Link Networking devices such as the DGS-1100 Series, which greatly improves efficiency for solution deployment.
VLANs: Stronger Security & Better Traffic Management
Relatively easy to set up, VLANs can be a big boon for your network. They can isolate sensitive areas of your network, keeping them safe from those with malicious intent, or keeping bandwidth open for latency-sensitive traffic such as VoIP.
For Voice
If VoIP calls make up a large slice of your network usage, separating them onto their own VLAN can ensure they get the bandwidth they need for smooth conversations without lag or jitters.
For Surveillance
If you have surveillance cameras and devices attached to your network, putting them onto their own VLAN keeps surveillance footage running seamlessly. At the same time, it can help prevent a variety of malicious attacks by restricting access to different network areas.
Green Features That Help the Environment and Your Budget
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. Most of the models in the series utilize a fanless design, ensuring a longer product life, as well offering silent and energy-efficient operation. All are IEEE 802.3az-compliant and feature Link Status detection and Time-Based PoE.
PD Alive Actively Mitigates Downtime
Round-the-clock surveillance footage is vital. If you have cameras attached to your network, you may have thought technical difficulties were a given. However, the PD-Alive feature actively mitigates device downtime. If a device is not working as expected, the switch can automatically reset them and get them back online. No need to turn them on and off again in the middle of the night. -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 2 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Link aggregering Ja Begrænsning af hastighed Ja Auto MDI/MDI-X Ja Head-of-line (HOL) blokering Ja Auto-forhandling Ja VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 20 Gbit/sek. Hastighed for videresendelse 14,88 Mpps Antal køer 4 Jumbo Frames support Ja Jumbo rammer 9216 Pakke bufferlager 4,1 MB Sikkerhed IGMP snooping Ja Sikkerhedsalgoritmer SSL/TLS Algoritmer for køplanlægning Weighted Round Robin (WRR) Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort Præstation Flashhukommelse 16 MB Støjniveau 37 dB Gennemsnitstid mellem fejl (MTBF) 406887 t Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 164,6 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 130 W Driftsbetingelser Driftstemperatur (T-T) -10 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 118,1 BUT/t Vægt & størrelser Bredde 280 mm Dybde 180 mm Højde 44 mm Vægt 1,5 kg Godkendelser Certificering FCC A, CE A, VCCI A, C-Tick, BSMI cUL, UL, LVD, CB, BSMI
