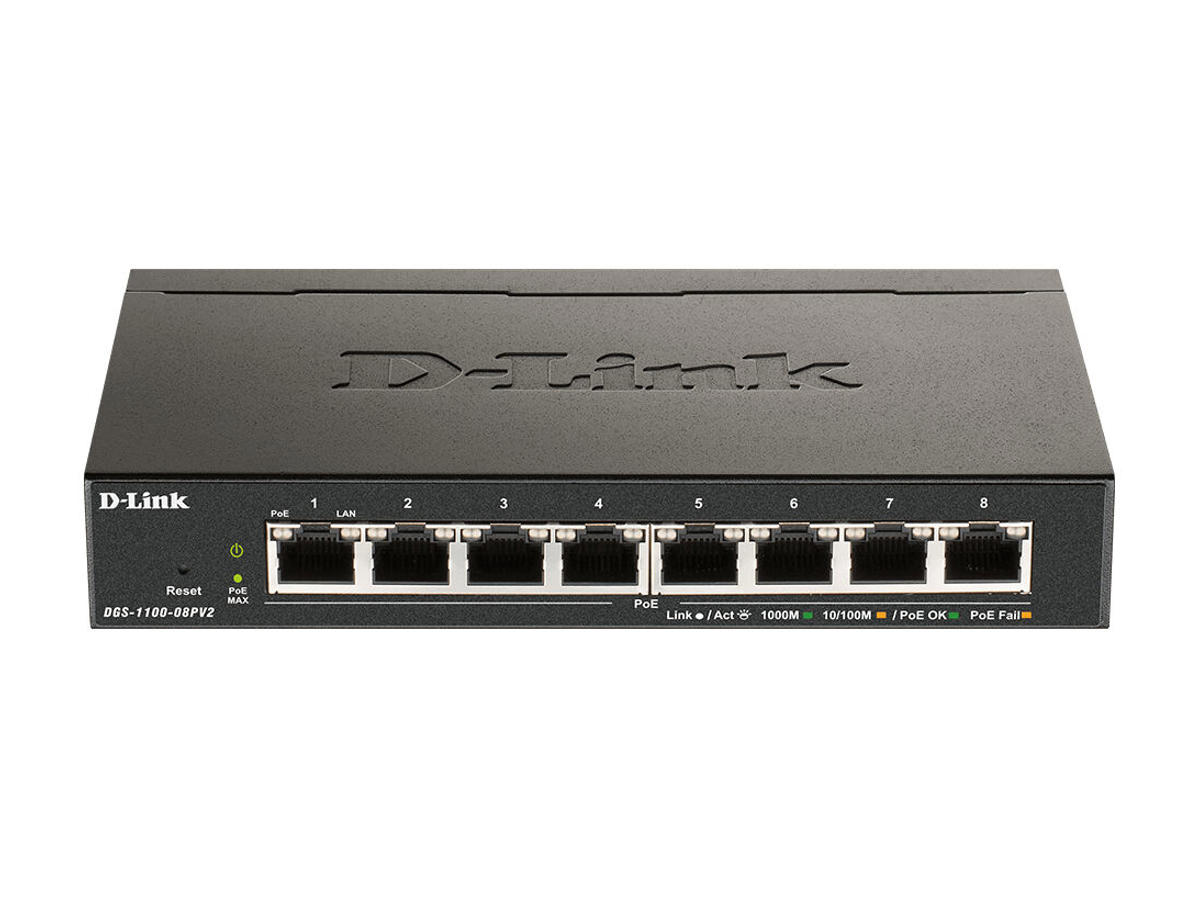

Varenummer: DGS-1100-08PV2/E
Mere information
-
Powerful and flexible networking solution for small, medium, and enterprise businesses.
Simple. Easy. Smart
WebUI Web UI
Easy to use web interface to access management features.
Static Routing VLANs
Segment your network into VLANs.
Surveillance mode Surveillance Mode Interface
Get a snapshot of your security topology in an instant.
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities.
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Full PoE Support
The DGS-1100-08PV2 supports IEEE 802.3af/at Power over Ethernet on all eight copper access ports. Power over Ethernet greatly simplifies the installation of PoE-enabled devices such as VoIP phones and IP cameras in remote locations with no immediate access to a power outlet. Each individual port has capacity to support up to 30W of PoE power, while the switch has an overall budget of 64W.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection. -
Administrationsfunktioner Switch-type Administreret Switch lag L2/L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 8 Netværk Netværksstandarder IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Port-spejlning Ja Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100,1000 Mbit/s VLAN understøttelse Ja Vituelle LAN funktioner Port-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Dataoverførsel MAC adresselabel 4096 entries Switch kapacitet 16 Gbit/sek. Hastighed for videresendelse 11,9 Mpps Antal køer 4 Jumbo Frames support Ja Jumbo rammer 9216 Sikkerhed IGMP snooping Ja Loop beskyttelse Ja Algoritmer for køplanlægning SP, Weighted Round Robin (WRR) Multicast funktioner Multicast-understøttelse Ja Design Stativ-montering Ingen Produktfarve Sort LED-indikatorer Ja Præstation Flashhukommelse 2 MB Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 786841 t Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 77,9 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Power over Ethernet (PoE) effekt pr. port 30 W Total Power over Ethernet (PoE) 64 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 265,85 BUT/t Vægt & størrelser Bredde 171 mm Dybde 97,8 mm Højde 28,6 mm Vægt 430 g Godkendelser Compliance-certifikater CE, RoHS Certificering FCC Class B, CE Class B, VCCI Class B, BSMI cUL, CE LVD, CB, BSMI Bæredygtighed Overholdelse af bæredygtighed Ja
