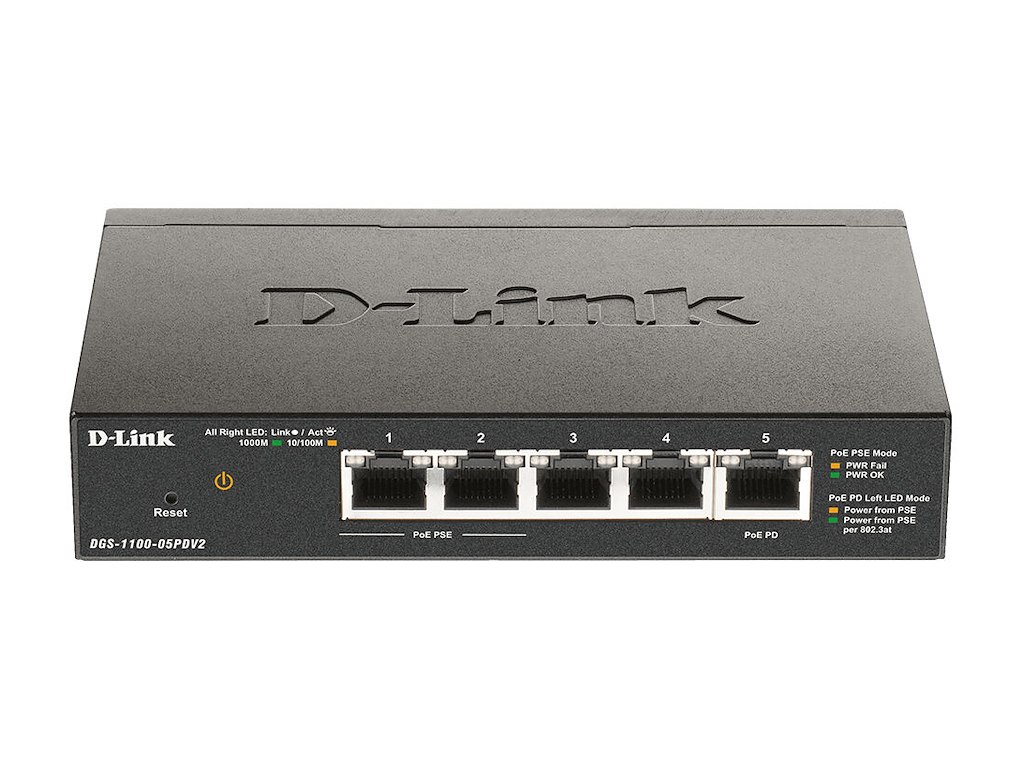

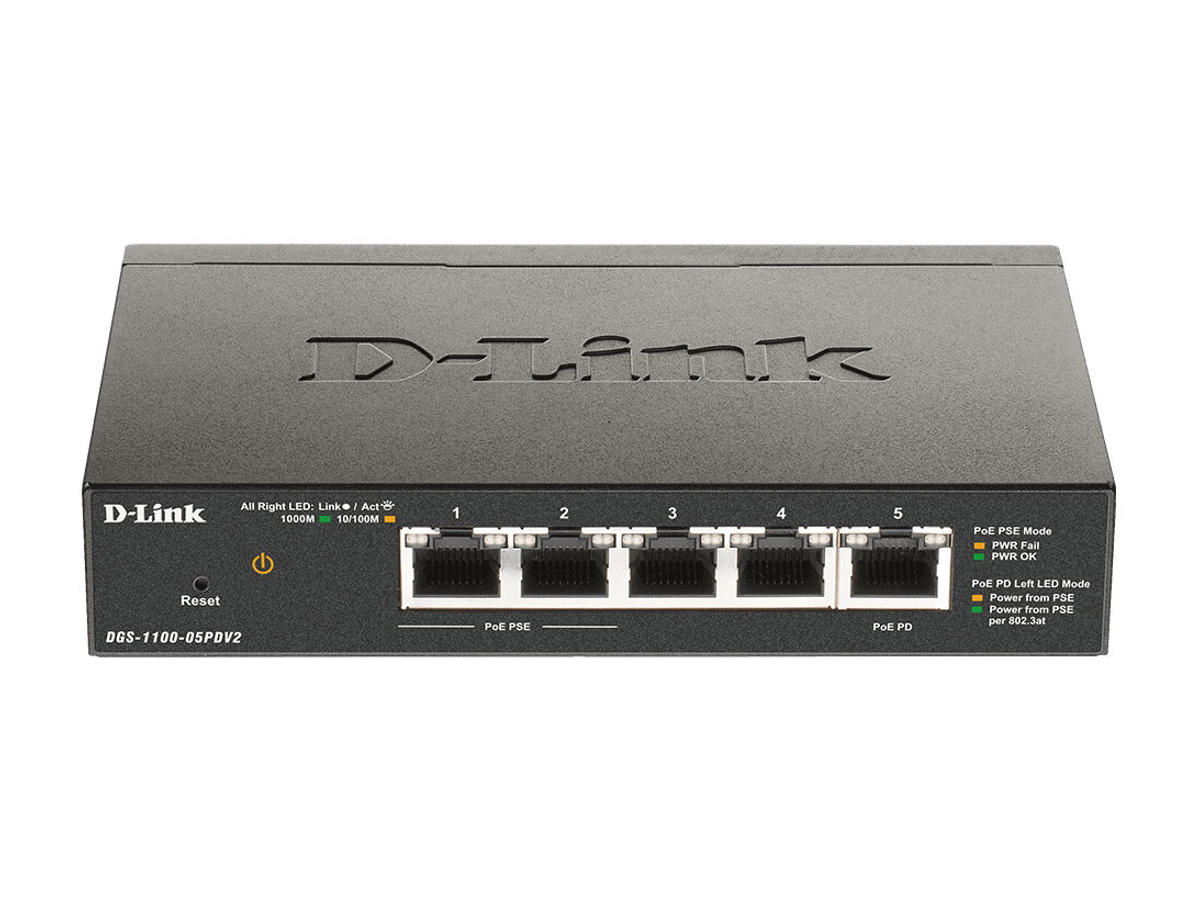

Varenummer: DGS-1100-05PDV2
Mere information
-
Advanced Security Features
The DGS-1100 series’ web user interface gives administrators an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), and link aggregation (desktop models utilize Static Trunk). With powerful security features including IGMP snooping, Static MAC, and Storm Control, these smart managed switches are a versatile solution for deployments that require easy to configure functionality without added complexities
Simplify Network Management
D-Link’s free Network Assistant (DNA) utility displays all your connected devices and makes first-time configuration a breeze. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection detects loops created by a specific port and automatically shuts down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart Managed Switches to save power without sacrificing performance. The desktop models in the series utilize a fanless design, for silent and energy-efficient operation. All models are also IEEE 802.3az-compliant and feature Link Status detection. -
Administrationsfunktioner Switch-type Administreret Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Gigabit Ethernet (kobber) porte, antal 5 Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Port-spejlning Ja Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Broadcast stormkontrol Ja Auto MDI/MDI-X Ja Head-of-line (HOL) blokering Ja Ethernet LAN-datahastigheder 10000 Mbit/s Auto-forhandling Ja VLAN understøttelse Ja Vituelle LAN funktioner Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 10 Gbit/sek. Hastighed for videresendelse 7,44 Mpps Antal trunks 1 Antal køer 4 Jumbo rammer 9216 Pakke bufferlager 1 MB Sikkerhed DHCP funktioner DHCP client IGMP snooping Ja IGMP indtastninger 128 Statisk port, sikkerhed Ja SSH/SSL support Ja Algoritmer for køplanlægning Weighted Round Robin (WRR) MAC adresse indtastninger Statisk MAC adresse indtastninger Design Stativ-montering Ingen Produktfarve Sort Præstation Flashhukommelse 2 MB Støjniveau 0 dB Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 2357475 t Strømstyring Strømkilde PoE Strømforsyning inkluderet Ingen Strømforbrug (typisk) 3,24 W Strømforbrug (maks.) 24,08 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) porte, antal 2 Power over Ethernet (PoE) effekt pr. port 18 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Vægt & størrelser Bredde 150 mm Dybde 97 mm Højde 28 mm Vægt 380 g Godkendelser Compliance-certifikater BSMI, CB, Federal Communications Commission (FCC), Lavspændingsdirektivet (LVD), VCCI Logistik data Harmoniseret systemkode (HS) 85176990
