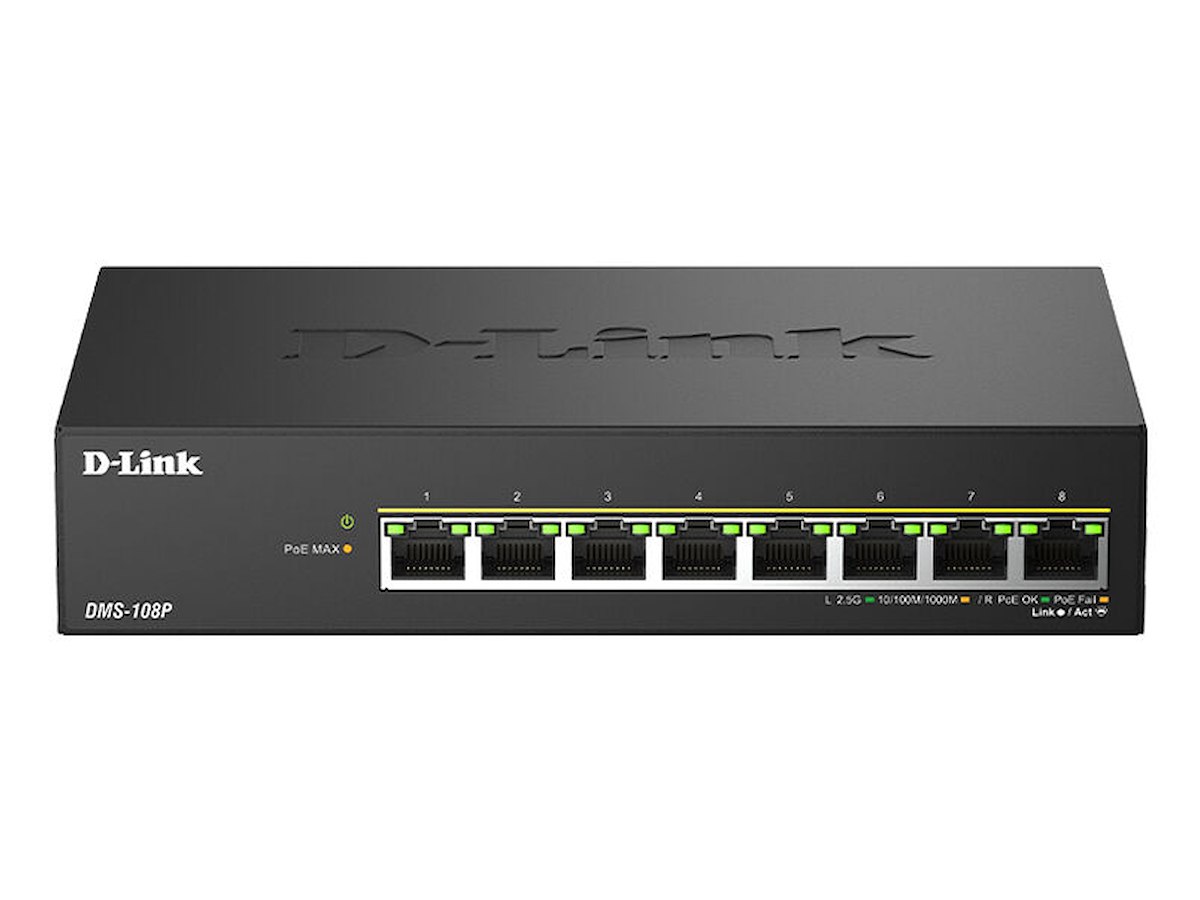

D-Link DMS-108P/E netværksswitch Ikke administreret 2.5G Ethernet (100/1000/2500) Strøm over Ethernet (PoE) Sort
Varenummer: DMS-108P/E
.
DKK 1.737,50 / Stk
DKK 1.390,00 ekskl. moms
  •
D-Link DMS-108P/E. Switch-type: Ikke administreret. Basis omskiftning RJ-45 Ethernet porttype: 2.5G Ethernet (100/1000/2500), Basis omskiftning RJ-45 Ethernet porte, antal: 8. MAC adresselabel: 4000 entries, Switch kapacitet: 40 Gbit/sek.. Netværksstandarder: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u,.... DC indgangsspænding: 54 V. Strømstik: DC-in-stik. Strøm over Ethernet (PoE)


Mere information

  • Plug & Play
    No complex configurations required for fast and easy network connectivity

    Multi-Gigabit​
    Multi-Gigabit ports for high data rate transmission

    High Power Budget
    230W PoE total budget to power more devices

    IEEE802.3bt
    Up to 90W per port enables high-power devices (PD)

    Multicast Optimization
    IGMP snooping feature prevents network flooding

    Silent Operation
    Fanless design for a noise-free working environment

    Unleash Wi-Fi 6 via 2.5G Ports
    As Wi-Fi 6 (802.11ax) delivers ultra-fast speeds and low latency, standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, unlocking the full potential of Wi-Fi 6 for smoother 4K/8K streaming, HD surveillance, AR/VR gaming, data transfer, and data-intensive environments. Future-proof your network and experience Wi-Fi 6 at its best—fast, reliable, and unrestricted.

    Small Size, Big Power
    The DMS-108P with IEEE 802.3bt (PoE++) delivers up to 90W per port with a 230W total power budget, enabling high-performance devices without additional power supplies. Ideal for Wi-Fi 6 access points, PTZ cameras, kiosks, smart LED lighting systems, and much more. PoE++ simplifies installation, reduces cabling costs, and enhances energy efficiency.

    Smarter Multicast, Smoother Performance
    The DMS-108P enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimizes IPTV, surveillance, and enterprise networks.

    Prioritize Traffic for Optimized Performance
    With the DMS-108P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

  • Administrationsfunktioner
    Switch-type Ikke administreret
    Servicekvalitet support (QoS) Ja
    Trafik klassificering Ja
    Porte & Grænseflader
    Basis omskiftning RJ-45 Ethernet porte, antal 8
    Basis omskiftning RJ-45 Ethernet porttype 2.5G Ethernet (100/1000/2500)
    Strømstik DC-in-stik
    Netværk
    Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
    10G understøttelse Ingen
    Auto MDI/MDI-X Ja
    Ethernet LAN-datahastigheder 10,100,1000,2500 Mbit/s
    Dataoverførsel
    MAC adresselabel 4000 entries
    Switch kapacitet 40 Gbit/sek.
    Hastighed for videresendelse 29,76 Mpps
    Opbevar-og-frem Ja
    Design
    Stabelbar Ja
    Produktfarve Sort
    LED-indikatorer Ja
    Præstation
    Gennemsnitstid mellem fejl (MTBF) 140688261 t
    Strømstyring
    Strømkilde DC
    Strømforsyning inkluderet Ja
    DC indgangsspænding 54 V
    Indgangsstrøm 4.62 A
    Strømforbrug (maks.) 261,02 W
    Power over Ethernet (PoE)
    Strøm over Ethernet (PoE) Ja
    Power over Ethernet (PoE) porte, antal 8
    Power over Ethernet (PoE) effekt pr. port 90 W
    Total Power over Ethernet (PoE) 290 W
    Driftsbetingelser
    Driftstemperatur (T-T) 0 - 40 °C
    Opbevaringstemperatur (T-T) -10 - 70 °C
    Relativ luftfugtighed ved drift (H-H) 10 - 90%
    Relativ luftfugtighed ved opbevaring (H-H) 5 - 90%
    Varmeafgivelse 890,6 BUT/t
    Vægt & størrelser
    Bredde 190 mm
    Dybde 120 mm
    Højde 38 mm
    Vægt 753 g
    Godkendelser
    Certificering CB; UL; LVD; FCC; VCCI; IC; BSMI
