Varenummer: DGS-1008MP
Mere information
-

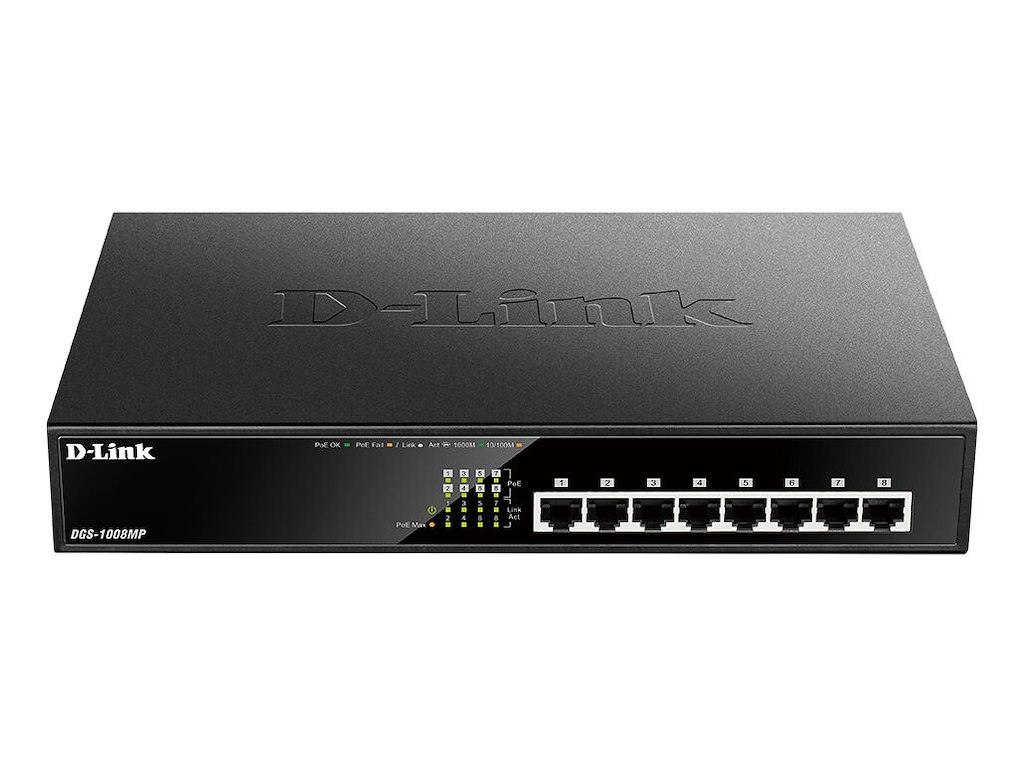

Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.
The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.
No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.
DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Netværk Netværksstandarder IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Fuld duplex Ja Auto MDI/MDI-X Ja Dataoverførsel MAC adresselabel 8000 entries Switch kapacitet 16 Gbit/sek. Opbevar-og-frem Ja Pakke videresendelsesrate (1 Gbps) 14880 pps Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 1488000 pps Pakke bufferlager 0,192 MB Design Stativ-montering Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Strømstyring Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50 - 60 Hz Strømforbrug (typisk) 13,5 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Power over Ethernet plus (PoE+) porte, antal 8 Total Power over Ethernet (PoE) 140 W Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 280 mm Dybde 180 mm Højde 44 mm Vægt 1,84 kg Emballeringsdata Pakkebredde 262 mm Pakkedybde 391 mm Pakkehøjde 102 mm Pakkevægt 2,85 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 28,5 cm Forsendelseskasses kassens bredde (indvendig) 40,6 cm Forsendelseskassens længde (indvendig) 54,5 cm Forsendelsesemballage nettovægt 14,2 kg Produkter pr. forsendelseskasse (indvendig) 5 stk Palle bruttovægt (luft) 563,8 kg Antal papkasser pr. palle (luft) 36 stk Antal pr. palle (luft) 180 stk Pallens bruttolængde 110 cm Pallens bruttobredde 120 cm Pallehøjde (luft) 193,5 cm Palle bruttovægt (hav) 563,8 kg Antal papkasser pr. palle (hav) 36 stk Antal pr. palle (hav) 180 stk Pallehøjde (hav) 193,5 cm Forsendelseskassens bruttovægt (indvendig) 15,3 kg Logistik data Harmoniseret systemkode (HS) 85176990
