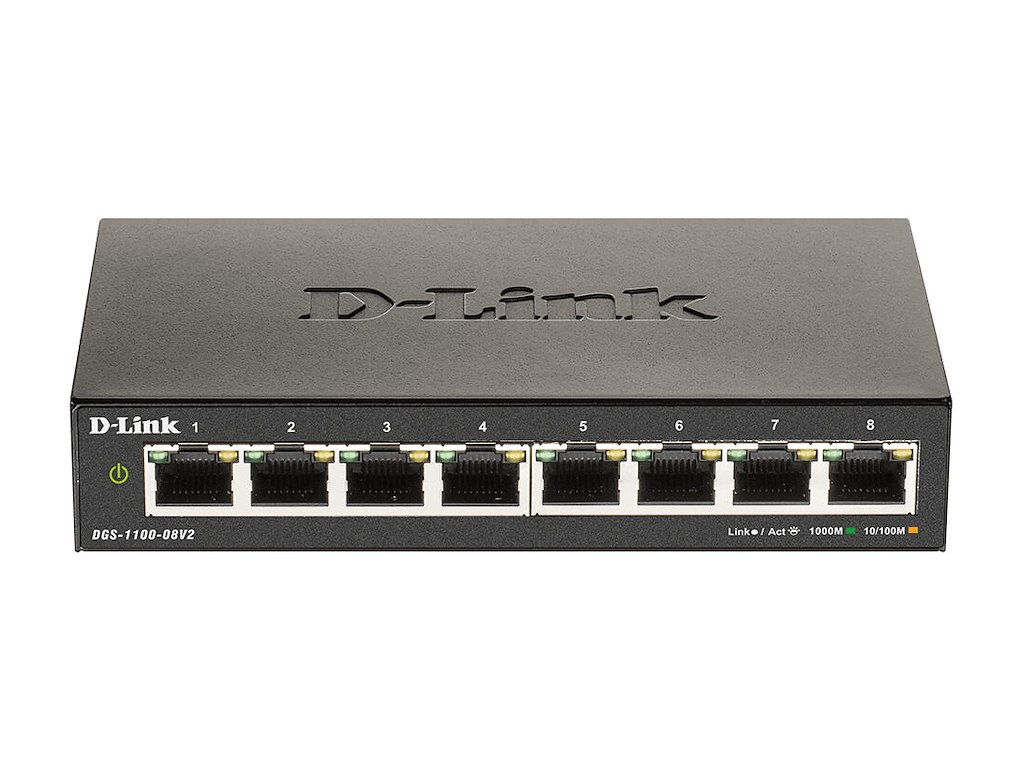

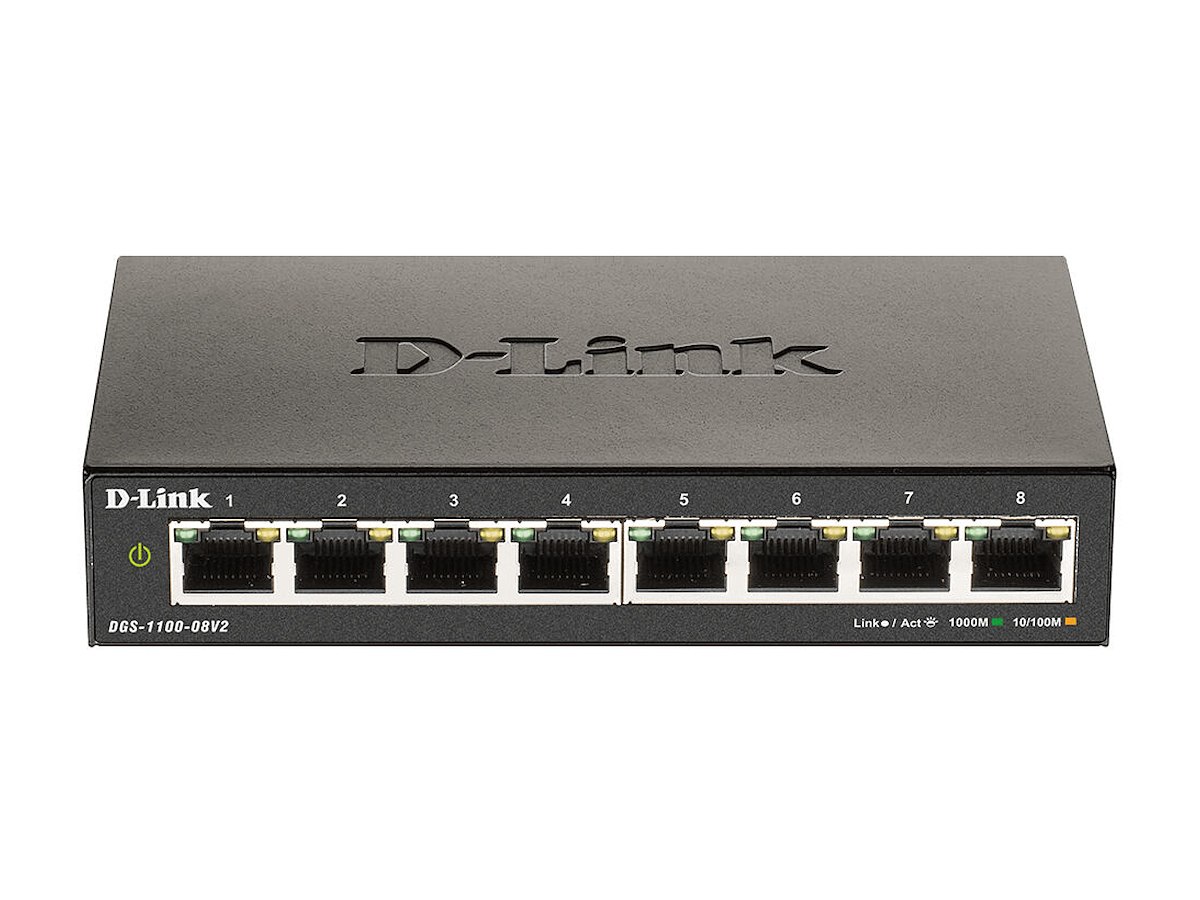

Varenummer: DGS-1100-08V2/B
Mere information
-
Web UI
Easy to use web interface to access management features
VLANs
Segment your network into VLANs.
Easy deployment with automatic configuration
Simply connect the switch to your network and it detects D-Link and third-party devices for easy administration
Energy Efficient Design
Automatic power saving features to reduce power usage
Simple. Easy. Smart.
DGS-1100 Smart Switch Series provides an affordable solution for environments that require simple network management.
Smart Web UI
The DGS-1100's web user interface is an easy way to manage Layer 2 features, such as VLANs, Spanning Tree Protocol (STP), link aggregation (static). With powerful security features like IGMP snooping, Static MAC, and Storm Control, the DGS-1100 Smart family is a versatile solution for environments that require easy to deploy and easy to configure solutions without added complexities.
Free Nuclias Connect remote network management software.
Download our free Nuclias Connect network management software that’s designed for network privacy, control, and cost-effective scaling. It can be used as an on-premises software management platform, or as a cloud solution. Alternatively, the dedicated Nuclias Connect Hub (DNH-100)4 provides hardware-based, centralised network management.
PoE and PoE+, with budgets up to 370W
The DGS-1100 Smart Series includes a range of high power budget PoE-enabled switches for businesses looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Easy Troubleshooting
The DGS-1100 Series features Loopback Detection and Cable Diagnostics to help network administrators find and solve network problems quickly and easily.
Loopback Detection is used to detect loops created by a specific port and automatically shut down the affected port. The Cable Diagnostics feature is designed for network administrators to quickly examine the quality of the copper cables, recognise the cable type, and detect cable errors.
Green Technology
D-Link Green technology enables the DGS-1100 Smart series to save power without sacrifices. The majority of the family utilises a fanless design, for silent and energy efficient operation. All are IEEE 802.3az compliant and feature Link Status detection and Time-Based PoE (excluding DGS-1100-05PD and DGS-1100-08P models). -
Administrationsfunktioner Switch-type Administreret Switch lag L2 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Gigabit Ethernet (kobber) porte, antal 8 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 1000BASE-T Port-spejlning Ja Fuld duplex Ja Halv dupleks Ja Flowkontrol support Ja Broadcast stormkontrol Ja Auto MDI/MDI-X Ja Head-of-line (HOL) blokering Ja Auto-forhandling Ja VLAN understøttelse Ja Vituelle LAN funktioner Management VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Dataoverførsel MAC adresselabel 4000 entries Switch kapacitet 16 Gbit/sek. Hastighed for videresendelse 11,9 Mpps Antal køer 4 Jumbo Frames support Ja Jumbo rammer 9216 Pakke bufferlager 1,5 MB Sikkerhed IGMP snooping Ja IGMP indtastninger 128 Statisk port, sikkerhed Ja Algoritmer for køplanlægning SP, Weighted Round Robin (WRR) Design Stativ-montering Ingen Produktfarve Sort Knap til nulstilling Ja Antal blæsere 0 blæser(e) Præstation Støjniveau 0 dB Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 1456992 t Strømstyring Strømkilde DC Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz DC indgangsspænding 5 V Indgangsstrøm 1 A Strømforbrug (maks.) 4,94 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 90% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Driftshøjde 0 - 2000 m Varmeafgivelse 16,85 BUT/t Vægt & størrelser Bredde 145 mm Dybde 82 mm Højde 28 mm Vægt 340 g Godkendelser Compliance-certifikater BSMI, CE, Federal Communications Commission (FCC), Lavspændingsdirektivet (LVD), VCCI, cUL Logistik data Harmoniseret systemkode (HS) 85176990
