Fast Networking Made Easy
With data transfer speeds of up to 200 Mbps at full duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Auto MDI/MDIX crossover makes connection a cinch; just plug in your cables and you’re ready to go.
Economical, Plug-and-play Networking Switch

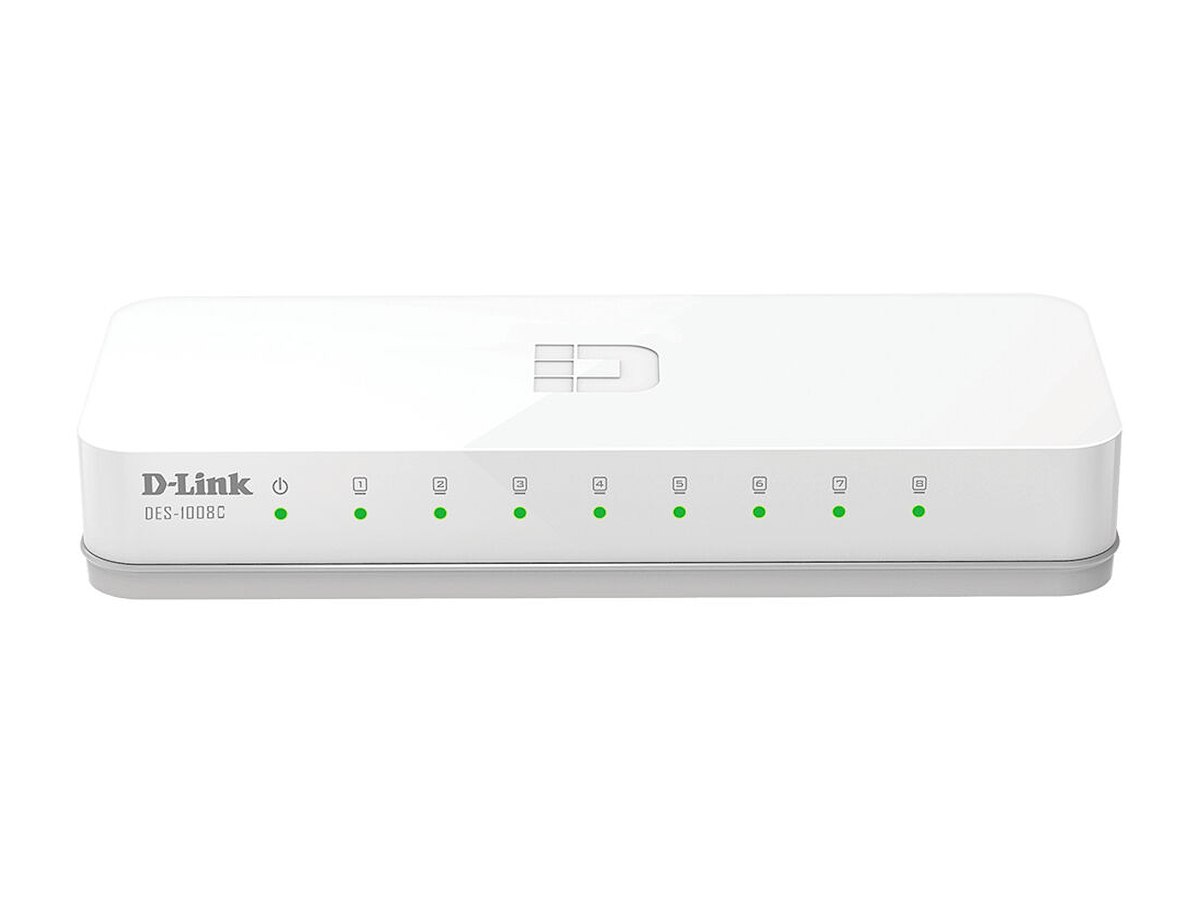

The DES-1008C 10/100 Mbps Unmanaged Switch is an economical, plug-and-play networking switch for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It gives you eight 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity.
Conserve Energy
The DES-1008C implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. It can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DES-1008C is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, giving you a more reliable connection for all of your connected devices. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 8 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Ethernet LAN-datahastigheder 10,100 Mbit/s Auto-forhandling Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 1,6 Gbit/sek. Hastighed for videresendelse 1,19 Mpps Opbevar-og-frem Ja Jumbo Frames support Ja Pakke videresendelsesrate (100 Mbps) 148800 pps Pakke videresendelsesrate (10 Mbps) 14880 pps Pakke bufferlager 0,093 MB Design Stativ-montering Ingen Stabelbar Ingen Formfaktor Desktop Produktfarve Hvid LED-indikatorer Aktivitet, Link, Strøm, Hastighed Præstation Ventilatorfri Ja Gennemsnitstid mellem fejl (MTBF) 1579582 t Strømstyring Strømkilde DC DC indgangsspænding 5 V Indgangsstrøm 0.55 A Strømforbrug (maks.) 1,55 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) 0 - 40 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 0,691 BUT/t Vægt & størrelser Bredde 131 mm Dybde 54 mm Højde 21 mm Vægt 74,8 g
