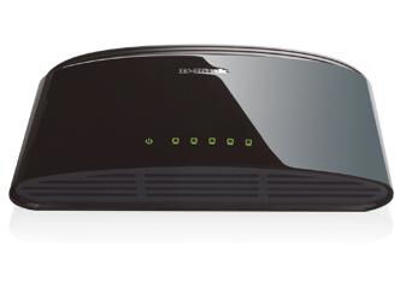

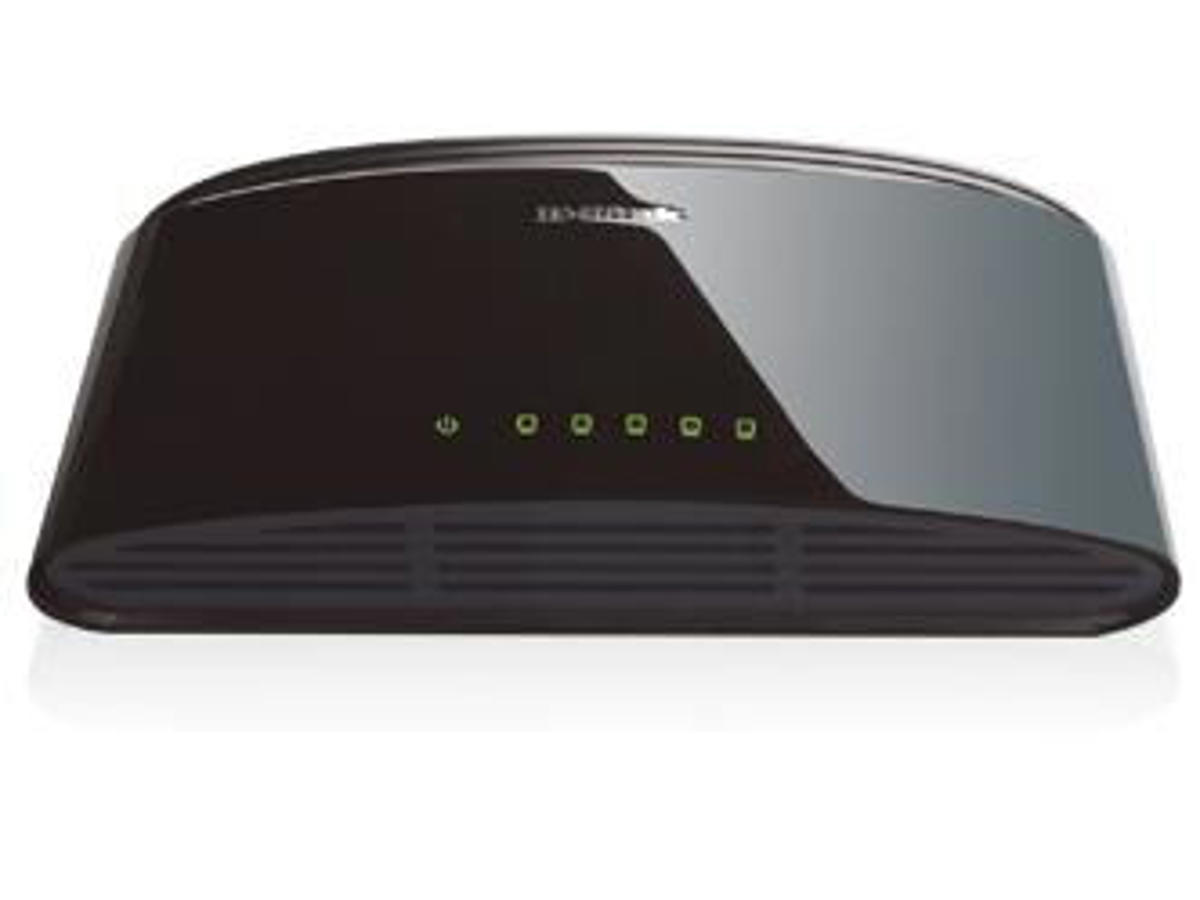

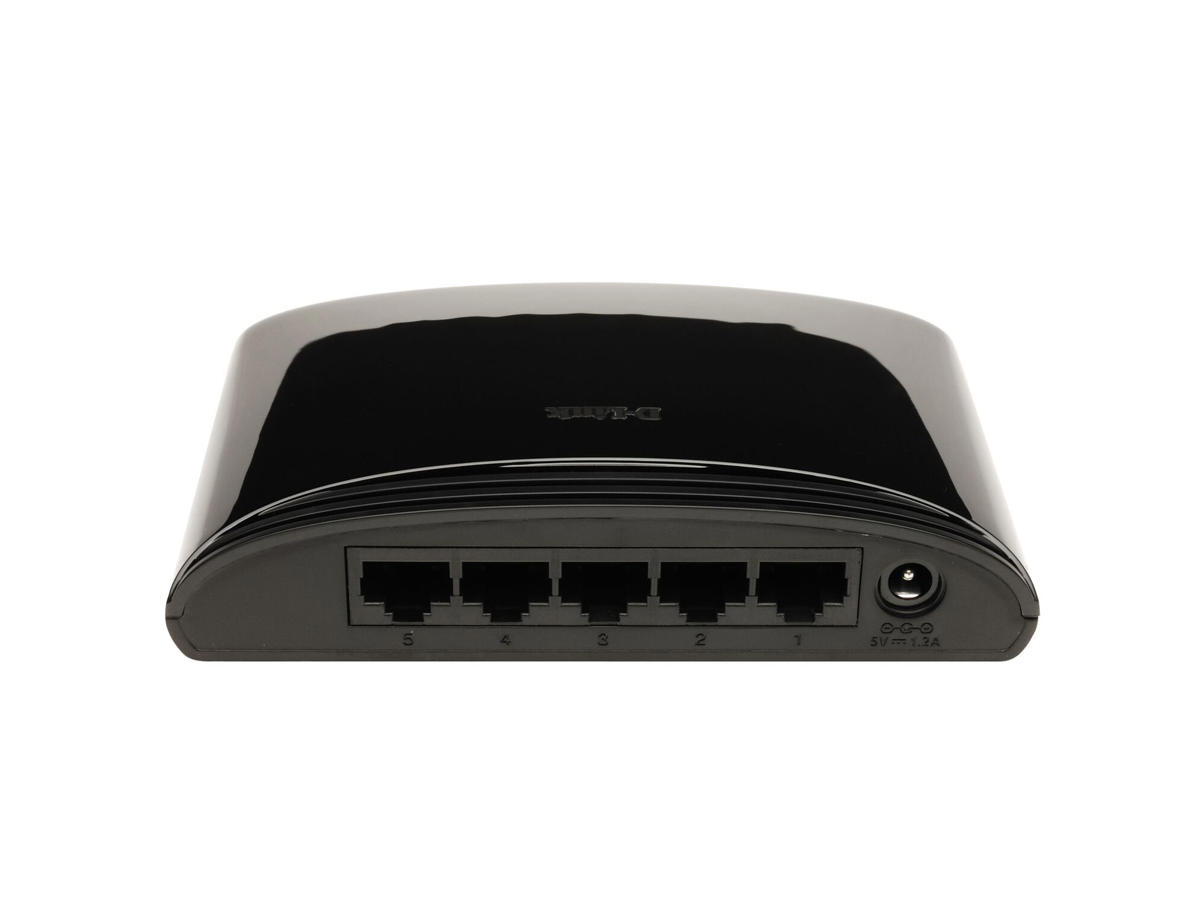

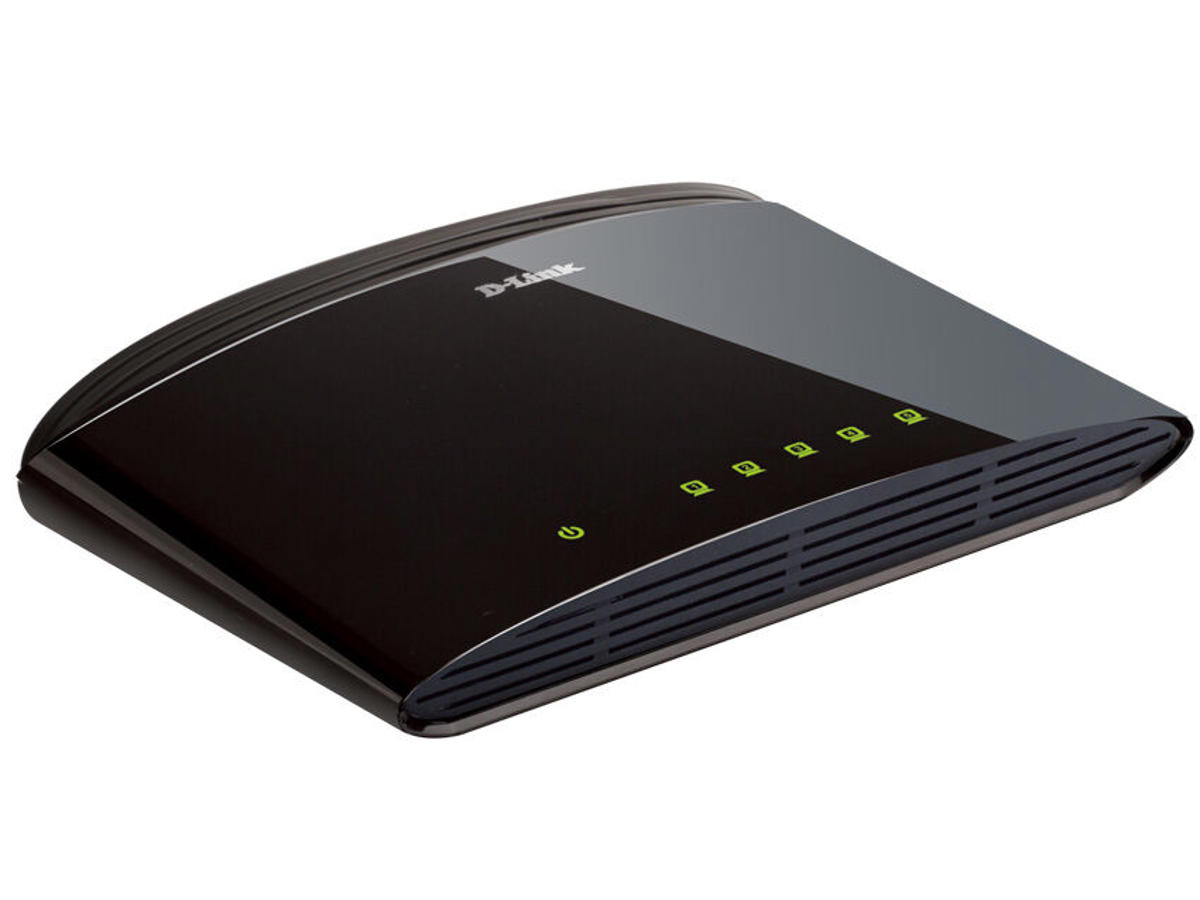

D-Link's DES-1005D is a powerful 5 port 10/100Mbps desktop switch that is an ideal choice for small workgroups.
The DES-1005D allows users to simply plug any port to either a 10Mbps Ethernet or 100Mbps Fast Ethernet network for compatibility, convenience, and faster connection. The switch comes in a small compact size designed for easy installation and high performance. The DES-1005D eliminates unnecessary traffic and relieves data congestion by delivering dedicated bandwidth for each of the five ports.
Each port on the DES-1005D supports automatic MDI/MDIX detection providing true 'plug and play' capability without the need for confusing crossover cables or crossover ports. With the media auto-sensing feature, plug in the network cable to the DES-1005D directly without the need to worry if the end node is a NIC (Network Interface Card) or switch/hub. The DES-1005D also supports flow control and auto-negotiation of half or full duplex transfer modes for each port.
The DES-1005D provides dynamic memory allocation for data flow control to guarantee against possible packet loss. The DSS-5+ uses fast store-and-forward switching to ensure low data latency and prevents error packages from transmitting among segments.
Auto-sensing 10/100 ports
The DES-1005D uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.
Auto MDI/MDIX CrossOver
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.
Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full. This gives you a more reliable connection for all of your connected devices. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 5 Basis omskiftning RJ-45 Ethernet porttype Fast Ethernet (10/100) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Strømstik DC-in-stik Netværk Netværksstandarder IEEE 802.3, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ingen Kobber ethernet kabelteknologi 100Base-TX, 10Base-T Understøttede kabeltyper Cat3, Cat4, Cat5, Cat5e Fuld duplex Ja Flowkontrol support Ja Auto MDI/MDI-X Ja Auto-forhandling Ja MAC-adresse auto-indlæring understøttet Ja Dataoverførsel MAC adresselabel 2000 entries Switch kapacitet 1 Gbit/sek. Understøttede dataoverførselshastigheder 10/20/100/200 Mb/s Hastighed for videresendelse 0,1488 Mpps Opbevar-og-frem Ja Maksimal dataoverførselshastighed 0,2 Gbit/sek. Pakke bufferlager 0,046875 MB Design Stativ-montering Ingen Stabelbar Ingen Produktfarve Sort LED-indikatorer LAN, Strøm Præstation Plug and play Ja Strømstyring Strømforbrug (typisk) 2,5 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Andre funktioner Hastighed af pakkeoverførsel 14880 - 148800 p/s Strøm-LED Ja Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) -10 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 8,528 BUT/t Vægt & størrelser Bredde 125,3 mm Dybde 83,4 mm Højde 29,1 mm Emballage indhold Kabler inkluderet Vekselstrøm Brugervejledning Ja Emballeringsdata Pakkebredde 65 mm Pakkedybde 105 mm Pakkehøjde 98 mm Pakkevægt 170 g Tekniske detaljer Forsendelseskassens højde (indvendig) 23 cm Forsendelseskasses kassens bredde (indvendig) 35 cm Forsendelseskassens længde (indvendig) 51,5 cm Forsendelsesemballage nettovægt 8,5 kg Produkter pr. forsendelseskasse (indvendig) 50 stk Palle bruttovægt (luft) 465,2 kg Antal papkasser pr. palle (luft) 48 stk Antal pr. palle (luft) 2400 stk Pallens bruttolængde 110 cm Pallens bruttobredde 120 cm Pallehøjde (luft) 197,5 cm Palle bruttovægt (hav) 465,2 kg Antal papkasser pr. palle (hav) 48 stk Antal pr. palle (hav) 2400 stk Pallehøjde (hav) 197,5 cm Forsendelseskassens bruttovægt (indvendig) 9,25 kg Godkendelser Certificering RoHS, FCC, CE Logistik data Harmoniseret systemkode (HS) 85176990
