Varenummer: DGS-1510-52XMP/E
Mere information
-
Industry Standard CLI with 10G SFP+ stacking

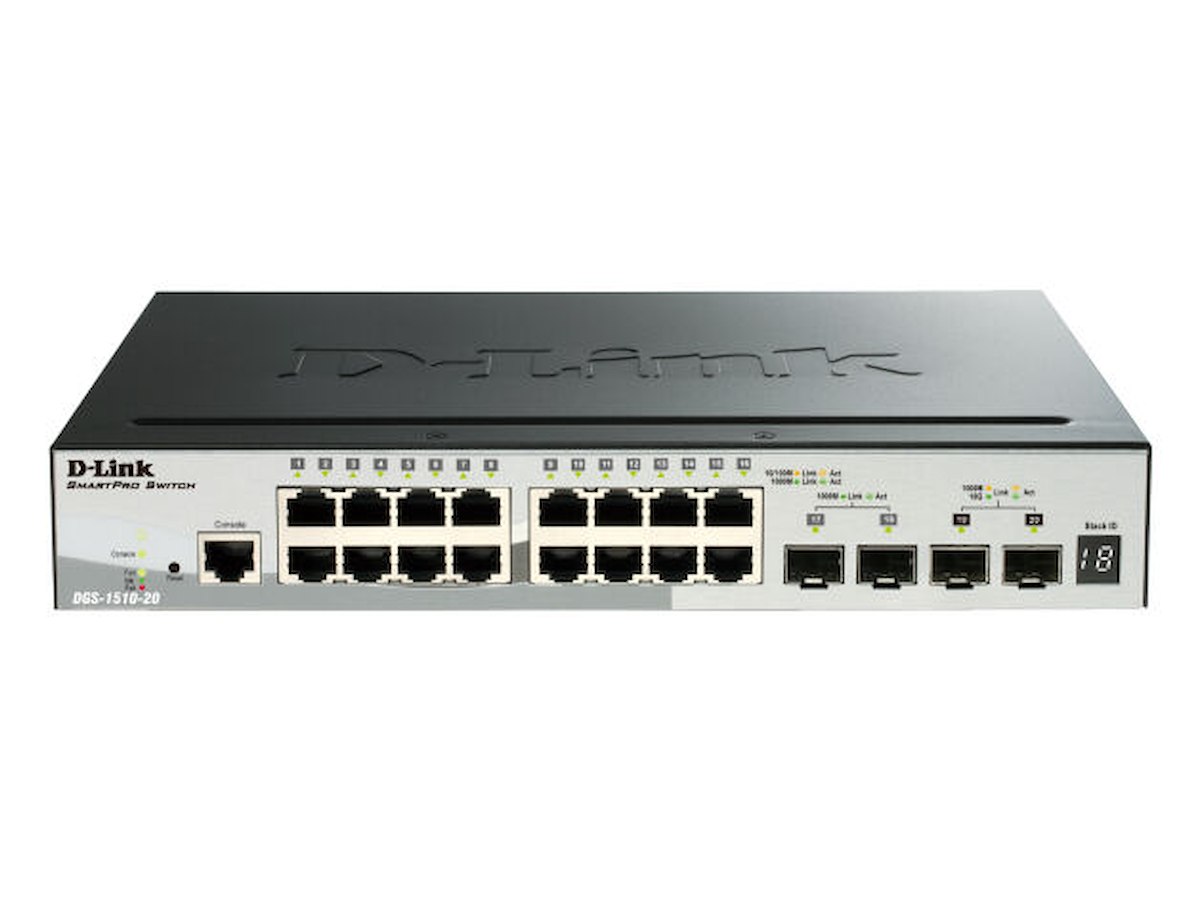

The D-Link DGS-1510 Series is the latest generation of Smart Managed switches with 10G SFP+ fibre ports for physical stacking or uplinks. The combination of high bandwidth connections, an Industry Standard CLI, and PoE options make the DGS-1510 Series ideal for Small-Medium Enterprise environments.
Fully‑Featured with Layer 3 Traffic Management
The DGS-1510 family has advanced network management options, accessible via Industry Standard CLI, Serial Port Console or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, multiple firmware images,and multiple configuration files.
10G SFP+ Stacking
Create a physical stack of up to 6 units in a fault‑tolerant ring or linear topology using Direct Attach Cables or any compatible SFP+ transceivers for a total of 288 Gigabit ports. The remaining uplink ports can be used for other functions, offering 10G connectivity to core networks and servers.1
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1510 family is a versatile solution for enterprise network environments.
Max PoE with budgets up to 740W2
Choose between 193W and 370W power budget options. Or utilise a total of 740W when adding a redundant power supply to the DGS-1510-52XMP.
Powerful Network Design and Management Software
The DGS-1510 Series supports D-View 8, an intelligent management platform that allows for centralized management of the core network. This extensive toolset enables administrators to easily set up and remotely manage their networks, greatly reducing switch deployment time.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1510 series to save power without sacrificing performance. The entire series of switches feature a smart fan that adjusts fan-speed and only powers on above a certain temperature. With advanced silicon technology, the DGS-1510 series saves up to 73% of energy compared to normal switches. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Trafik klassificering Ja ARP inspektion Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 48 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal SFP + modulslots 4 Netværk Netværksstandarder IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x 10G understøttelse Ja Understøttede kabeltyper Cat5, Cat5e Fuld duplex Ja Auto MDI/MDI-X Ja Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 128 Gbit/sek. Gennnemløb 95,24 Mpps Antal IP-grænseflader 16 Jumbo Frames support Ja Jumbo rammer 9216 Multicast funktioner Multicast-understøttelse Ja MAC-adresse tabel (multicast) 512 entries Design Stativ-montering Ja Stabelbar Ja Produktfarve Sort Knap til nulstilling Ja LED-indikatorer Aktivitet, Link, PoE, Hastighed Antal blæsere 3 blæser(e) Præstation Støjniveau 56,9 dB Strømstyring Strømforsyning inkluderet Ja Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 486,9 W Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ja Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -20 - 70 °C Relativ luftfugtighed ved drift (H-H) 0 - 95% Relativ luftfugtighed ved opbevaring (H-H) 0 - 95% Varmeafgivelse 138,787 BUT/t Vægt & størrelser Bredde 440 mm Dybde 308 mm Højde 44 mm Vægt 5,41 kg Emballeringsdata Pakkebredde 475 mm Pakkedybde 520 mm Pakkehøjde 110 mm Pakkevægt 7,26 kg Godkendelser Certificering CE FCC C-Tick VCCI BSMI cUL CB
