Power & Value

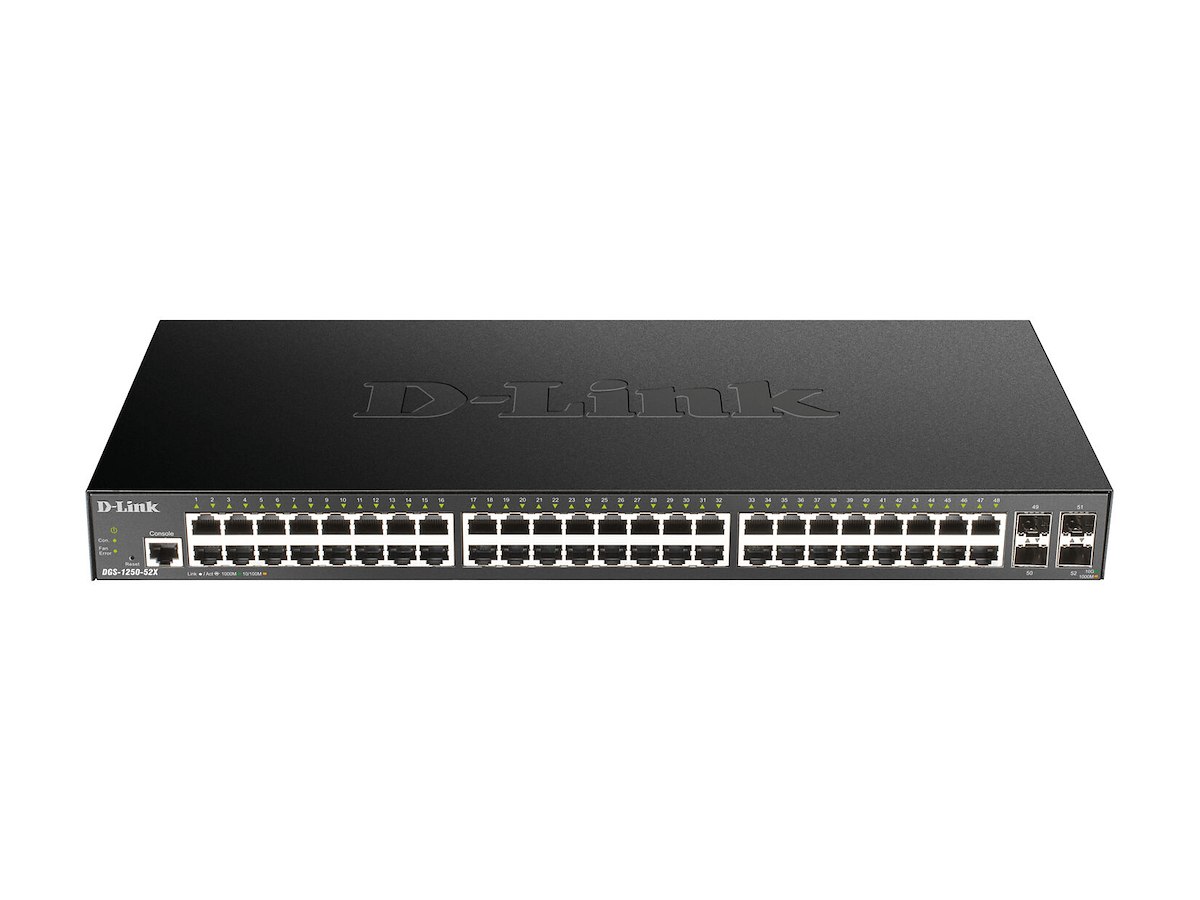

The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.
The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.
Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.
Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.
Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
| Administrationsfunktioner | |
| Switch-type | Administreret |
| Switch lag | L3 |
| Servicekvalitet support (QoS) | Ja |
| Webbaseret administration | Ja |
| ARP inspektion | Ja |
| Konfigurerer lokationsindstillinger (CLI) | Ja |
| System hændelseslog | Ja |
| MIB support | RFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620, |
| Porte & Grænseflader | |
| Basis omskiftning RJ-45 Ethernet porte, antal | 48 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Antal installerede SFP moduler | 0 |
| Antal installerede SFP+ moduler | 0 |
| Antal SFP + modulslots | 4 |
| Port til konsol | RJ-45 |
| Netværk | |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ja |
| Flowkontrol support | Ja |
| Link aggregering | Ja |
| Broadcast stormkontrol | Ja |
| Auto MDI/MDI-X | Ja |
| Spanning tree protokol | Ja |
| Head-of-line (HOL) blokering | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Voice VLAN |
| Antal VLAN'er | 4094 |
| Optisk fiber | |
| Fiber ethernet kabelteknologi | 100BASE-FX, 1000BASE-LHX, 1000BASE-X, 1000BASE‑LX, 1000BASE‑SX, 1000BASE‑ZX |
| Dataoverførsel | |
| MAC adresselabel | 32000 entries |
| Switch kapacitet | 176 Gbit/sek. |
| Hastighed for videresendelse | 130,95 Mpps |
| Statisk rute | Ja |
| Stastiske routere | 124 |
| Jumbo Frames support | Ja |
| Jumbo rammer | 12000 |
| Pakke bufferlager | 16 MB |
| Sikkerhed | |
| DHCP funktioner | DHCP client, DHCP server, DHCP snooping |
| Adgangskontrolliste (ACL) | Ja |
| Adgangskontrolliste (ACL) regler | 768 |
| IGMP snooping | Ja |
| Sikkerhedsalgoritmer | EAP, LEAP, MD5, PEAP, SSH, SSL/TLS, TTLS |
| Loop beskyttelse | Ja |
| IP-MAC-portbinding | Ja |
| Algoritmer for køplanlægning | Weighted Round Robin (WRR) |
| Multicast funktioner | |
| Multicast-understøttelse | Ja |
| Design | |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| LED-indikatorer | Aktivitet, Link, Strøm, Hastighed |
| Elektromagnetisk kompatibilitet | CE A, VCCI A, FCC A, IC, BSMI |
| Præstation | |
| Hukommelsestype | DDR3-SDRAM |
| Intern hukommelse | 2048 MB |
| Flashhukommelse | 64 MB |
| Støjniveau | 50,7 dB |
| Gennemsnitstid mellem fejl (MTBF) | 589984,72 t |
| Strømstyring | |
| Strømforsyning inkluderet | Ja |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Strømforbrug (maks.) | 51,2 W |
| Power over Ethernet (PoE) | |
| Strøm over Ethernet (PoE) | Ingen |
| Driftsbetingelser | |
| Driftstemperatur (T-T) | -5 - 50 °C |
| Opbevaringstemperatur (T-T) | -20 - 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 - 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 - 95% |
| Varmeafgivelse | 174,592 BUT/t |
| Vægt & størrelser | |
| Bredde | 440 mm |
| Dybde | 210 mm |
| Højde | 44 mm |
| Vægt | 3,01 kg |
| Emballeringsdata | |
| Pakkebredde | 351 mm |
| Pakkedybde | 565 mm |
| Pakkehøjde | 91 mm |
| Pakkevægt | 4,28 kg |
| Godkendelser | |
| Certificering | CB, UL, BSMI, CCC |
