Varenummer: DGS-3630-52TC/SI/E
Mere information
-

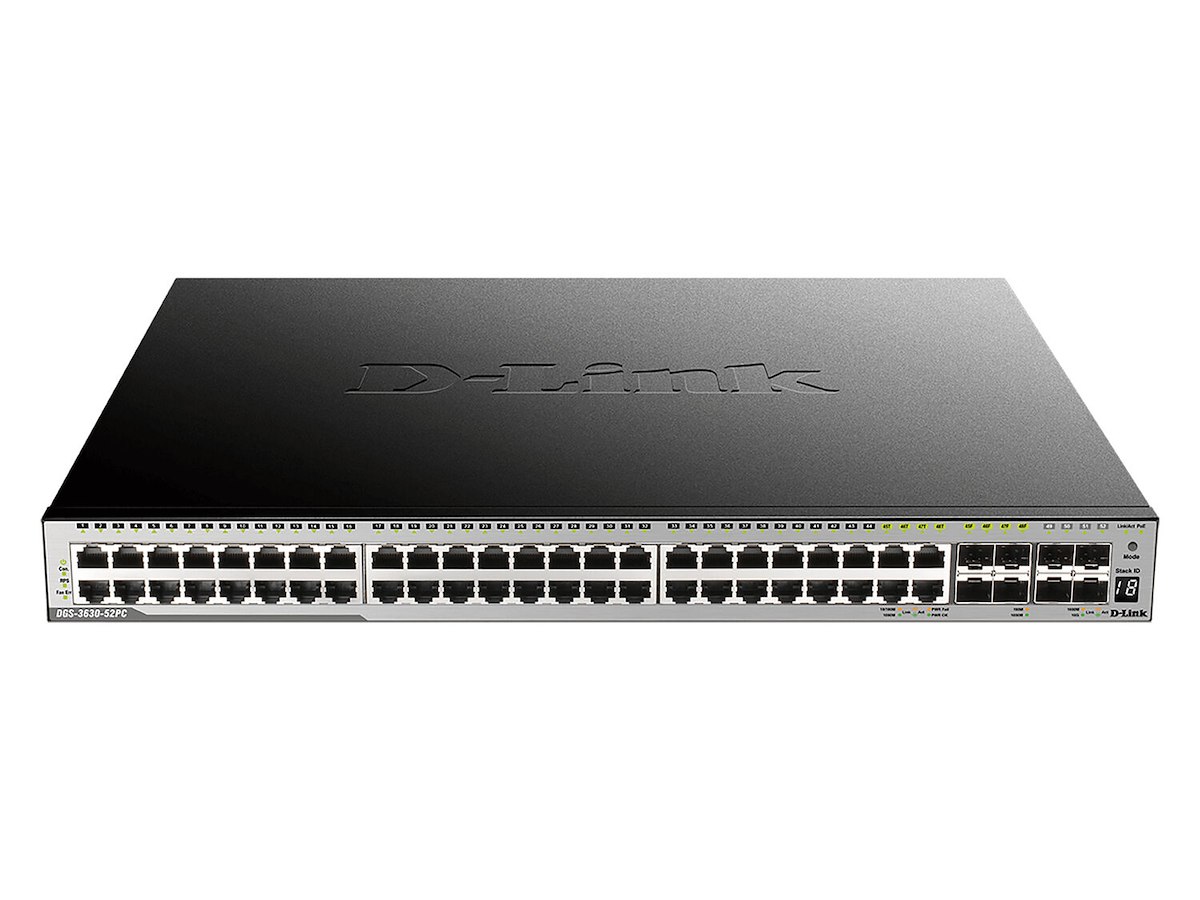

The DGS-3630 Series Gigabit L3 Stackable Managed Switches are a range of switches designed for Small to Medium Businesses (SMBs), Small to Medium Enterprises (SMEs), enterprises and ISPs. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches.
Stackable Managed Switches
- Designed for Small to Medium Businesses, Enterprises and ISPs
- Deliver high performance, flexibility, fault tolerance, and advanced software features
- Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches
- High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications
- DGS-3630-28PC and DGS-3630-52PC feature Power over Ethernet, which allows PoE-powered devices to be powered by the switch through a standard Ethernet cable.
Outperforming the competition
The DGS-3630-28TC was benchmarked against a market leading competitor's device. It matched or exceeded the competitor's performance across all tests despite being significantly lower in price with a much lower power consumption.
Versatile Management
The DGS-3630 Series provides:
- Network Assistant Utility
- Industry-standard CLI
- Intuitive web-based management interface
Support for SNMP allows centralized management of a large number of devices and out-of-band management is available via a dedicated console port.
A mini-USB console port allows the DGS-3630 Series to be managed without any extra connectors, and a USB Type A port can be used to store logs, configuration, and firmware images.
High Availability and Flexibility
Includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack.
Scale your network using just a stacking cable and without the need for stacking modules.
Increased redundancy over multiple physical units, simplifies management and provides a single IP address to manage all members in the stack.
Security, Performance & Availability
Robust set of QoS features helps ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network.
The D-Link Safeguard Engine increases the switch’s reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks. -
Administrationsfunktioner Switch-type Administreret Switch lag L3 Servicekvalitet support (QoS) Ja Webbaseret administration Ja Trafik klassificering Ja ARP inspektion Ja System hændelseslog Ja Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 44 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Gigabit Ethernet (kobber) porte, antal 44 Kombo SFP porte, antal 4 Antal SFP + modulslots 4 Port til konsol RJ-45/Mini-USB Antal USB 2.0-porte 1 Strømstik AC-in jack Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ja Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 1000BASE-T Port-spejlning Ja Fuld duplex Ja Routing indtastninger 16000 Flowkontrol support Ja Link aggregering Ja Broadcast stormkontrol Ja Spanning tree protokol Ja Ethernet ringbeskyttelsesskift (ERPS) Ja VLAN understøttelse Ja Vituelle LAN funktioner IP subnet–based VLAN, MAC address-based VLAN, MVRP, Multicast VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Dataoverførsel MAC adresselabel 68000 entries Switch kapacitet 176 Gbit/sek. Hastighed for videresendelse 130,95 Mpps Antal køer 8 Statisk rute Ja Stastiske routere 512 Antal IP-grænseflader 256 Jumbo Frames support Ja Jumbo rammer 12000 Pakke bufferlager 4 MB Sikkerhed DHCP funktioner DHCP auto-config, DHCP client, DHCP guarding, DHCP relay, DHCP server, DHCP snooping Adgangskontrolliste (ACL) Ja IGMP snooping Ja Sikkerhedsalgoritmer 802.1x RADIUS, SSH, SSH-2, SSL/TLS Filtrering af MAC-adresser Ja SSH/SSL support Ja Loop beskyttelse Ja BPDU filtrering/beskyttelse Ja Godkendelse Gæste VLAN, Portbaseret godkendelse Root beskyttelse Ja Godkendelsestype IEEE 802.1x Algoritmer for køplanlægning SP, WRR+SP, Weighted Round Robin (WRR), Weighted random early detection (WRED) Multicast funktioner Multicast-understøttelse Ja Multicast Listener Discovery (MLD) snooping Y Protokoller Administrationsprotokoller SNMP, NTPv3/v4, Telnet Routing-protokoller BGP4, OSPFv3, RIP, RIP-1, RIP-2, RIPng, VRRP IP Source Guard (IPSG) Ja Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort LED-indikatorer Ja Antal blæsere 2 blæser(e) Sikkerhed cUL, CB, CE, CCC, BSM Elektromagnetisk kompatibilitet CE, FCC Class A, C-Tick, VCCI, BSMI, CCC Præstation Virtuelle stabling 32 Støjniveau 53,9 dB Dying Gasp Ja Gennemsnitstid mellem fejl (MTBF) 263936,78 t Strømstyring Strømkilde Vekselstrøm Strømforsyning inkluderet Ja Redundant strømforsyning Ja Antal strømforsyninger 1 Vekselstrømsindgangsspænding 100 - 240 V Strømforbrug (maks.) 62 W Beskyttelse ved overspænding Ja Overspændingsbeskyttelse 6 kV Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Varmeafgivelse 212 BUT/t Vægt & størrelser Bredde 441 mm Dybde 259,8 mm Højde 44 mm Vægt 4,04 kg Emballeringsdata Pakkebredde 538 mm Pakkedybde 560 mm Pakkehøjde 170 mm Pakkevægt 5,55 kg Godkendelser Compliance-certifikater BSMI, CCC, CE, Federal Communications Commission (FCC), RoHS, VCCI Logistik data Harmoniseret systemkode (HS) 85176990
