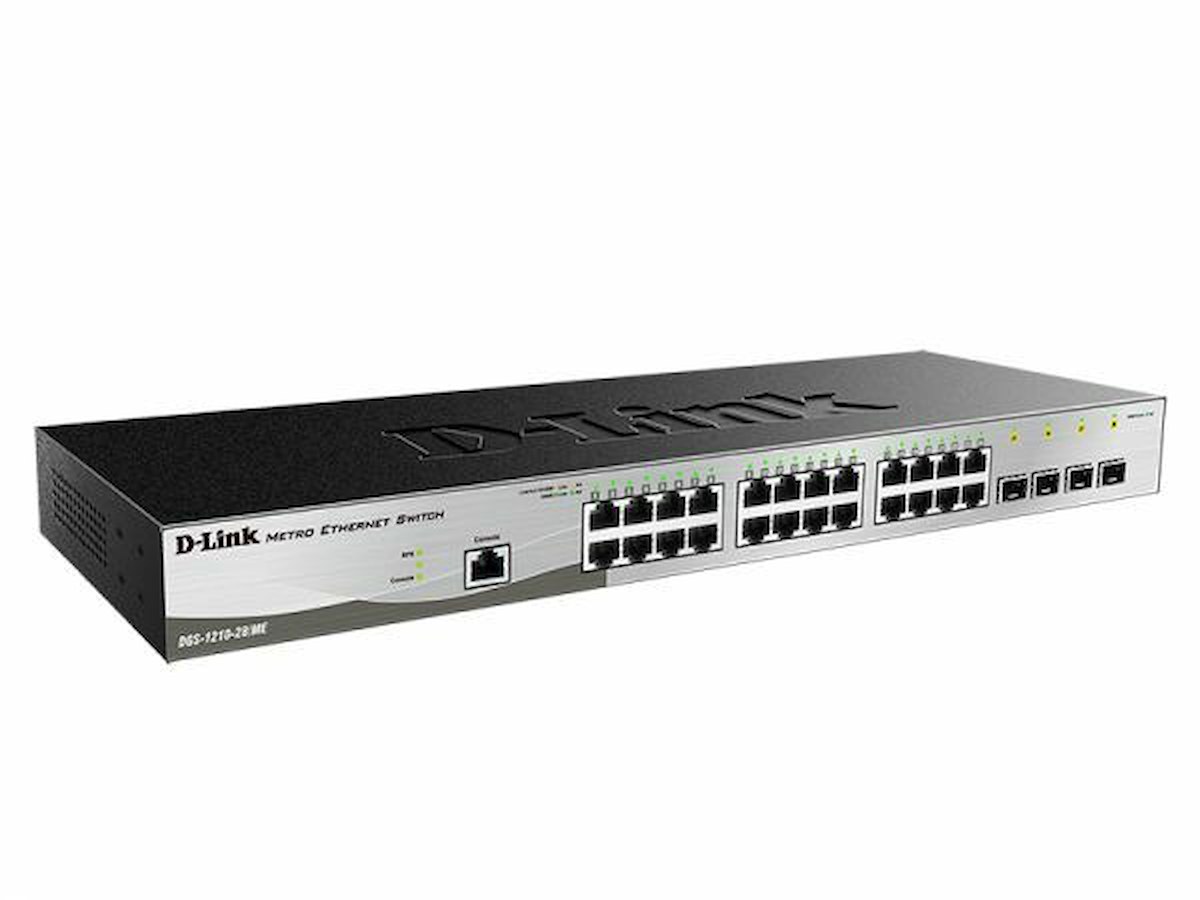

Varenummer: DGS-1210-28/ME/E
Mere information
-
Gigabit Performance
The DGS-1210/ME Series Gigabit Managed Switches come in a variety of port setups, including Gigabit Ethernet RJ-45 and SFP ports. The DGS-1210-10P/ME, DGS-1210-28P/ME and DGS-1210-52MP/ME switches feature Power over Ethernet (PoE), allowing compatible devices to be installed and powered in remote locations without immediate access to power outlets.
Efficient and Resilient Networking
For mission critical environments, the DGS-1210/ME Series Gigabit Managed Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The Spanning Tree Protocol allows the switches to participate in Spanning Tree topology, providing an alternative Layer 2 path in the event of a network failover. The switches also support IEEE 802.3ad link aggregation, which enables multiple ports to be grouped to form a single virtual port, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.
Traffic & Bandwidth Control
Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64 Kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64 Kbps for egress queue bandwidth. The DGS-1210/ME Series also supports traffic control, which optimizes performance by dropping packets when exceeding a set threshold, while port mirroring helps administrators facilitate traffic diagnostics and track network performance. The DGS-1210/ME Series also provides IGMP snooping with IGMP authentication to prune multicast traffic and to optimize available bandwidth. -
Administrationsfunktioner Switch-type Administreret Switch lag L2+ Servicekvalitet support (QoS) Ja Webbaseret administration Ja Trafik klassificering Ja MIB support RFC1213MIB II, RFC1493, RFC1907, RFC1757, 2819, RFC2021, RFC1398, 1643, 1650, 2358, 2665, RFC2674, 4363, RFC 2233, 2863, RFC 2618, RFC 2620, RFC 2925 Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 24 Basis omskiftning RJ-45 Ethernet porttype Gigabit Ethernet (10/100/1000) Antal installerede SFP moduler 0 Antal installerede SFP+ moduler 0 Antal SFP modulslots 4 Fiber optisk strømstik SFP Port til konsol RJ-45 Netværk Netværksstandarder IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ah, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z 10G understøttelse Ingen Kobber ethernet kabelteknologi 10BASE-T, 100BASE-TX, 100BASE-T, 1000BASE-T Port-spejlning Ja Fuld duplex Ja IP-routing Ja Flowkontrol support Ja Link aggregering Ja Begrænsning af hastighed Ja Auto MDI/MDI-X Ja Spanning tree protokol Ja Auto-sensing Ja VLAN understøttelse Ja Vituelle LAN funktioner MAC address-based VLAN, Port-based VLAN, Tagged VLAN, Voice VLAN Antal VLAN'er 4094 Optisk fiber Fiber ethernet kabelteknologi 1000BASE-X Dataoverførsel MAC adresselabel 16000 entries Switch kapacitet 56 Gbit/sek. Hastighed for videresendelse 41,7 Mpps Opbevar-og-frem Ja Antal køer 8 Stastiske routere 32 Jumbo Frames support Ja Jumbo rammer 9216 Pakke bufferlager 1,5 MB Sikkerhed DHCP funktioner DHCP client Adgangskontrolliste (ACL) Ja Adgangskontrolliste (ACL) regler 256 IGMP snooping Ja Sikkerhedsalgoritmer 802.1x RADIUS, SNMP, SSH SSH/SSL support Ja Loop beskyttelse Ja BPDU filtrering/beskyttelse Ja IP-MAC-portbinding Ja Godkendelse Gæste VLAN, MAC-baseret godkendelse, Portbaseret godkendelse Multicast funktioner Multicast-understøttelse Ja Multicast Listener Discovery (MLD) snooping MLD v1, MLD v2 Design Stativ-montering Ja Stabelbar Ja Formfaktor 1U Produktfarve Sort, Grå LED-indikatorer Aktivitet, Ventilatorfejl, Link, Strøm, Hastighed Antal blæsere 2 blæser(e) Elektromagnetisk kompatibilitet FCC A, CE A, VCCI, C-Tick, BSMI, CCC Præstation Hukommelsestype DDR3-SDRAM Intern hukommelse 256 MB Flashhukommelse 32 MB Støjniveau 52,4 dB Strømstyring Strømkilde Vekselstrøm/jævnstrøm Vekselstrømsindgangsspænding 100 - 240 V Vekselstrømsindgangsfrekvens 50/60 Hz Strømforbrug (typisk) 27,49 W Driftsbetingelser Driftstemperatur (T-T) -5 - 50 °C Opbevaringstemperatur (T-T) -40 - 70 °C Relativ luftfugtighed ved drift (H-H) 10 - 90% Relativ luftfugtighed ved opbevaring (H-H) 5 - 90% Varmeafgivelse 850,58 BUT/t Vægt & størrelser Bredde 440 mm Dybde 210 mm Højde 44 mm Vægt 3,86 kg Godkendelser Certificering IEC61000-4-5, RoHS
