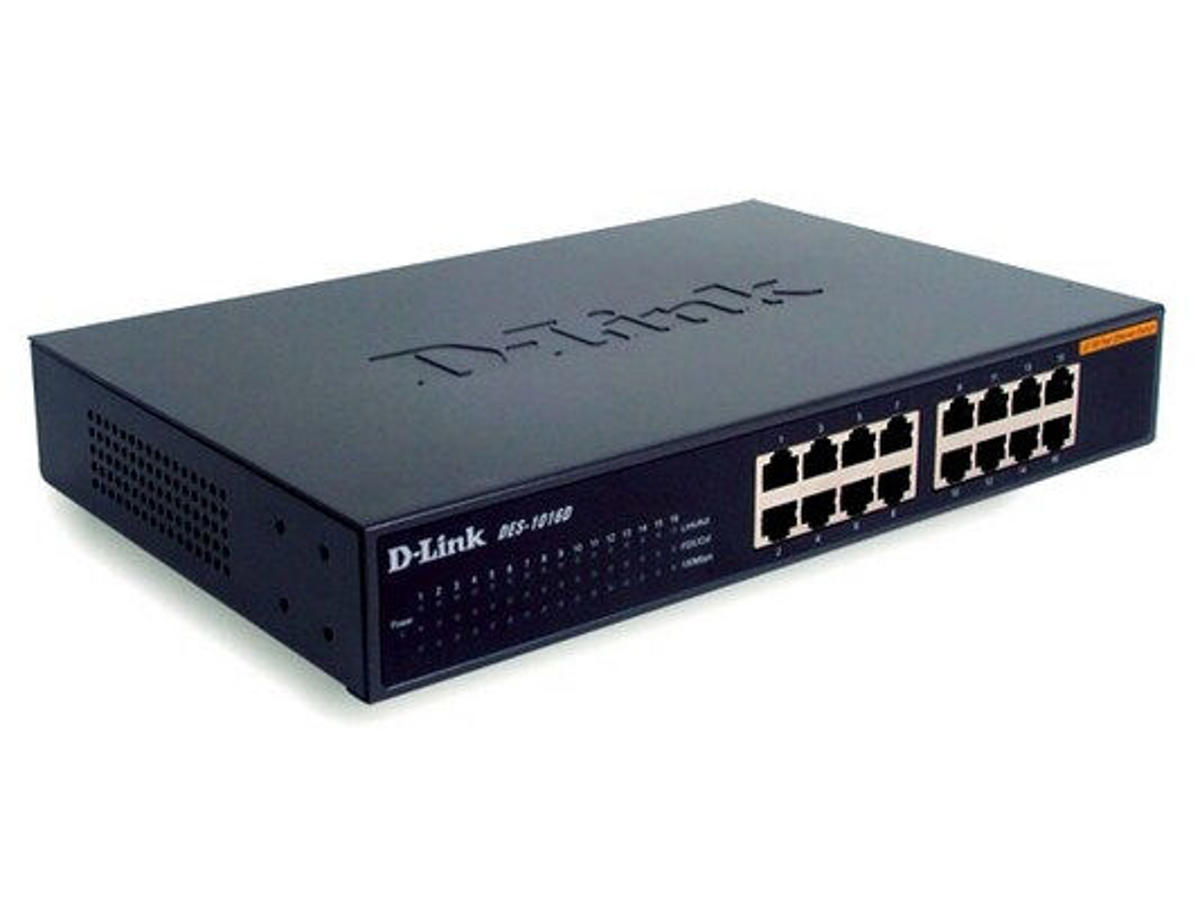

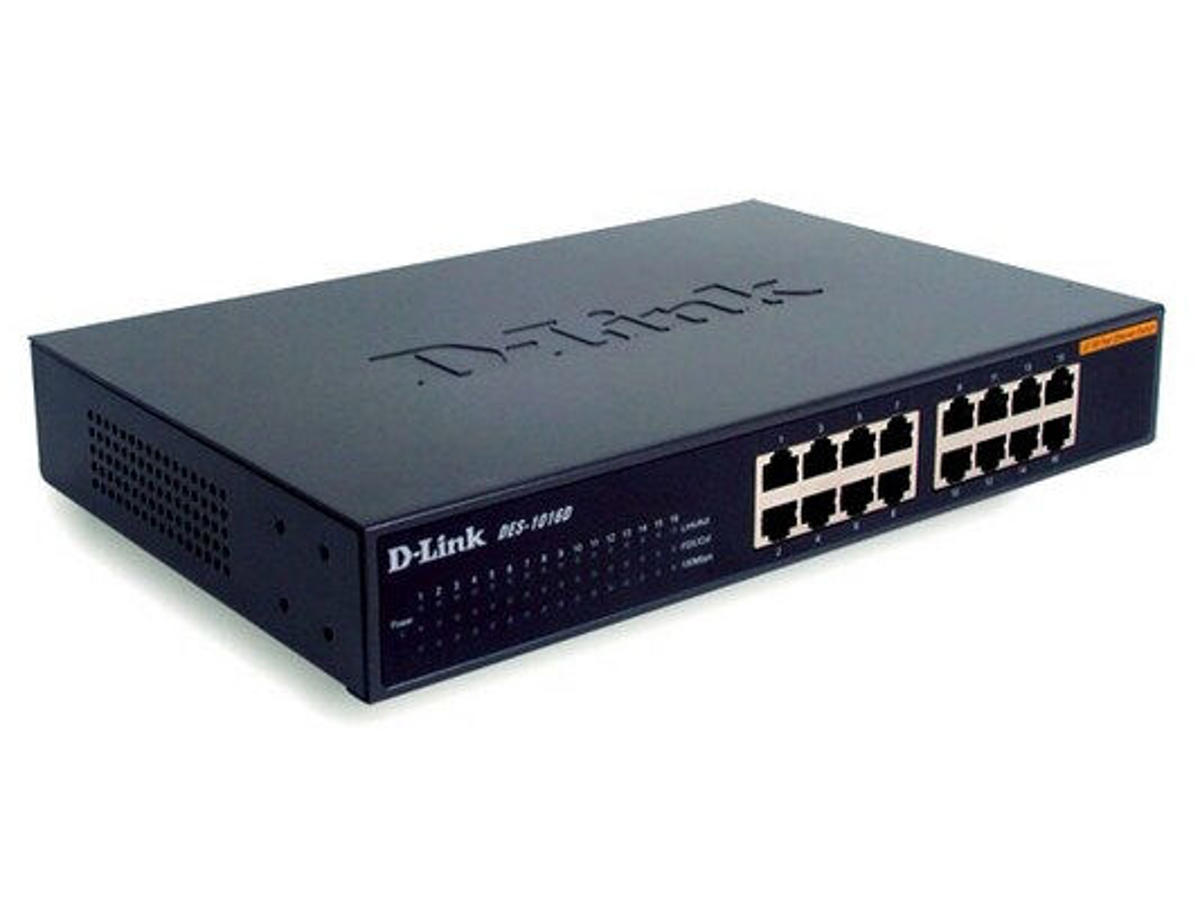

16-Port 10/100Mbps Switch for SOHO/Workgroup
10/100Mbps Unmanaged Switch The DES-1016D is an unmanaged 10/100Mbps switch designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, this device allows users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
16 Auto-sensing 10/100Mbps Ports
The switch comes with 16 10/100Mbps ports, allowing a small workgroup to flexibly integrate to Ethernet and Fast Ethernet. These intelligent ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as between full and half-duplex.
Flow Control for Secure Transmission
All ports support flow control. This function minimizes dropped packets by sending out collision signals when the port's receiving buffer is full.
Auto-negotiation of MDI/MDIX Cross Over
All ports support auto-negotiation of MDI/MDIX cross over. This eliminates the need for cross over cables or uplink ports. Any port can simply plug to a server, a hub or a switch, using the usual straight-through twisted-pair cable.
Plug-and-Play
With 16 plug-and-play ports, the switch is a perfect choice for workgroups to upgrade performance in a client/server environment. The ports can be connected to servers in fullduplex, or hubs in half-duplex.
Direct Connection to Workstations
With low-cost connection per-port, the switch can be set up for direct connection from the PCs. This relieves data bottleneck by giving each workstation a dedicated bandwidth on the network. -
Administrationsfunktioner Switch-type Ikke administreret Porte & Grænseflader Basis omskiftning RJ-45 Ethernet porte, antal 16 Netværk Fuld duplex Ja Dataoverførsel MAC adresselabel 8000 entries Maksimal dataoverførselshastighed 0,1 Gbit/sek. Design LED-indikatorer Strøm Præstation Intern hukommelse 2 MB Power over Ethernet (PoE) Strøm over Ethernet (PoE) Ingen Andre funktioner Dataoverførselshastighed 100 Mbit/s Dimensioner (BxDxH) 324 x 231 x 44,5 mm Forbindelsesteknologi Ledningsført Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Relativ luftfugtighed ved drift (H-H) 5 - 90% Emballeringsdata Pakkebredde 282 mm Pakkedybde 376 mm Pakkehøjde 78 mm Pakkevægt 1,82 kg Tekniske detaljer Forsendelseskassens højde (indvendig) 31,1 cm Forsendelseskasses kassens bredde (indvendig) 39,2 cm Forsendelseskassens længde (indvendig) 42 cm Forsendelsesemballage nettovægt 9,11 kg Produkter pr. forsendelseskasse (indvendig) 5 stk Palle bruttovægt (luft) 256,4 kg Antal papkasser pr. palle (luft) 24 stk Antal pr. palle (luft) 120 stk Pallens bruttolængde 120 cm Pallens bruttobredde 110 cm Pallehøjde (luft) 137,9 cm Palle bruttovægt (hav) 376,1 kg Antal papkasser pr. palle (hav) 36 stk Antal pr. palle (hav) 180 stk Pallehøjde (hav) 2,03 m Forsendelseskassens bruttovægt (indvendig) 9,97 kg Logistik data Harmoniseret systemkode (HS) 85176990
